Sub-Crankshaft Position Sensor

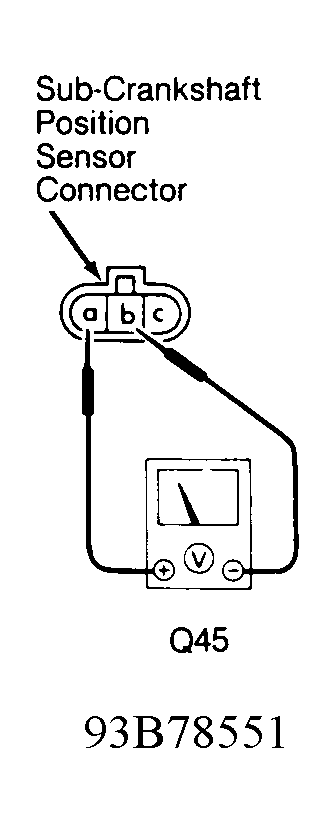

Disconnect harness at sub-crankshaft position sensor. Remove sensor. Connect analog volt-ohmmeter test leads between terminals "a" and "b" of sensor. See Figure . Place voltmeter on low (100 millivolt) AC volt scale. Turn sensor by hand. Voltmeter needle should deflect. If voltmeter does not indicate generated voltage signal, replace sensor.
