DTC 43: Throttle Position Sensor (TPS)
- Check Power Supply

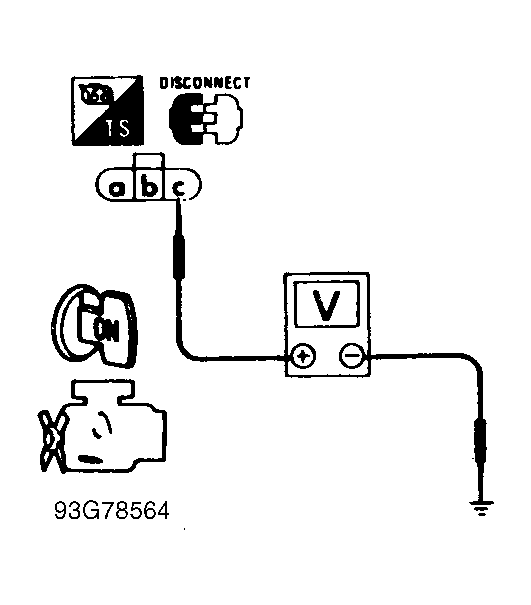

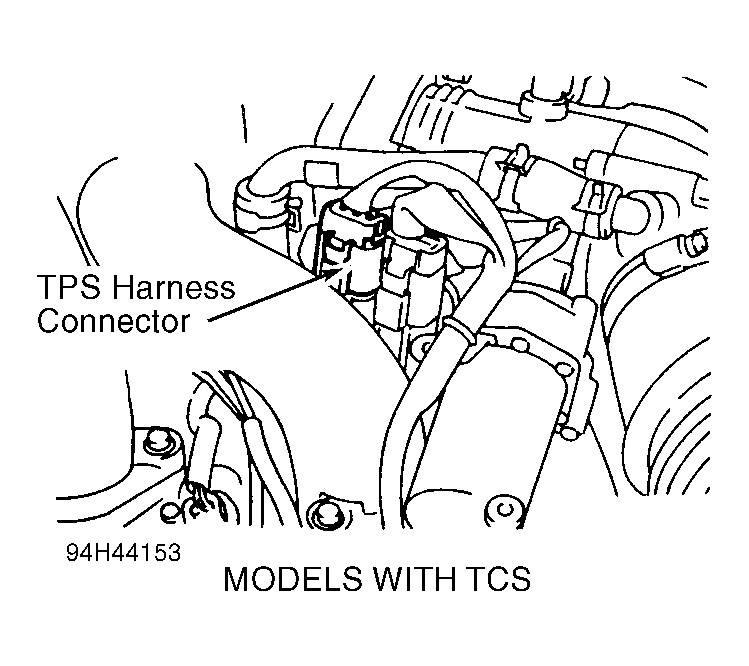

Turn ignition off and disconnect TPS harness connector. Turn ignition on. Measure voltage between TPS connector terminal "c" (Red/White wire) and ground. See Fig 1
, Fig 2
and Fig 3
. If voltage is approximately 5 volts, go to next step. If voltage is not as specified, repair harness or connectors as necessary.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Check Ground Circuit

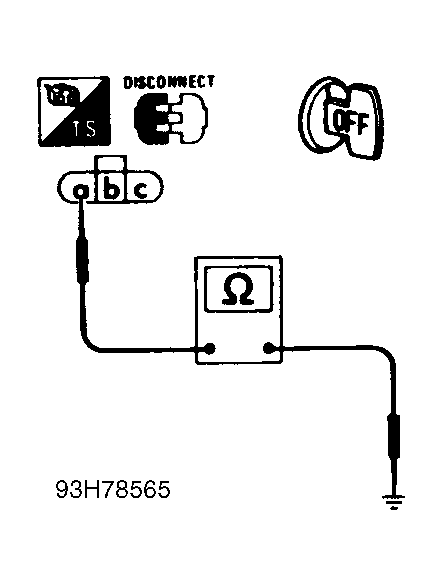

Turn ignition off. Verify harness continuity between TPS connector terminal "a" (Black/Yellow wire) and engine ground. See Fig 4
. If continuity is present, go to next step. If continuity is not present, repair harness or connectors as necessary.
- Check Input Signal Circuit

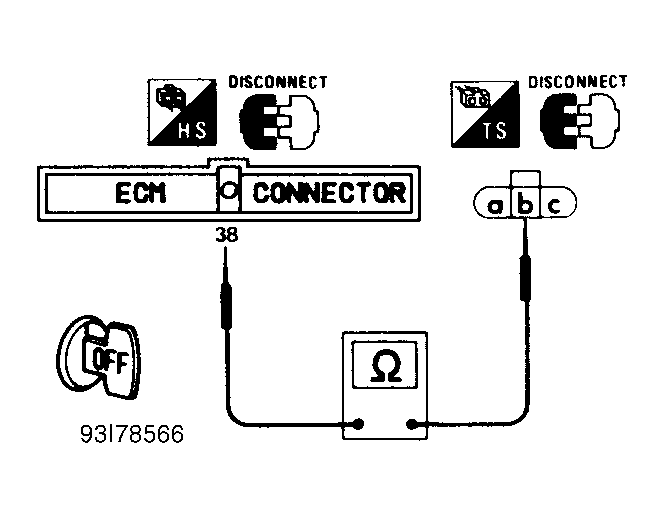

Disconnect ECM harness connector. See Figure
. Verify harness continuity between ECM connector terminal No. 38 and TPS connector terminal "b" (White wire). See Figure

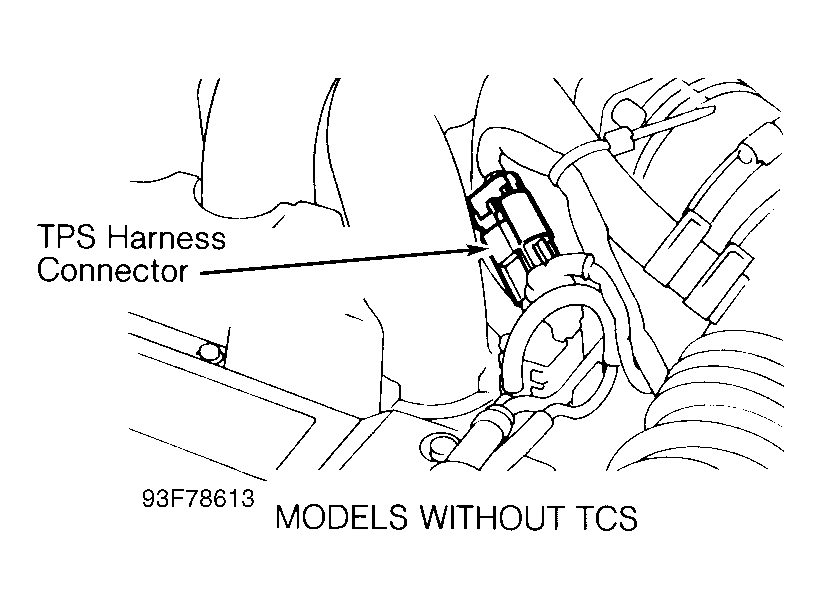

and Fig 5
. If continuity is present, go to next step. If continuity is not present, repair harness or connectors as necessary.
- Check Component
Inspect TPS. See the SYSTEM/COMPONENT TESTS
article. Replace TPS if necessary and perform FINAL CHECK.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
