Front Suspension: Description

Q45 uses independent multi-link front suspension with coil springs and a stabilizer bar. See Fig 1 .

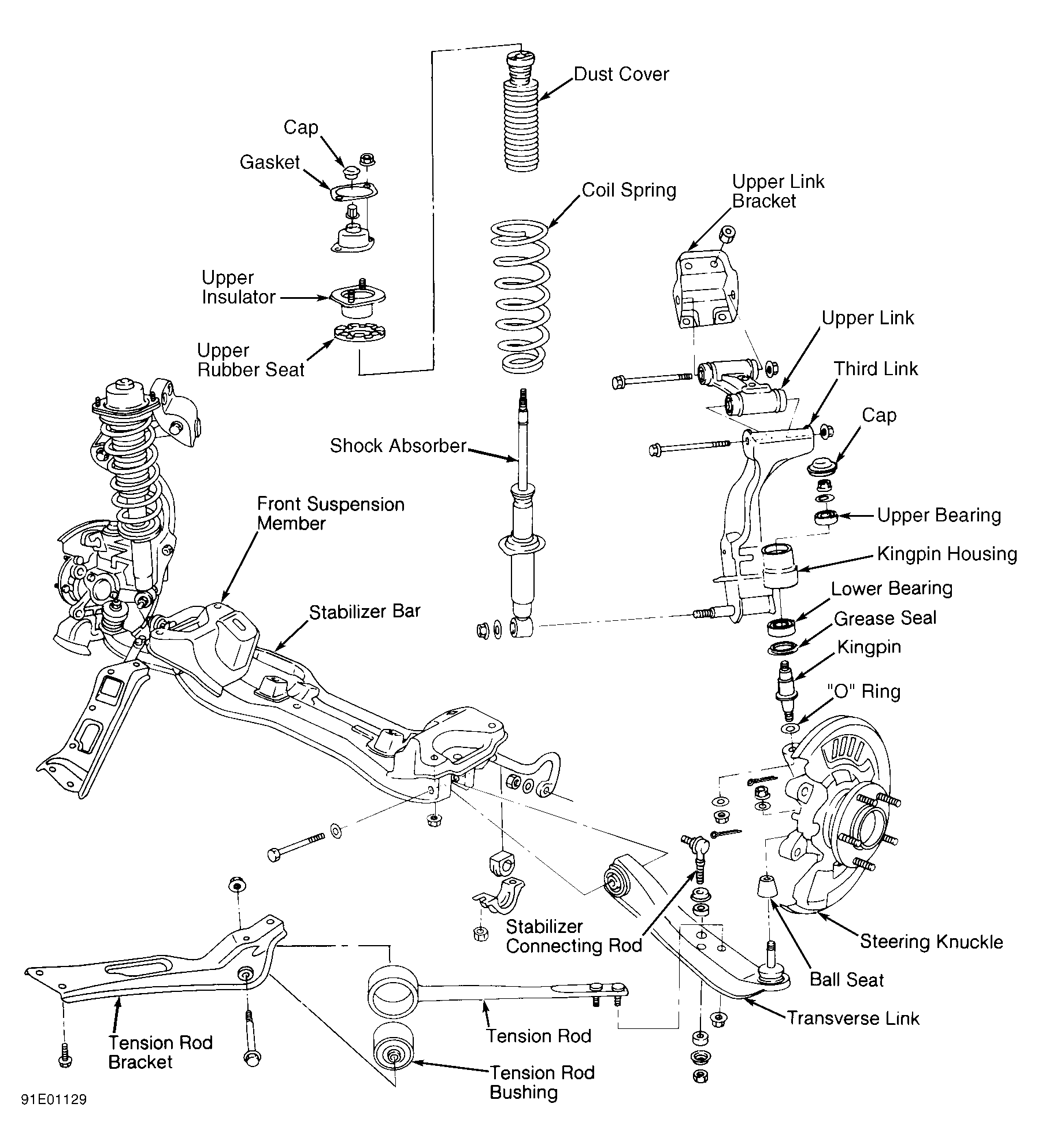

Fig 1: Exploded View Of Front Suspension (Q45)
G91E01129Courtesy of NISSAN MOTOR CO., U.S.A.
