DTC 35: EGR Temperature Sensor
- Check Power Supply

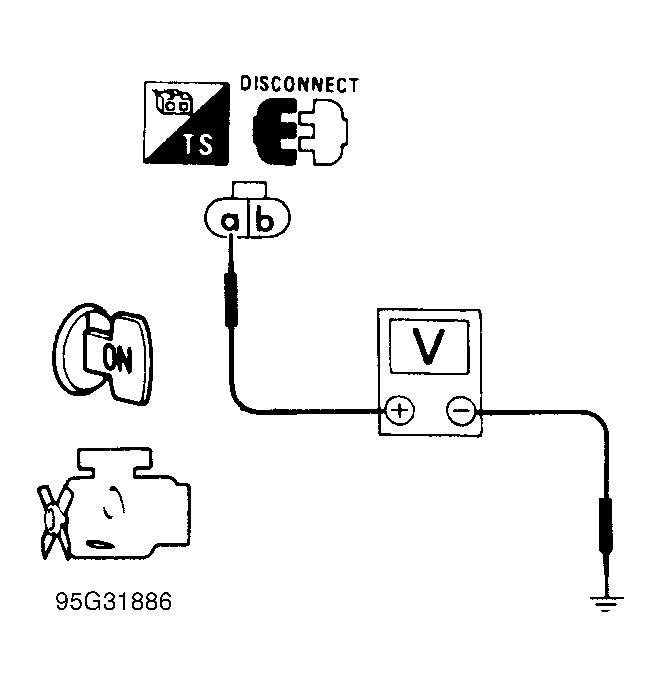

Turn ignition off. Disconnect EGR temperature sensor harness connector. Turn ignition on. Measure voltage between EGR temperature sensor connector terminal "A" (Blue wire) and ground. See Fig 1

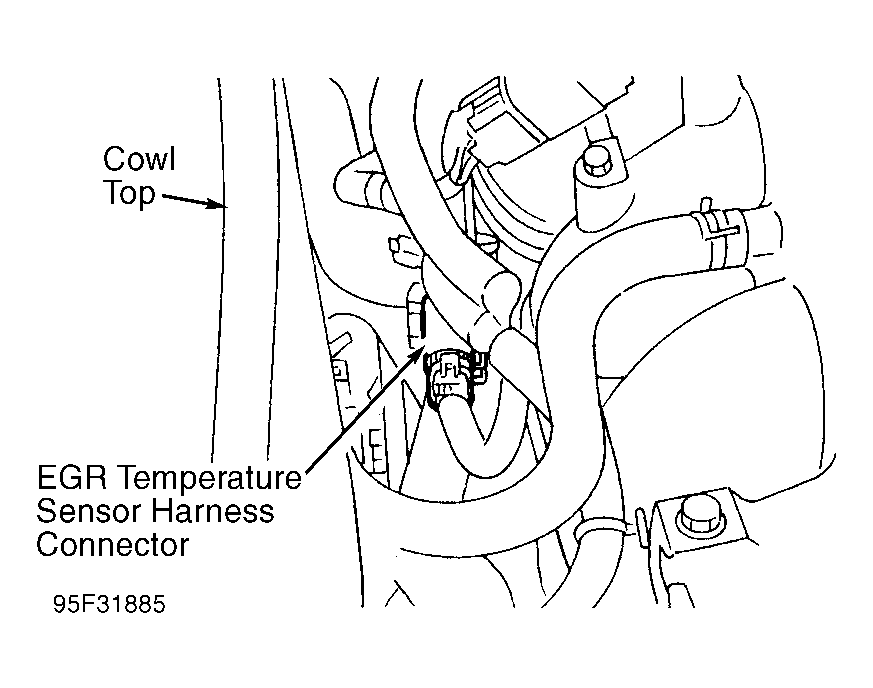

and Fig 2
. If voltage is approximately 5 volts, go to next step. If voltage is not as specified, repair harness or connectors as necessary.
- Check Ground Circuit

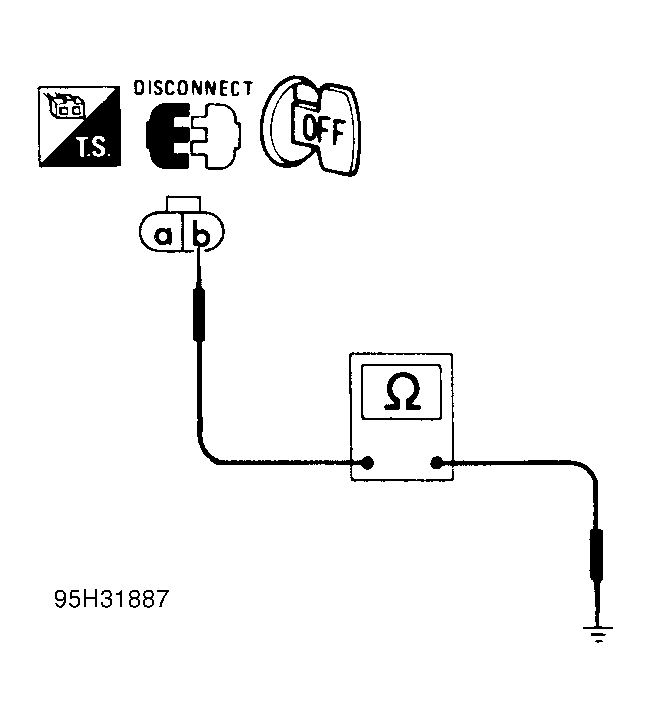

Turn ignition off. Verify harness continuity between EGR temperature sensor connector terminal "B" (Black wire) and engine ground. See Fig 3
. If continuity is present, go to next step. If continuity is not present, repair harness or connectors as necessary.
- Check Component
Inspect EGR temperature sensor. See the article SYSTEM/COMPONENT TESTS
. Replace EGR temperature sensor if necessary and perform FINAL CHECK.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
