DTC 35: EGR Temperature Sensor
- Check Power Supply

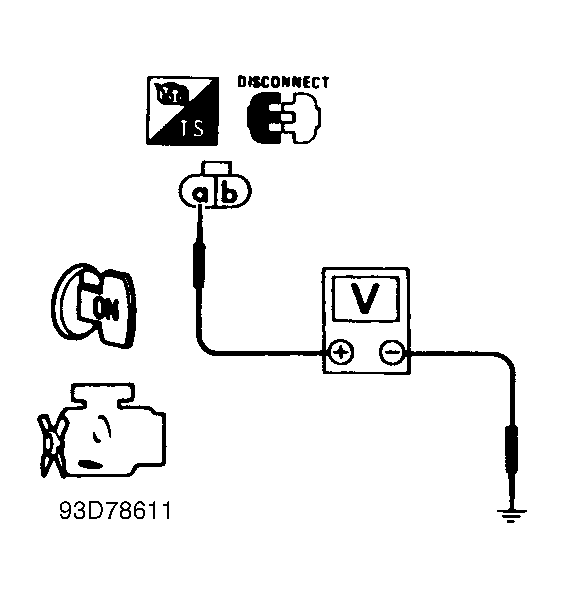

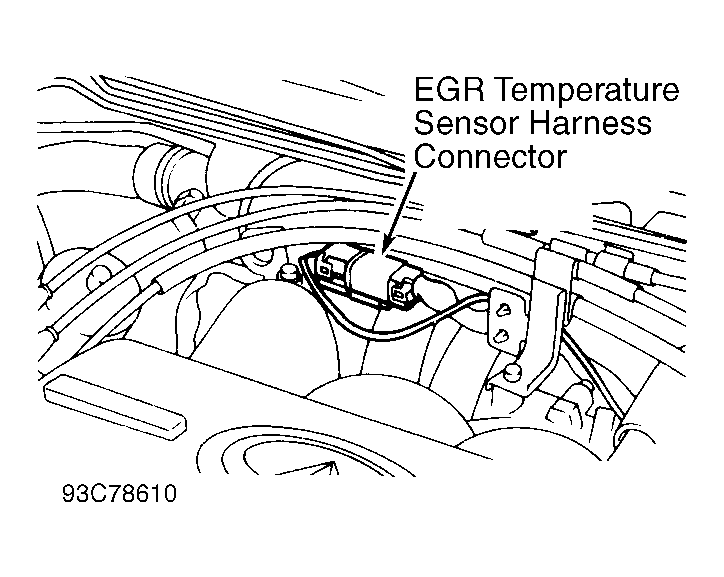

Turn ignition off and disconnect EGR temperature sensor harness connector. Turn ignition on. Measure voltage between EGR temperature sensor connector terminal "a" (Orange/Black wire) and ground. If voltage is approximately 5 volts, go to next step. If voltage is not as specified, repair harness or connectors as necessary. See Fig 1
and Fig 2
.
- Check Ground Circuit

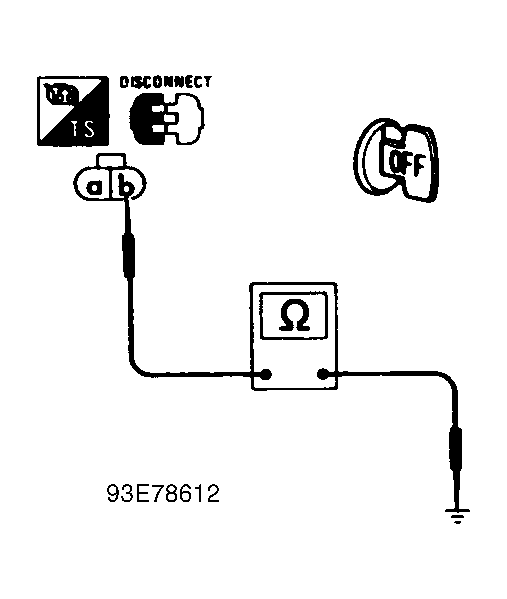

Turn ignition off. Verify harness continuity between EGR temperature sensor connector terminal "b" (Black/Yellow wire, with TCS; Black wire, without TCS) and engine ground. See Fig 3
. If continuity is present, go to next step. If continuity is not present, repair harness or connectors as necessary.
- Check Component
Inspect EGR temperature sensor. See I - SYSTEM/COMPONENT TESTS
article. Replace EGR temperature sensor if necessary and perform FINAL CHECK
.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
