ECM Harness Connector
NOTE:
To locate ECM and identify ECM connector terminals, see
Fig 1
and
Fig 2
.
Fig 1: Locating ECM Harness Connector (Q45)
Courtesy of NISSAN MOTOR CO., U.S.A.

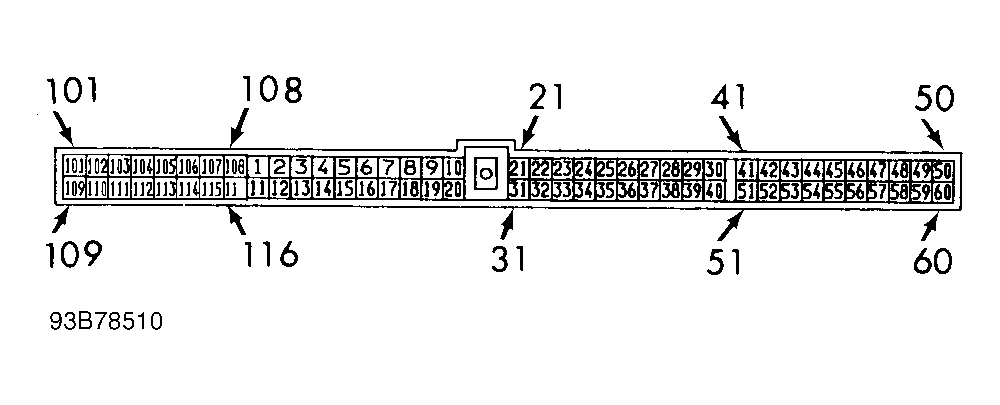

Fig 2: ECM Harness Connector Terminals (Q45)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
