Entering System Diagnostics

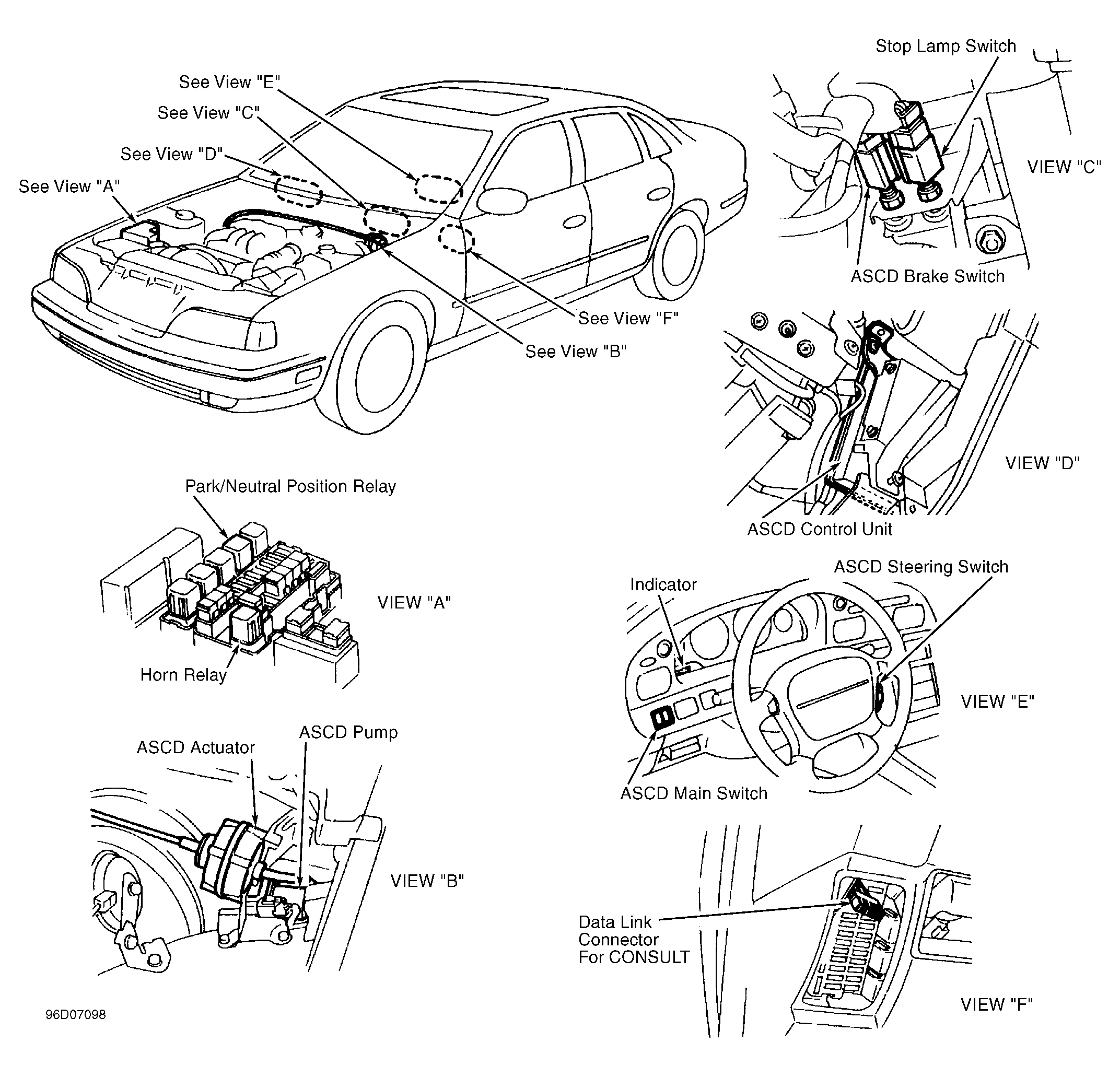

Turn ignition off. Connect Nissan CONSULT to data link connector for CONSULT. See Figure . Turn ignition on. Turn on ASCD main switch. Touch START on CONSULT display. Touch ASCD to enter diagnostic modes. SELECT DIAG MODE menu should appear on CONSULT, indicating successful system diagnostics entry.
