Self-Diagnostic Indicator Lights

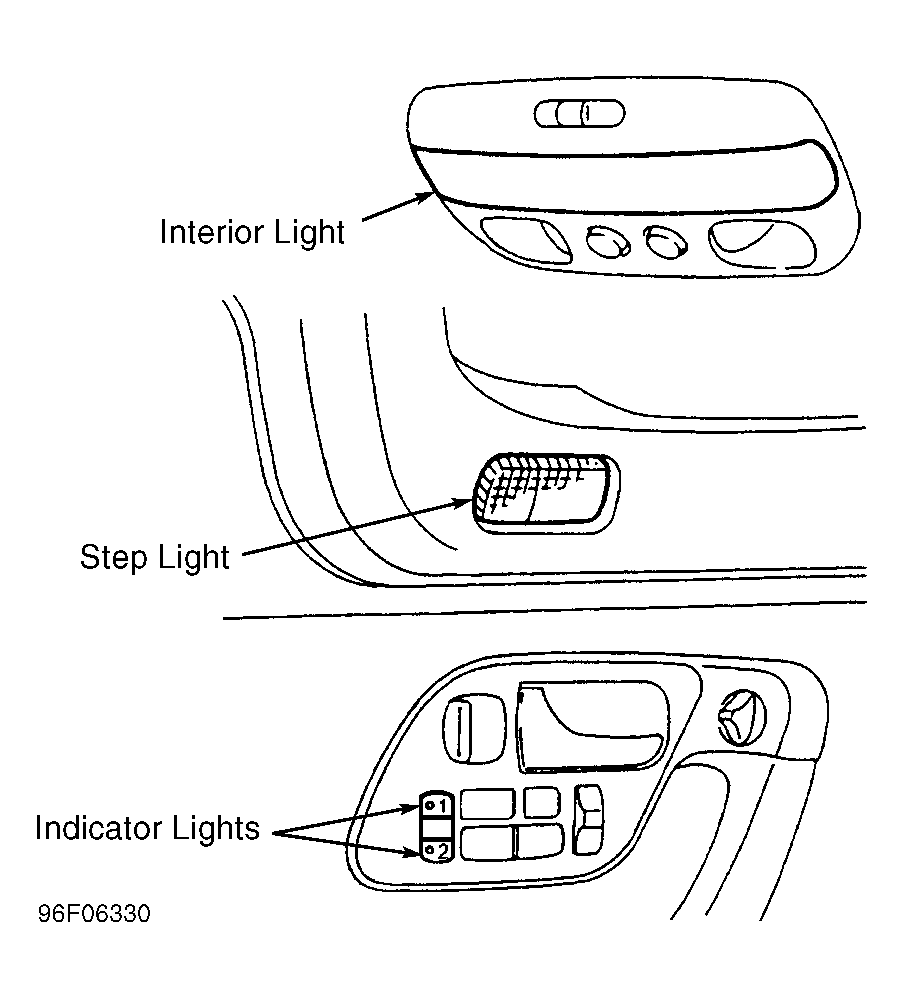

Interior light, step lights (all seats) and automatic drive positioner indicator lights are used in on-board diagnostics to indicate system malfunctions. See Fig 1 . Depending on the on-board diagnostic mode, self-diagnostic indicator light(s) will either flash trouble codes or display some specific patterns to indicate the malfunctioning item.
