KEYLESS ENTRY REMOTE SWITCH ASSY. - REPROGRAMMING

TECHNICAL SERVICE BULLETIN

Reference Number(s): ITB95-051, Date of Issue: September 20, 1995

KEYLESS ENTRY REMOTE SWITCH ASSEMBLY - BATTERY REPLACEMENT & REPROGRAMMING PROCEDURE

Model(s): All Infiniti G20 (P10);

All Infiniti I30 (CA32);

All Infiniti J30 (JY32);

All Infiniti Q45 (G50)

Classification: EL95-003

Section: Electrical System

Bulletin No.: ITB95-051

Date: September 20, 1995

SERVICE INFORMATION

If an Infiniti remote switch assembly (remote controller) fails to operate, or operates intermittently, use the following procedures to bring it back into proper operation.

NOTE: These procedures are for all applied vehicles except where noted.

SERVICE PROCEDURE

REMOTE CONTROLLER BATTERY CHECK & REPLACEMENT

Remove the remote controller battery lid with a suitable tool, a quarter works best. See Fig 1 .
CAUTION: DO NOT use a screwdriver or a knife. These tools may damage the cover.
Remove the remote controller battery(s) from the lid. See Fig 2 .
Check the remote controller terminals. Clean and repair as necessary. See Fig 3 .
Use a high impedance volt-ohmmeter and a 300 ohm resistor in parallel to check the voltage of the remote controller battery. See Fig 4 . If 2.5 volts or greater, the battery is 0.K. If less than 2.5 volts, replace the battery. (300 ohm resistors are available from local electronics suppliers, e.g. Radio Shack.)
NOTE: If you DO NOT have a 300 ohm resistor, install a new battery and test controller operation.
Install the battery onto the lid properly. See Fig 5 .
Install the lid with the battery and rubber ring onto the controller. Turn the lid to the close position. See Fig 6 .
NOTE: Make sure the lid cover mark and the controller mark are aligned properly. See Fig 6 . If not, the plus terminals in the controller may be deformed. The battery will discharge quickly if the plus and minus terminals are shorted. DO NOT deform the rubber ring.
Press the buttons several times near the vehicle to check their operation.

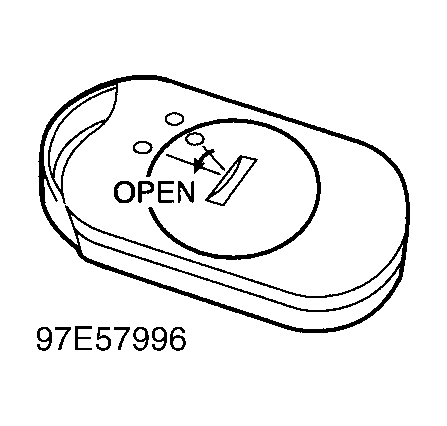

Fig 1: Remote Controller Battery - Open

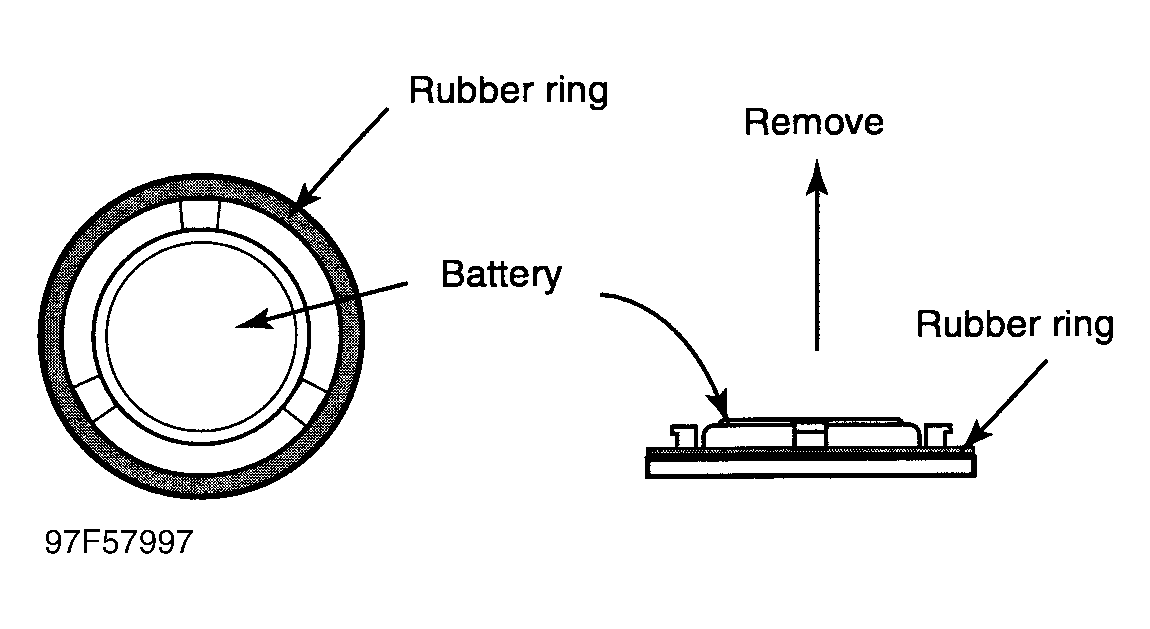

Fig 2: Remote Controller Battery - Rubber Rings & Battery

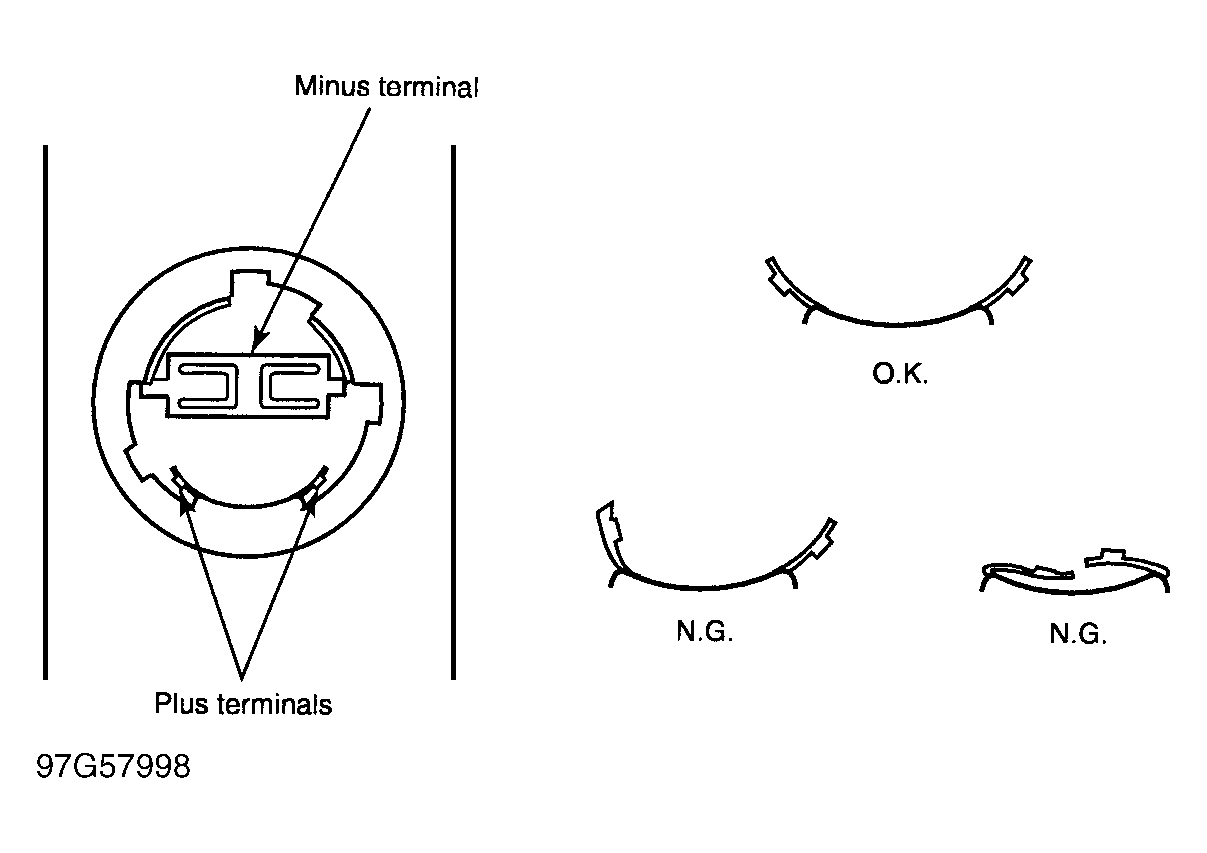

Fig 3: Remote Controller Terminals

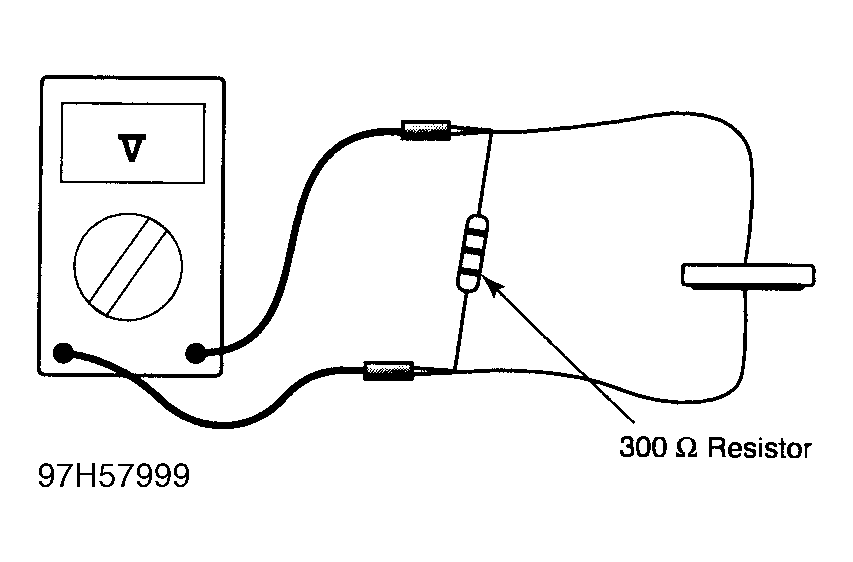

Fig 4: Remote Controller Battery - Check Voltage

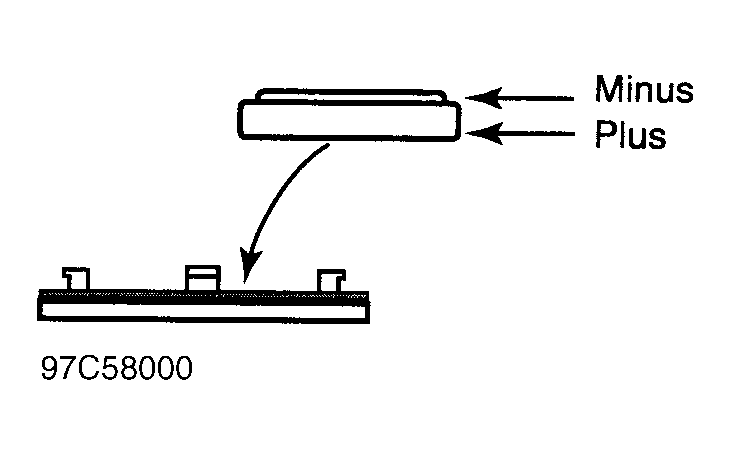

Fig 5: Battery - Install Properly, Minus/Plus

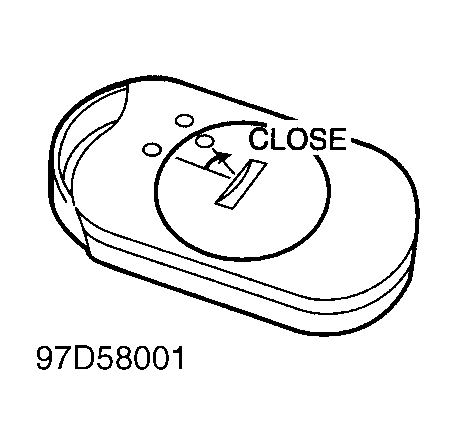

Fig 6: Remote Controller Battery - Close

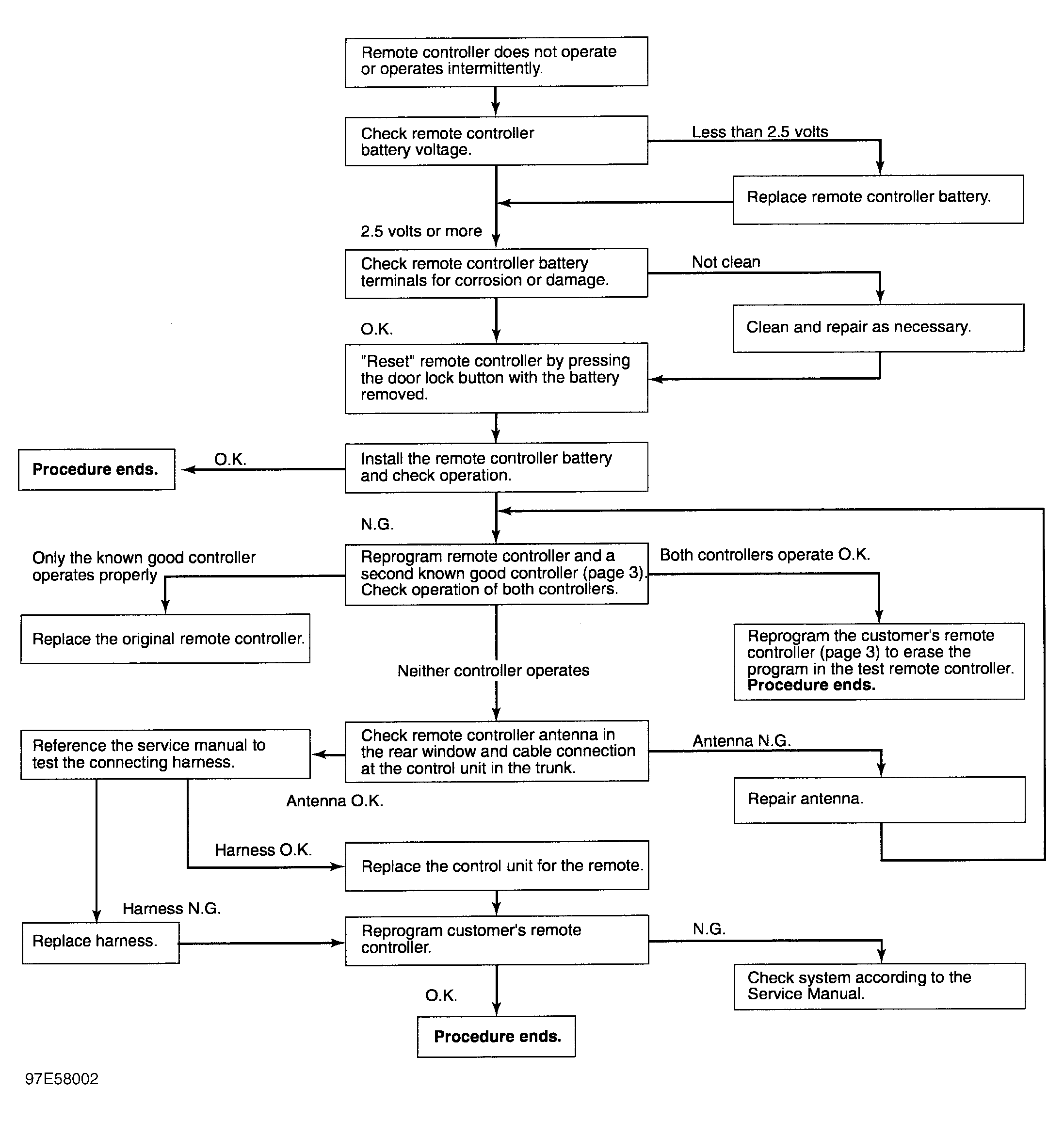

Fig 7: Gen. Keyless Entry Remote Controller Troubleshoot Procedure

REMOTE CONTROLLER BATTERY PART NUMBER INFORMATION

Battery Type	Part Number
Aftermarket 3VDC Battery (e.g., Sanyo, Eveready, Radio Shack)	CR2025

NOTE: Under normal circumstances, it IS NOT necessary to "re-program" the remote controller when a battery is replaced.

REMOTE CONTROLLER "RE-PROGRAMMING" PROCEDURE

This procedure is used when adding an extra remote controller to the vehicle; when or when replacing the remote controller. The procedure may also be used to "re-program" a remote controller that fails to function properly after battery replacement.

If "re-programming" a remote controller that fails to function properly after battery replacement, restore the remote controller "reset" function as follows:

Remove the remote controller battery.
Press the door lock button on the remote controller one time.
Re-install the remote controller battery.

TO PROGRAM OR "RE-PROGRAM" REMOTE CONTROLLER

NOTE: If the customer has more than one remote controller, all remove controllers must be reprogrammed at the same time.

NOTE: I30 ONLY Make sure the extended storage fuse (#40) is installed.

G20, J30, Q45 only: Open the vehicle trunk.
All models, including I30: From inside the vehicle, close and lock all vehicle doors.
Insert and remove the ignition key more than six times within 10 seconds. This will erase any original ID codes from the control unit in the trunk. (The hazard warning lamps should flash twice in the I30 model only).
Enter new vehicle code as follows:
NOTE: G20, J30, Q45 MODELS
- Unlock and lock the driver's door inside lock lever one time.
- Press the door lock button on the remote controller one time. This will enter the vehicle ID code into the remove controller.
  NOTE: I30 MODEL
- Turn the ignition key to the "A/C" position.
- Press the door lock button on the remote controller one time. (The hazard warning lamps will flash twice again.) This enters the vehicle ID code into the remove controller.
  NOTE: TO PROGRAM ADDITIONAL REMOVE CONTROLLERS: (Continued from previous instructions, steps 1-4.)
Manually unlock the driver's door, then lock again with the door lock knob.
Press the door lock button on the additional remote controller once.
Turn the ignition key to the "OFF" position (I30) and remove the key to test remove operation.
Complete ID enter mode by operating the driver's side door.

A maximum of four remote controllers can be programmed to the vehicle. Any attempt to enter more will be ignored.

In all cases, test the remote controllers for correct operation with the ignition key "OFF' and removed.

NOTE: The "beep" function in some Infiniti keyless remote controllers was deleted during the period March, 1994 to May, 1994, depending upon the model. After June 1, 1994 production, no Infiniti remote controllers have a "beep". If a customer requests a remote that "beeps" when the buttons are pressed, the replacement remove controller SHOULD NOT be charged to Warranty.

GENERAL KEYLESS ENTRY REMOTE CONTROLLER TROUBLESHOOTING PROCEDURE

See Fig 7 for General Keyless Entry Remote Controller Troubleshooting Procedure, (flow chart).

CLAIMS INFORMATION

Remote controller replacement due to customer abuse, purse/pocket damage and/or loss is not covered by Warranty. The replacement of the remote controller battery is also not covered by Warranty. These are "customer pay" situations.
