Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

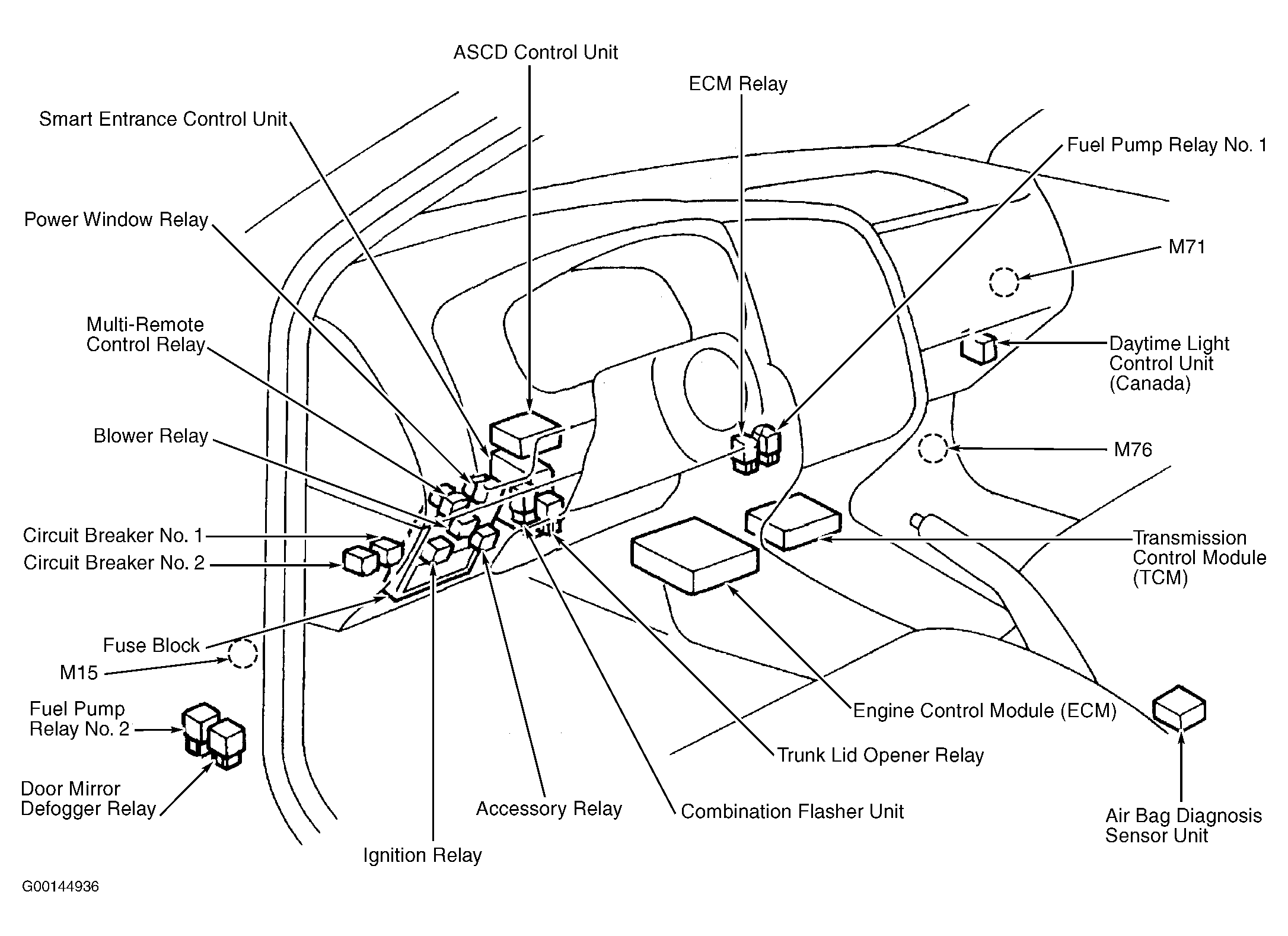

Circuit Breaker No. 1 Behind dash, left of fuse block. See Figure .
Circuit Breaker No. 2 Behind dash, left of fuse block. See Figure .
Fuse Block Behind dash, left of steering column. See Figure .

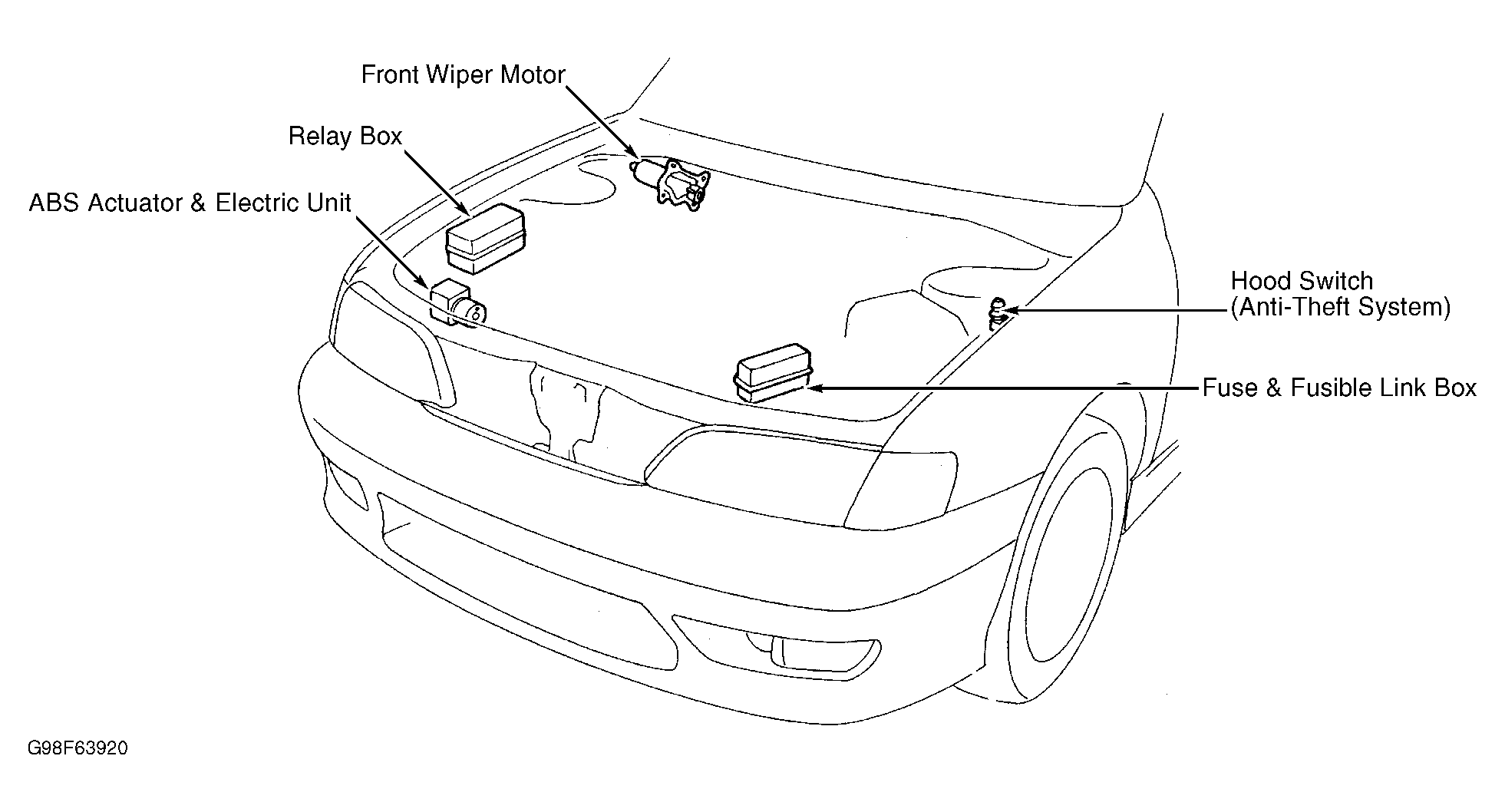

Fuse & Fusible Link Box Left front of engine compartment, next to battery. See Figure .
Relay Box Right side of engine compartment. See Figure .
