Door Unlock Sensor

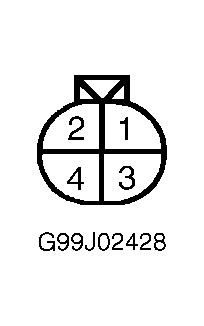

Disconnect door unlock sensor 4-pin connector. With actuator in unlocked position, check for continuity between door unlock sensor terminals No. 2 and 4. See Fig 1 . If continuity is not present, replace door unlock sensor.
Disconnect door unlock sensor 4-pin connector. With actuator in unlocked position, check for continuity between door unlock sensor terminals No. 2 and 4. See Fig 1 . If continuity is not present, replace door unlock sensor.
