On Board Refueling Vapor Recovery (ORVR) System: Notes

For system description, see Fig 1.

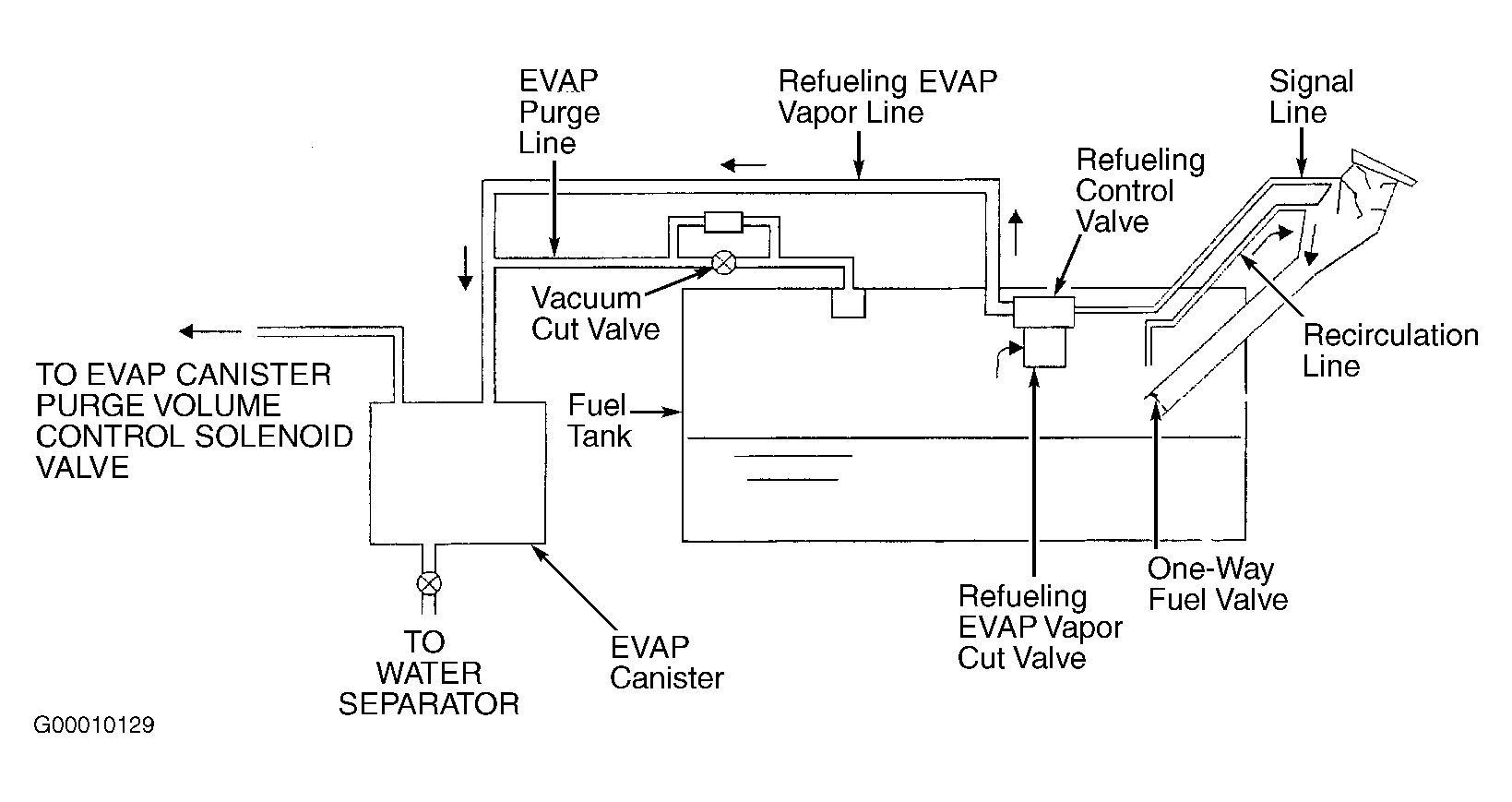

Fig 1: Identifying ORVR System
G00010129Courtesy of NISSAN MOTOR CO., U.S.A.
