Data Link Connector: Testing and Inspection

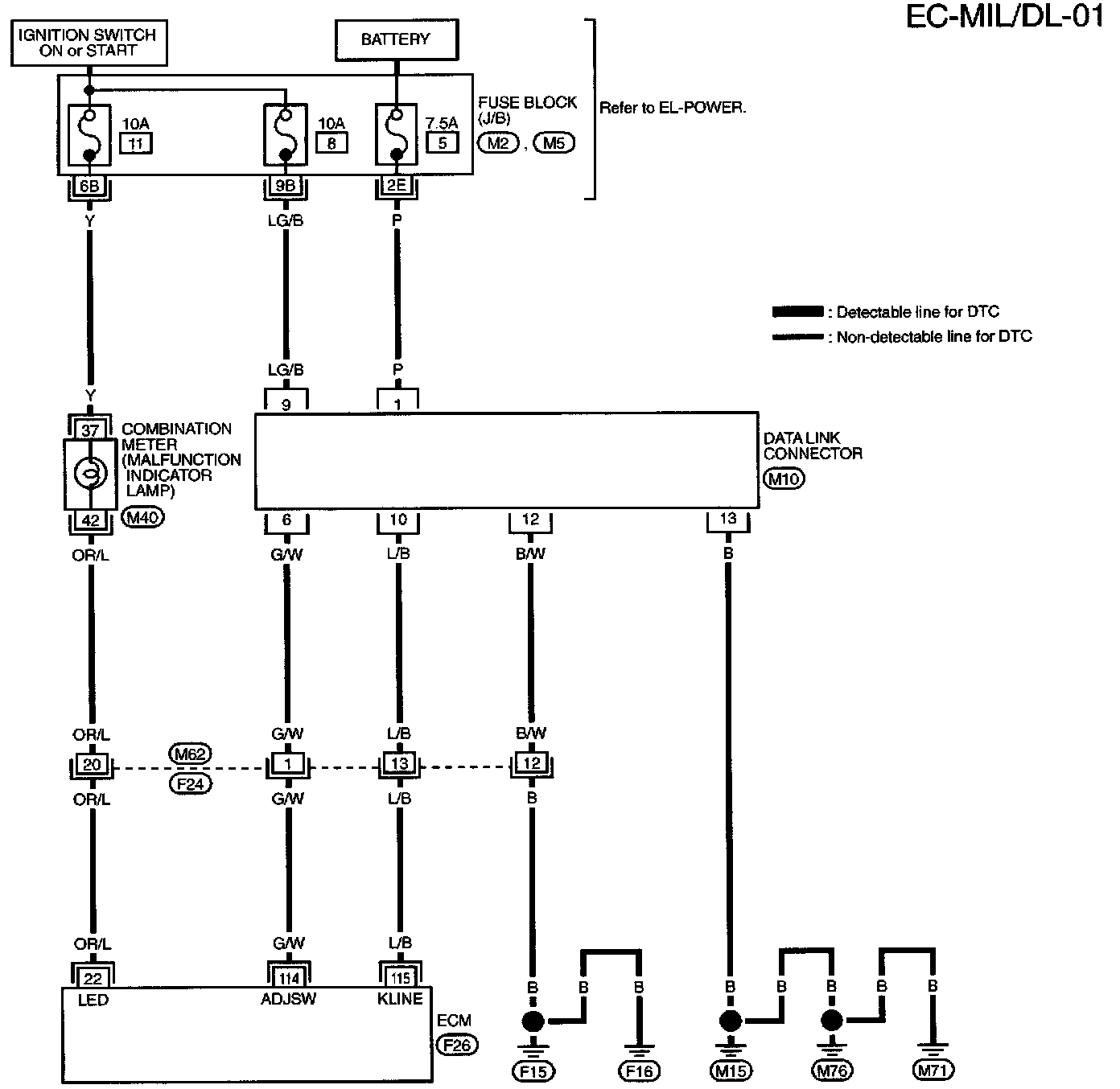

EC-MIL/DL-01:




EC-MIL/DL-01 - Connector Views:




WIRING DIAGRAM

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:
