Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

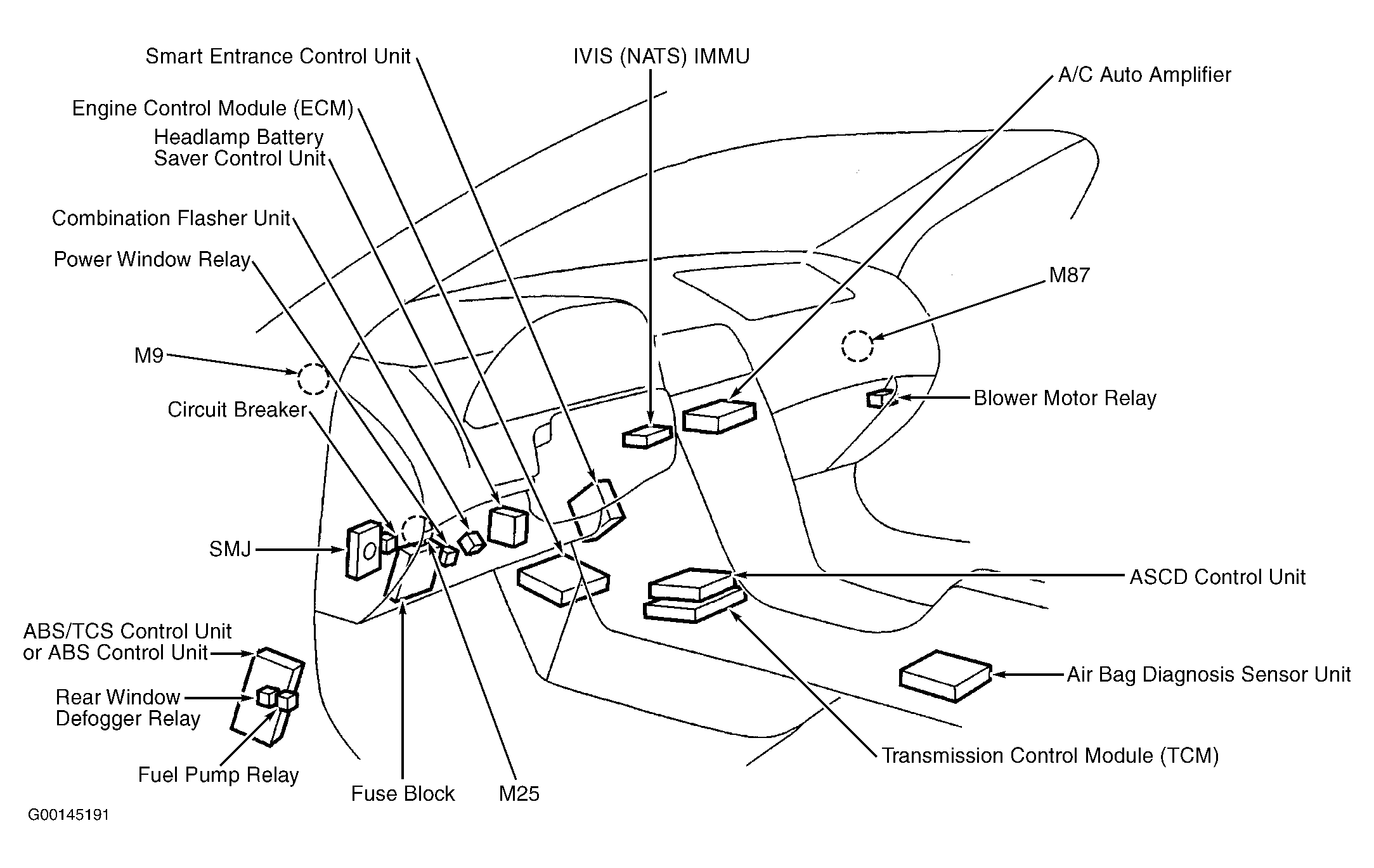

Circuit Breaker Behind left side of dash. See Figure .
Fuse Block Behind left side of dash. See Figure .

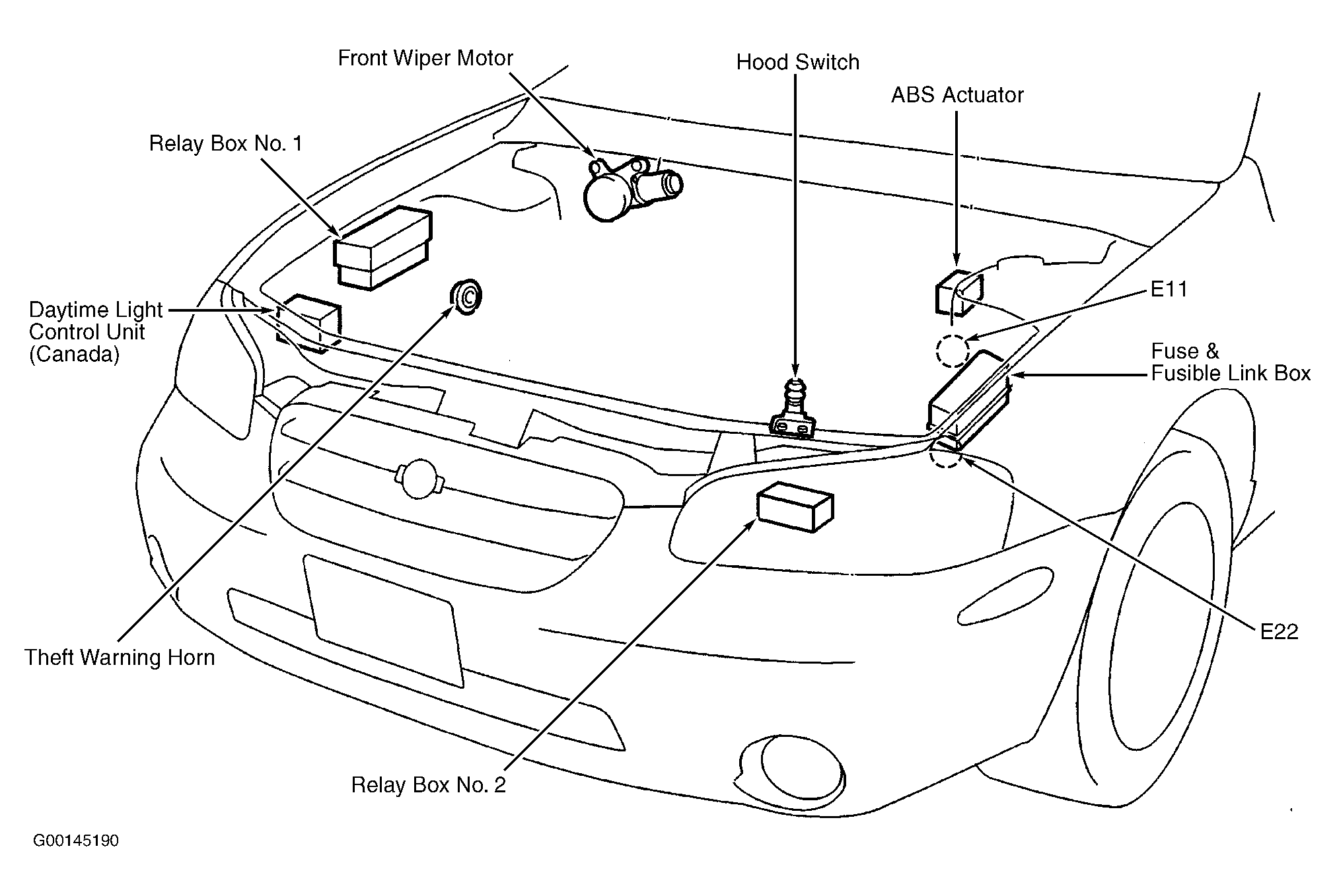

Fuse & Fusible Link Box At left side of engine compartment. See Figure .
Relay Box No. 1 At right side of engine compartment. See Figure .
Relay Box No. 2 At left front corner of engine compartment. See Figure .
