Pin Voltage Tests

NOTE: Unless stated otherwise in testing procedures, perform all voltage tests using a Digital Volt-Ohmmeter (DVOM) with a minimum 10-megohm input impedance. Voltage readings may vary slightly due to battery condition or charging rate.

NOTE: On G20, voltage specifications are measured between each terminal and ECM terminal No. 48 (ECM ground).

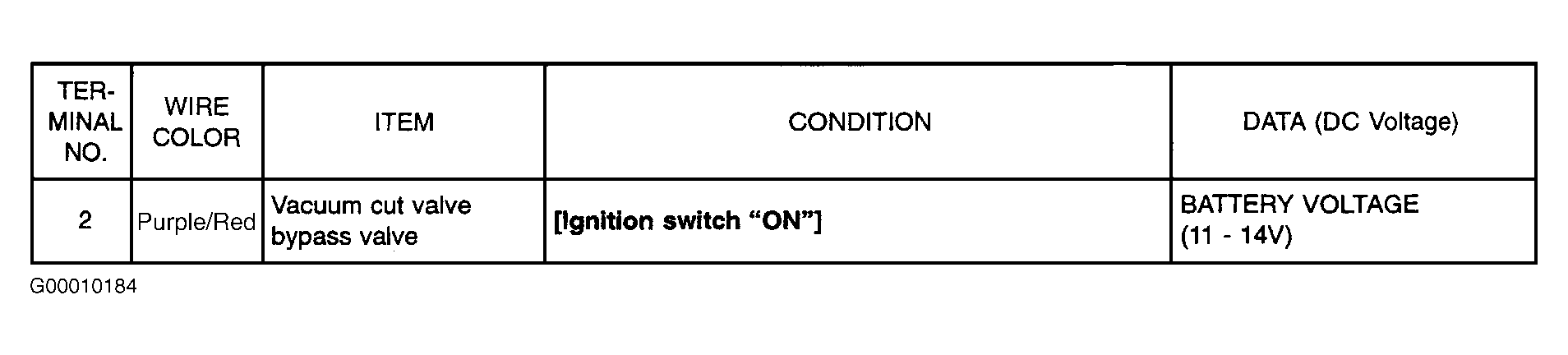

Fig 1: Pin Voltage Chart (G20 - 1 Of 8)

G00010184

Courtesy of NISSAN MOTOR CO., U.S.A.

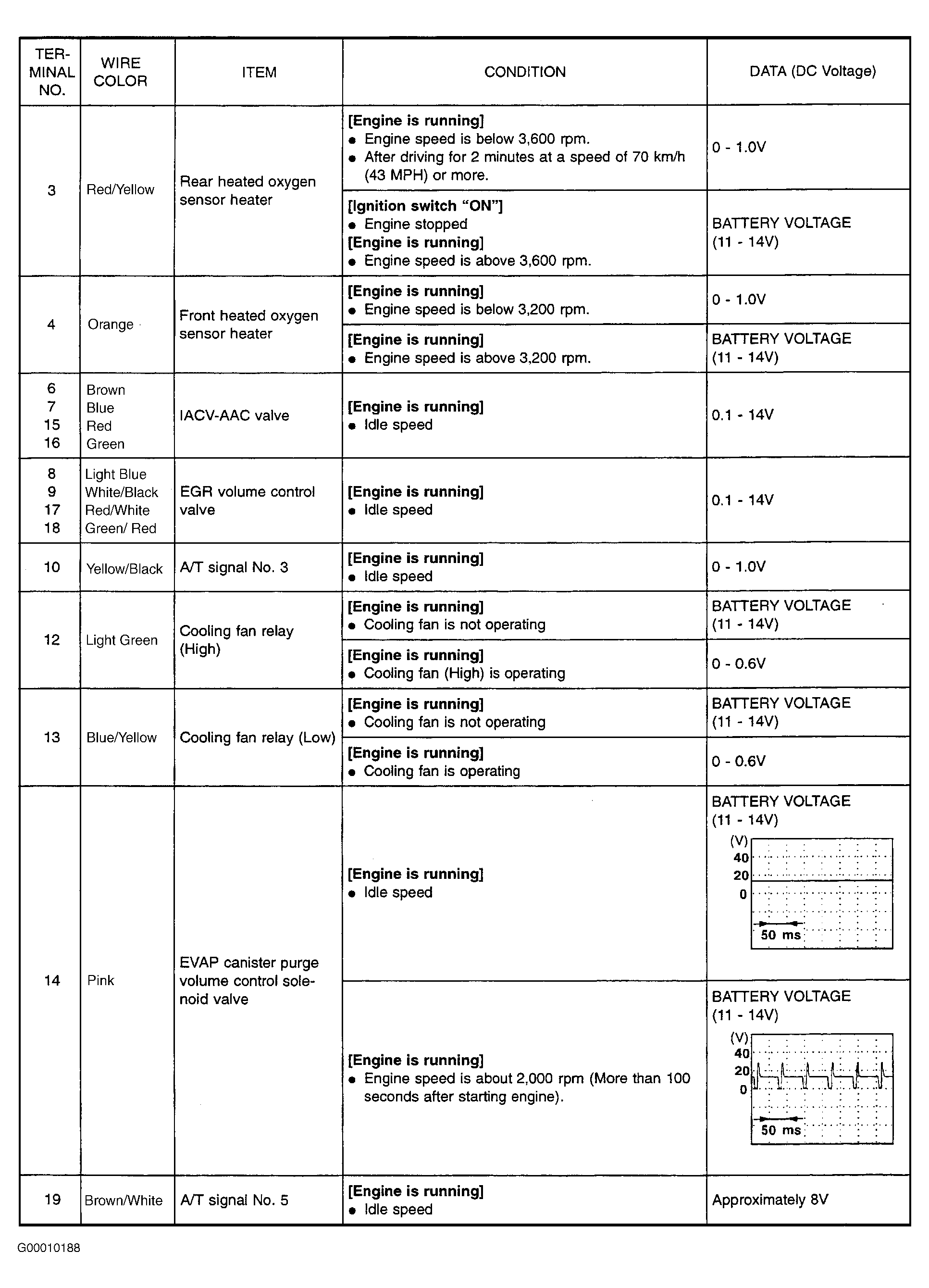

Fig 2: Pin Voltage Chart (G20 - 2 Of 8)

G00010188

Courtesy of NISSAN MOTOR CO., U.S.A.

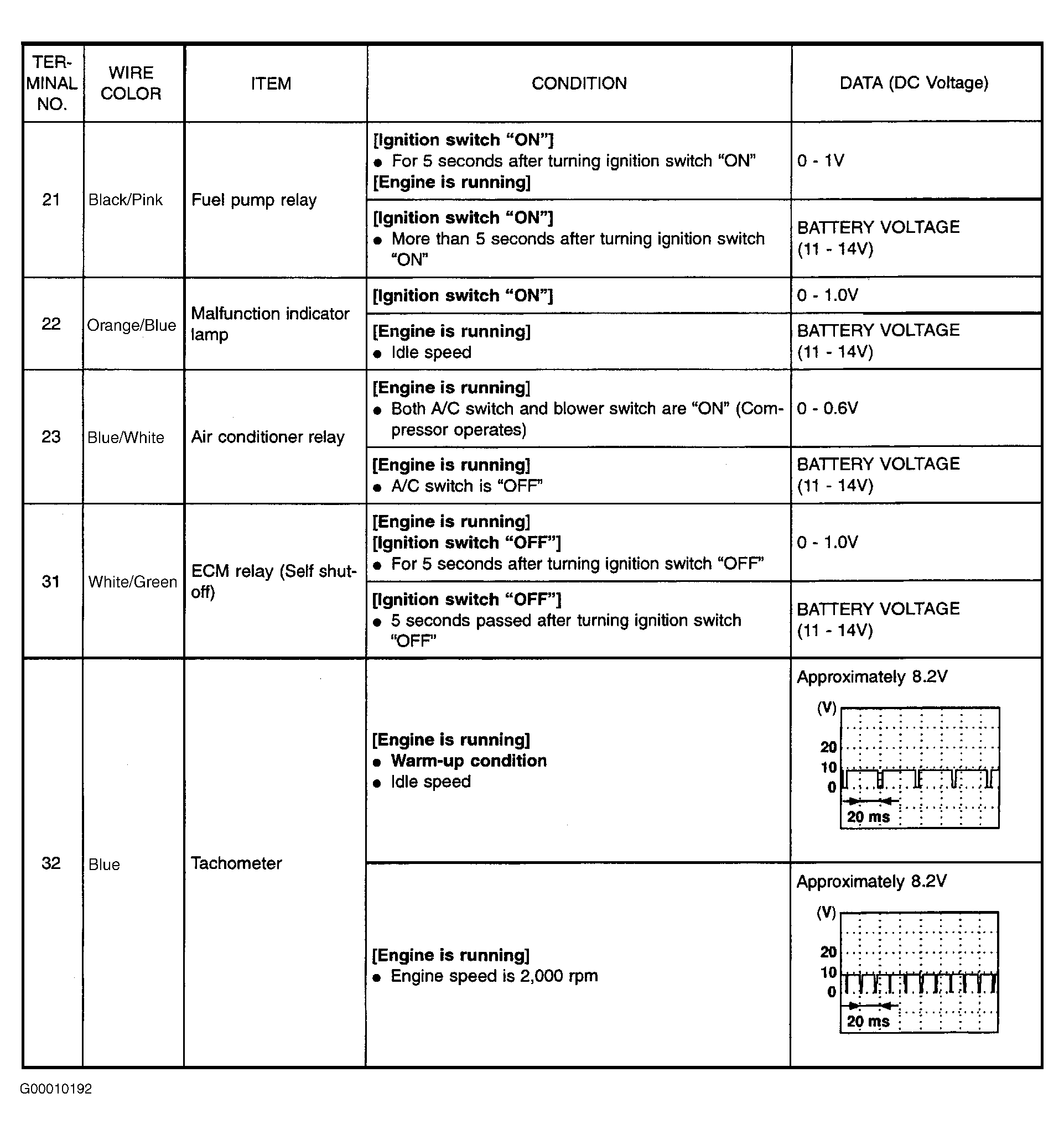

Fig 3: Pin Voltage Chart (G20 - 3 Of 8)

G00010192

Courtesy of NISSAN MOTOR CO., U.S.A.

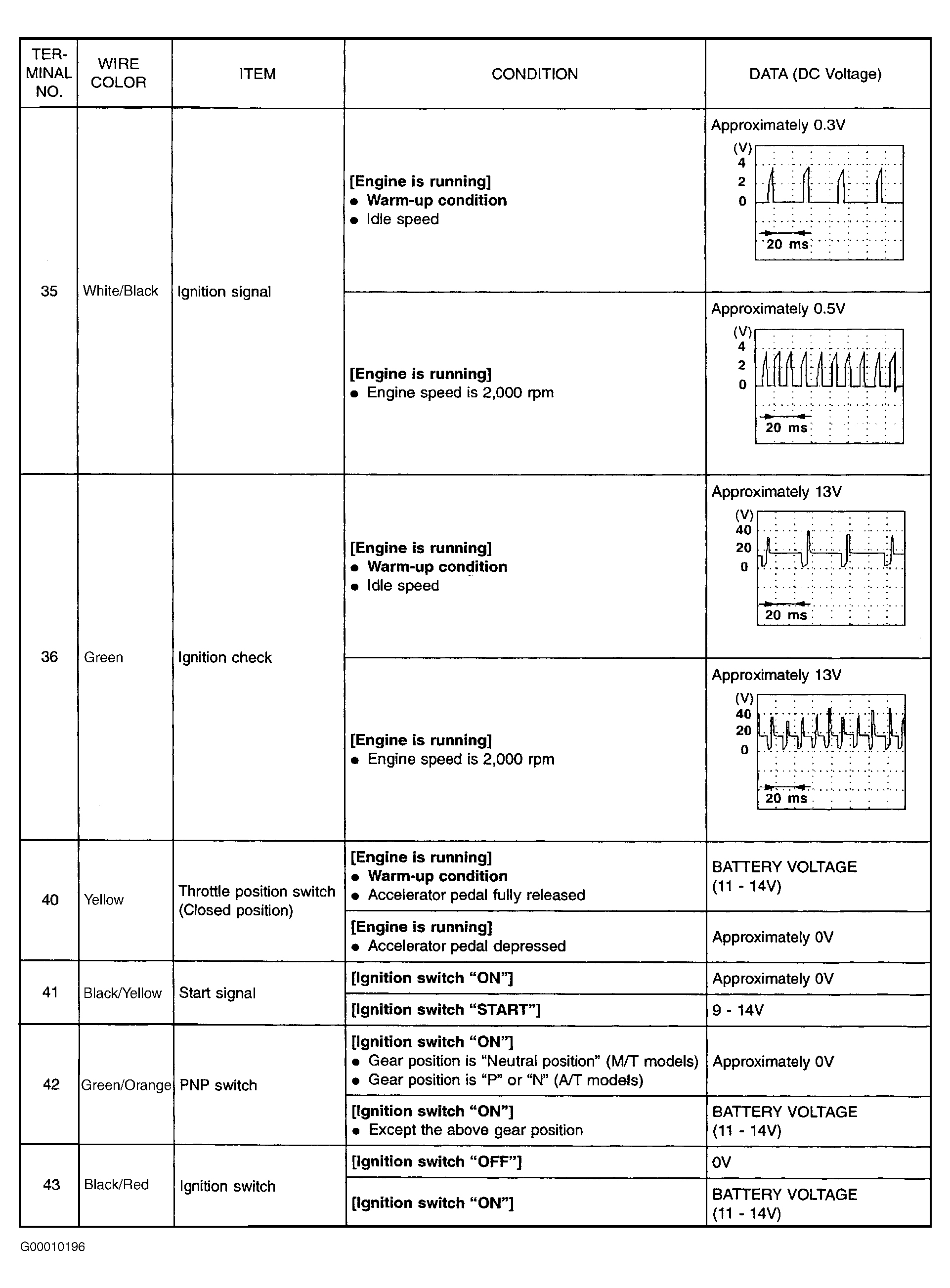

Fig 4: Pin Voltage Chart (G20 - 4 Of 8)

G00010196

Courtesy of NISSAN MOTOR CO., U.S.A.

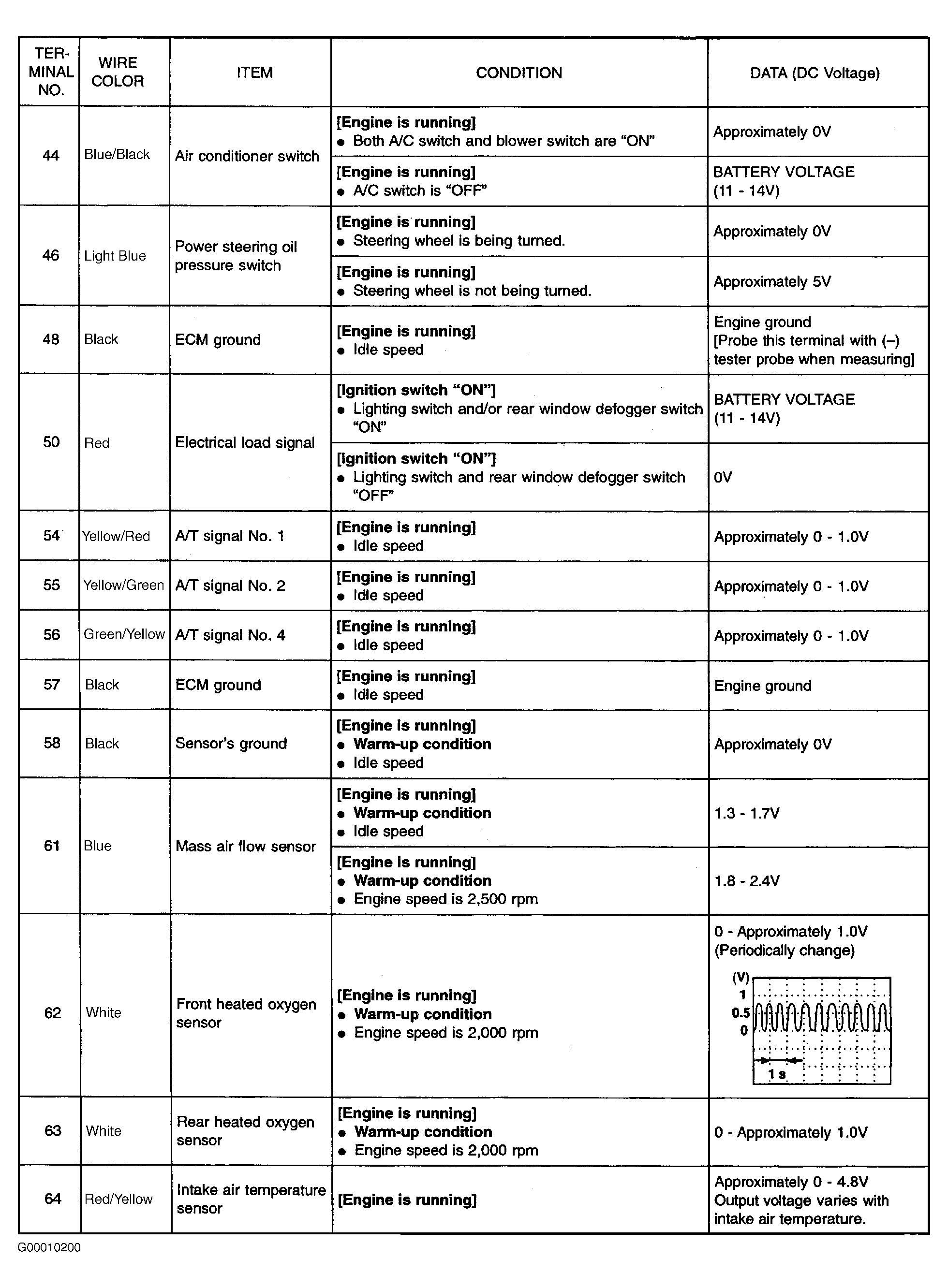

Fig 5: Pin Voltage Chart (G20 - 5 Of 8)

G00010200

Courtesy of NISSAN MOTOR CO., U.S.A.

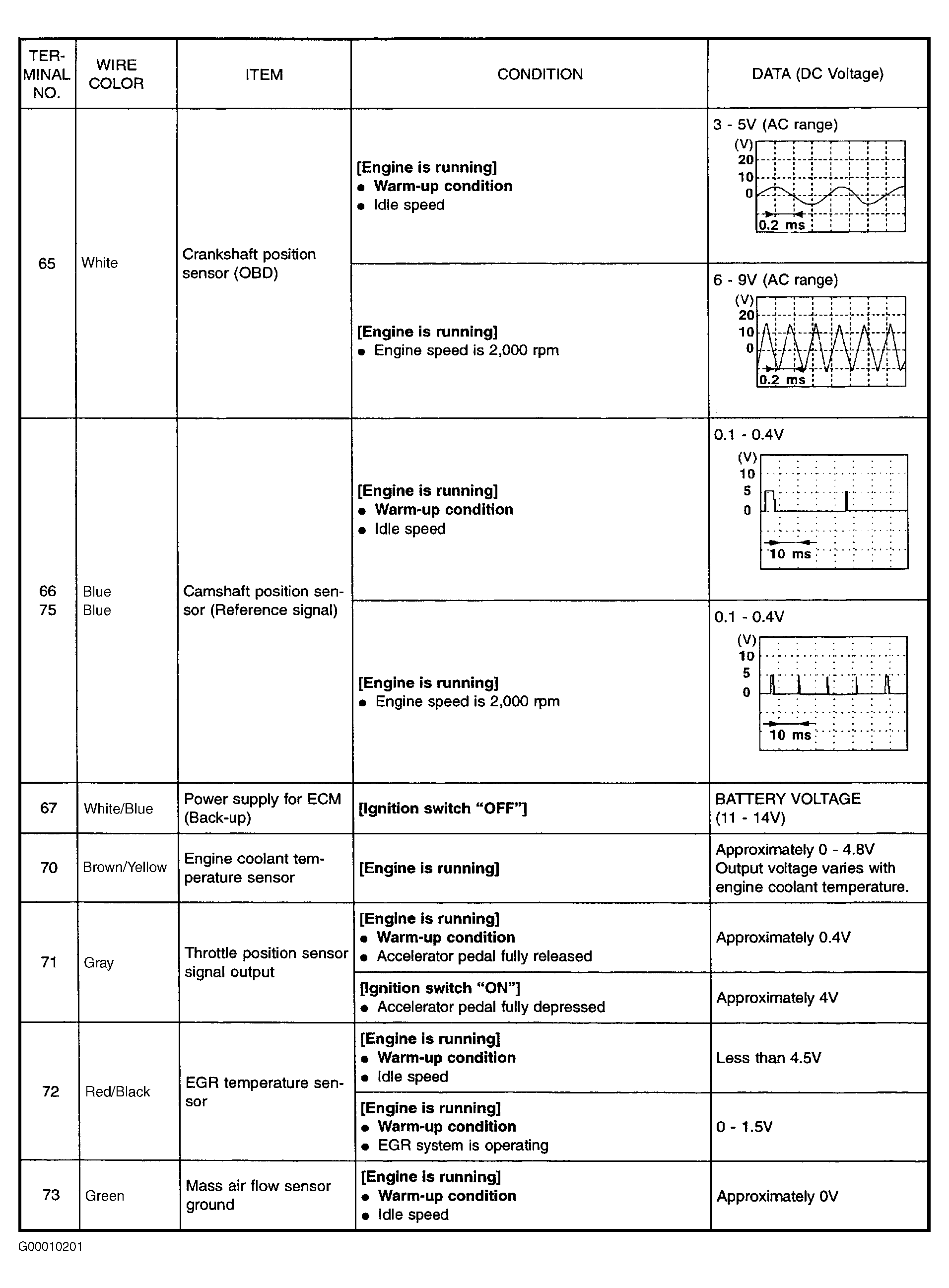

Fig 6: Pin Voltage Chart (G20 - 6 Of 8)

G00010201

Courtesy of NISSAN MOTOR CO., U.S.A.

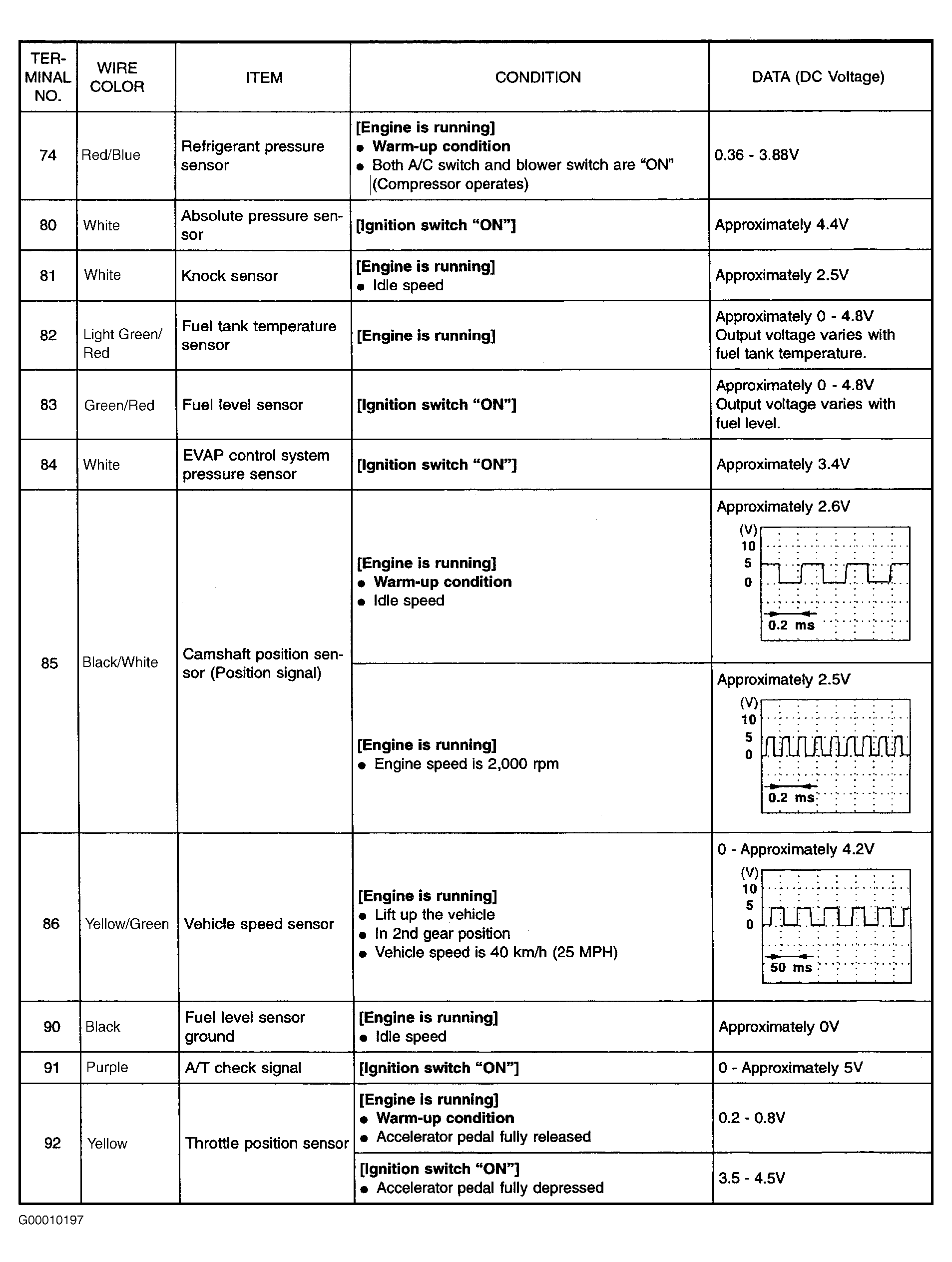

Fig 7: Pin Voltage Chart (G20 - 7 Of 8)

G00010197

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Pin Voltage Chart (G20 - 8 Of 8)

G00010193

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: On Q45, voltage specifications are measured between each terminal and ECM terminal No. 128 (ECM ground).

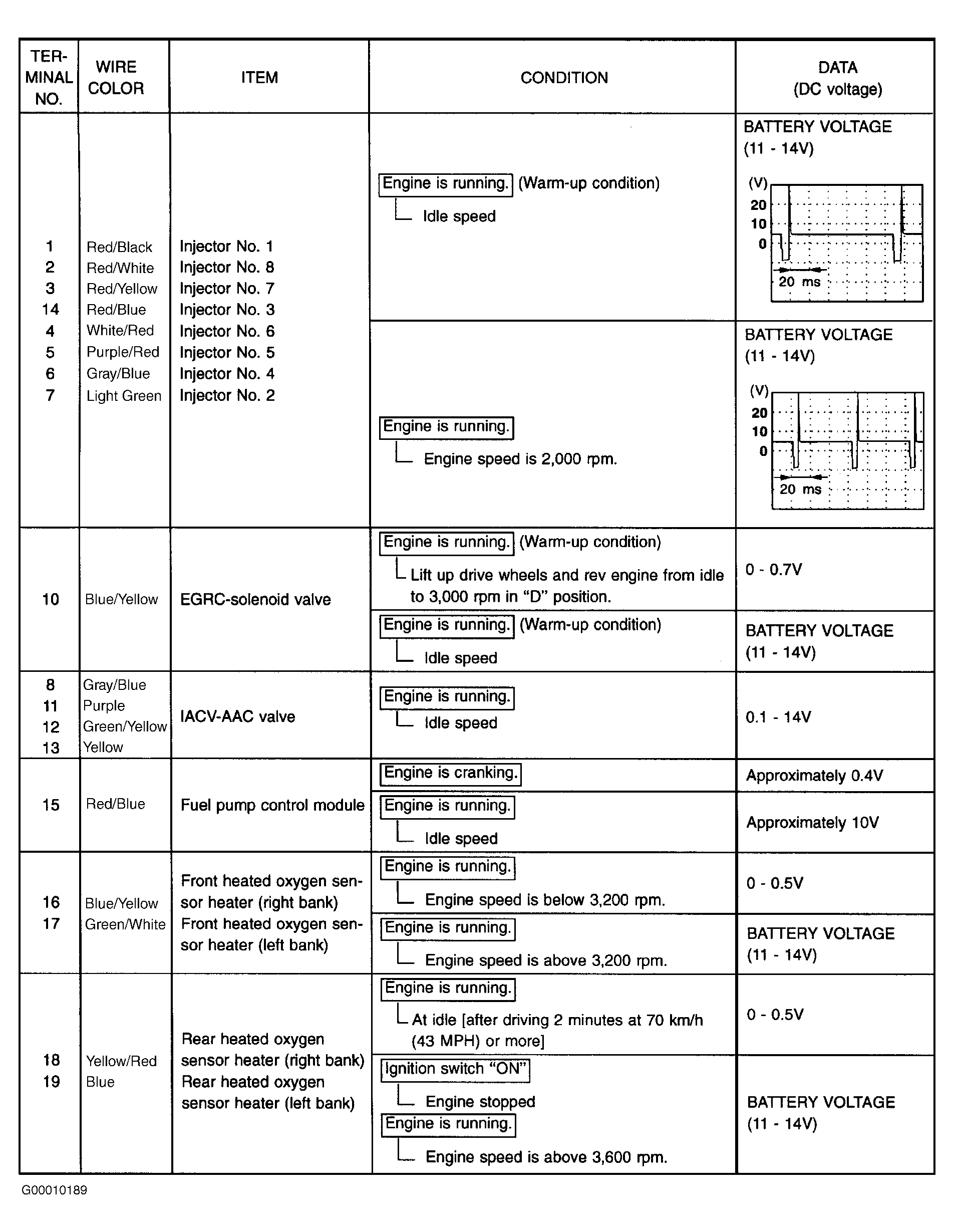

Fig 9: Pin Voltage Chart (Q45 - 1 Of 9)

G00010189

Courtesy of NISSAN MOTOR CO., U.S.A.

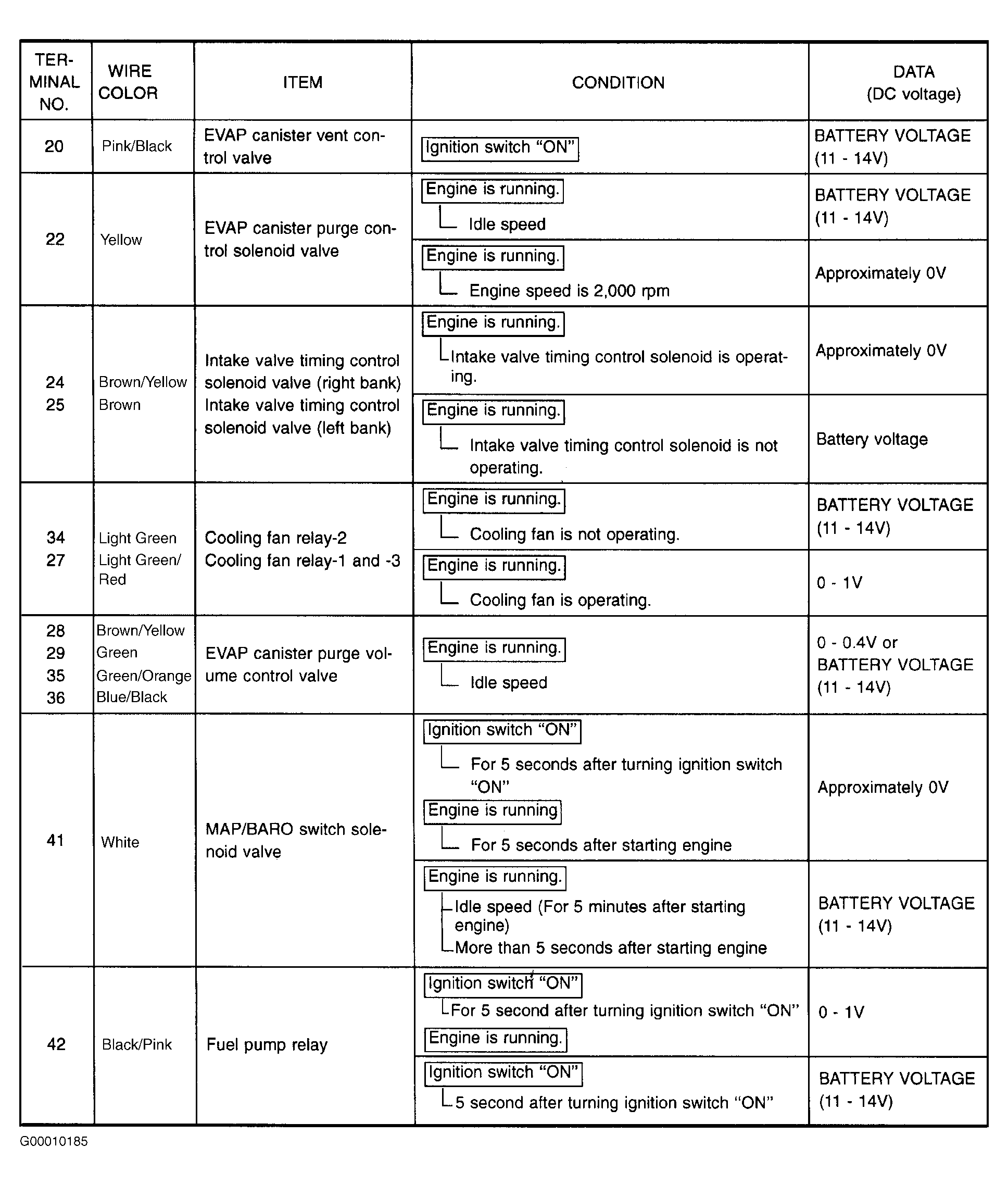

Fig 10: Pin Voltage Chart (Q45 - 2 Of 9)

G00010185

Courtesy of NISSAN MOTOR CO., U.S.A.

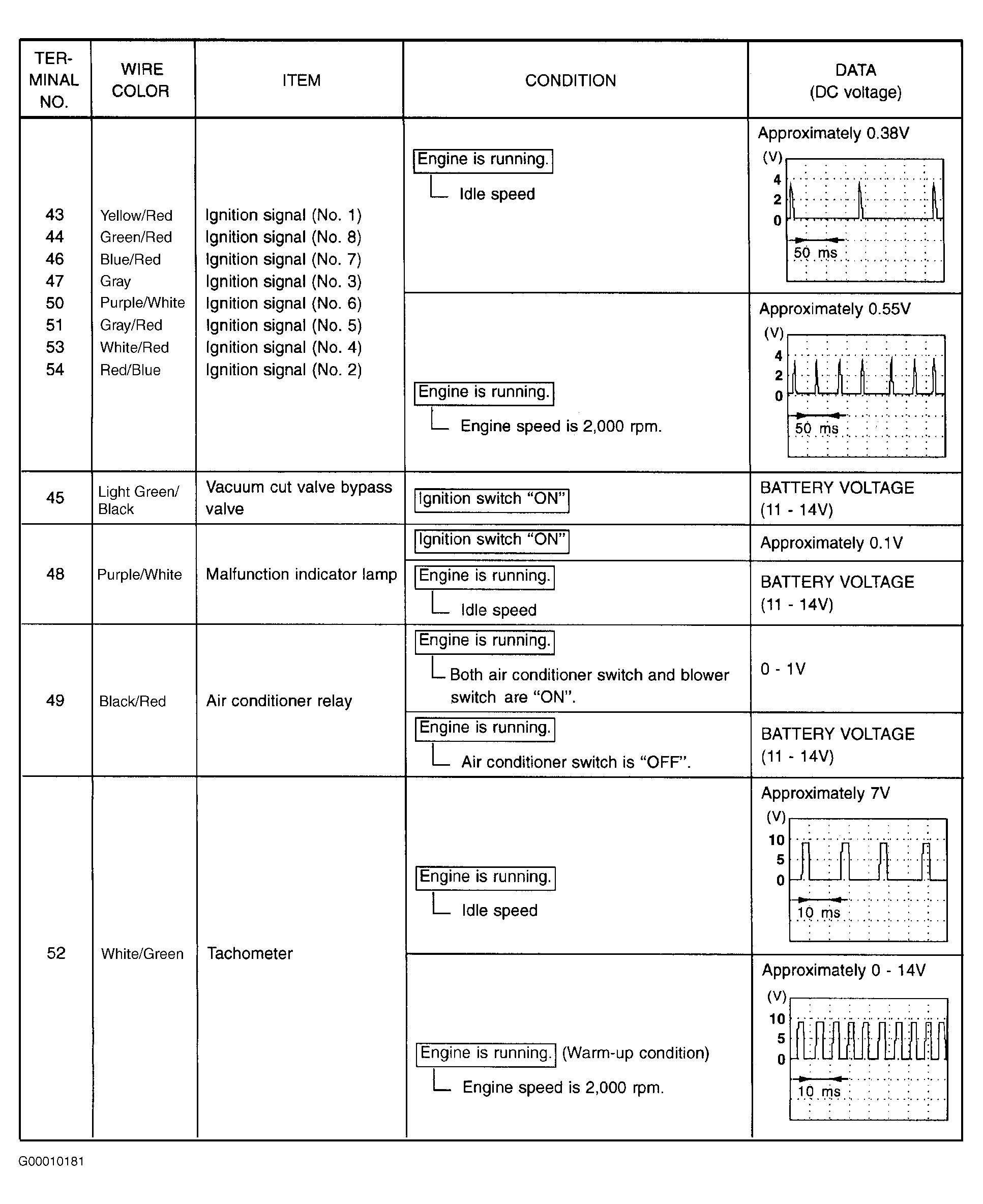

Fig 11: Pin Voltage Chart (Q45 - 3 Of 9)

G00010181

Courtesy of NISSAN MOTOR CO., U.S.A.

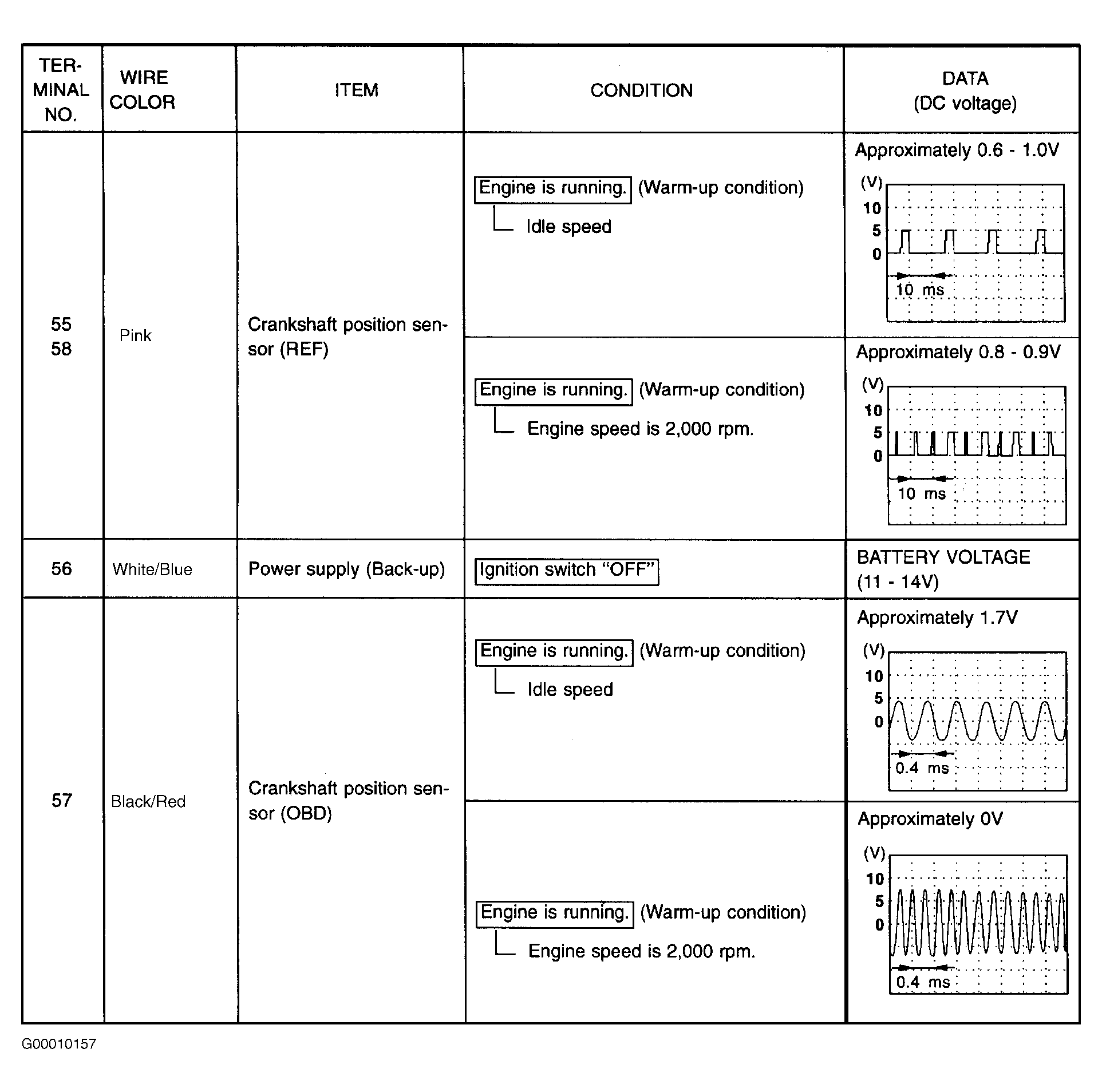

Fig 12: Pin Voltage Chart (Q45 - 4 Of 9)

G00010157

Courtesy of NISSAN MOTOR CO., U.S.A.

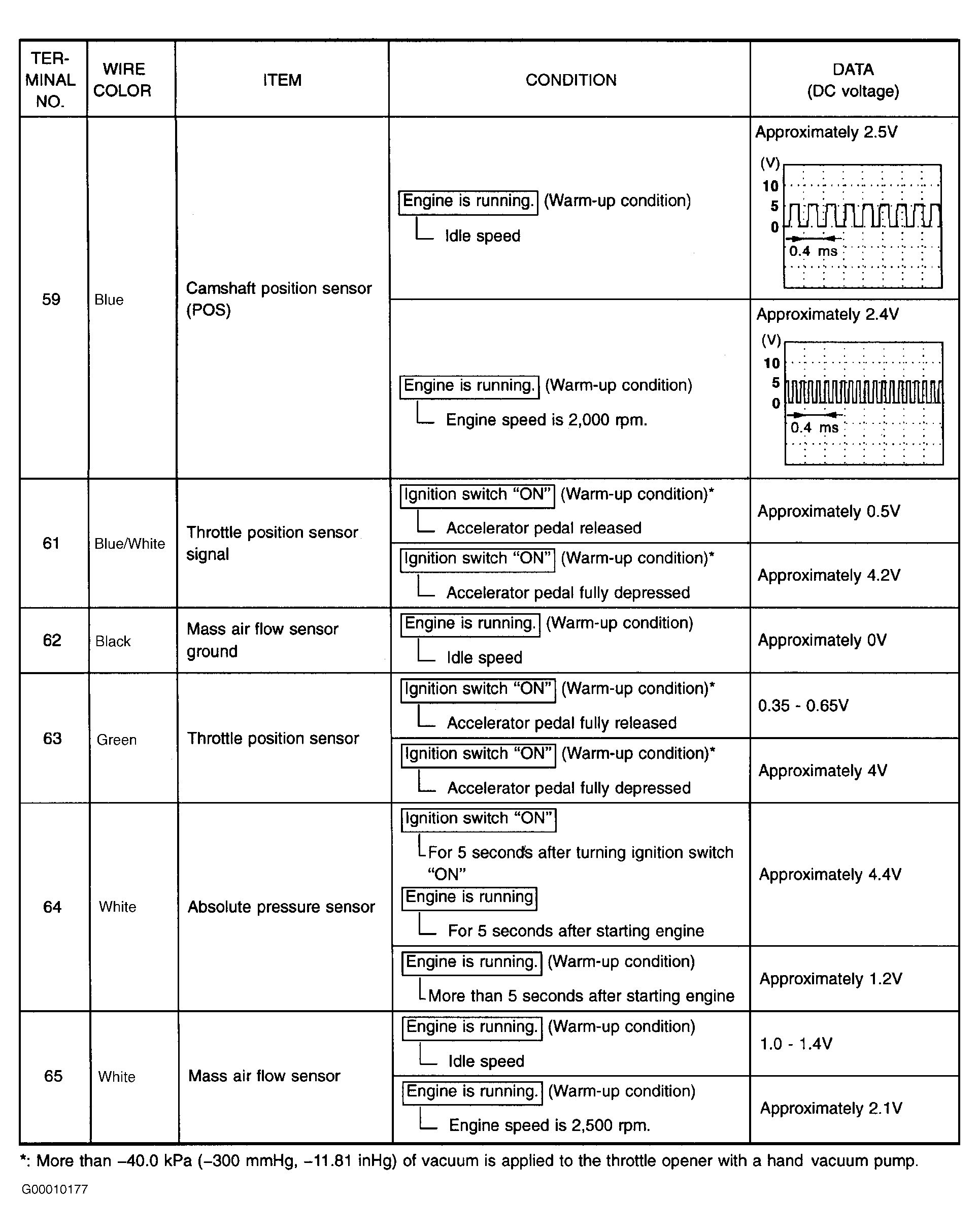

Fig 13: Pin Voltage Chart (Q45 - 5 Of 9)

G00010177

Courtesy of NISSAN MOTOR CO., U.S.A.

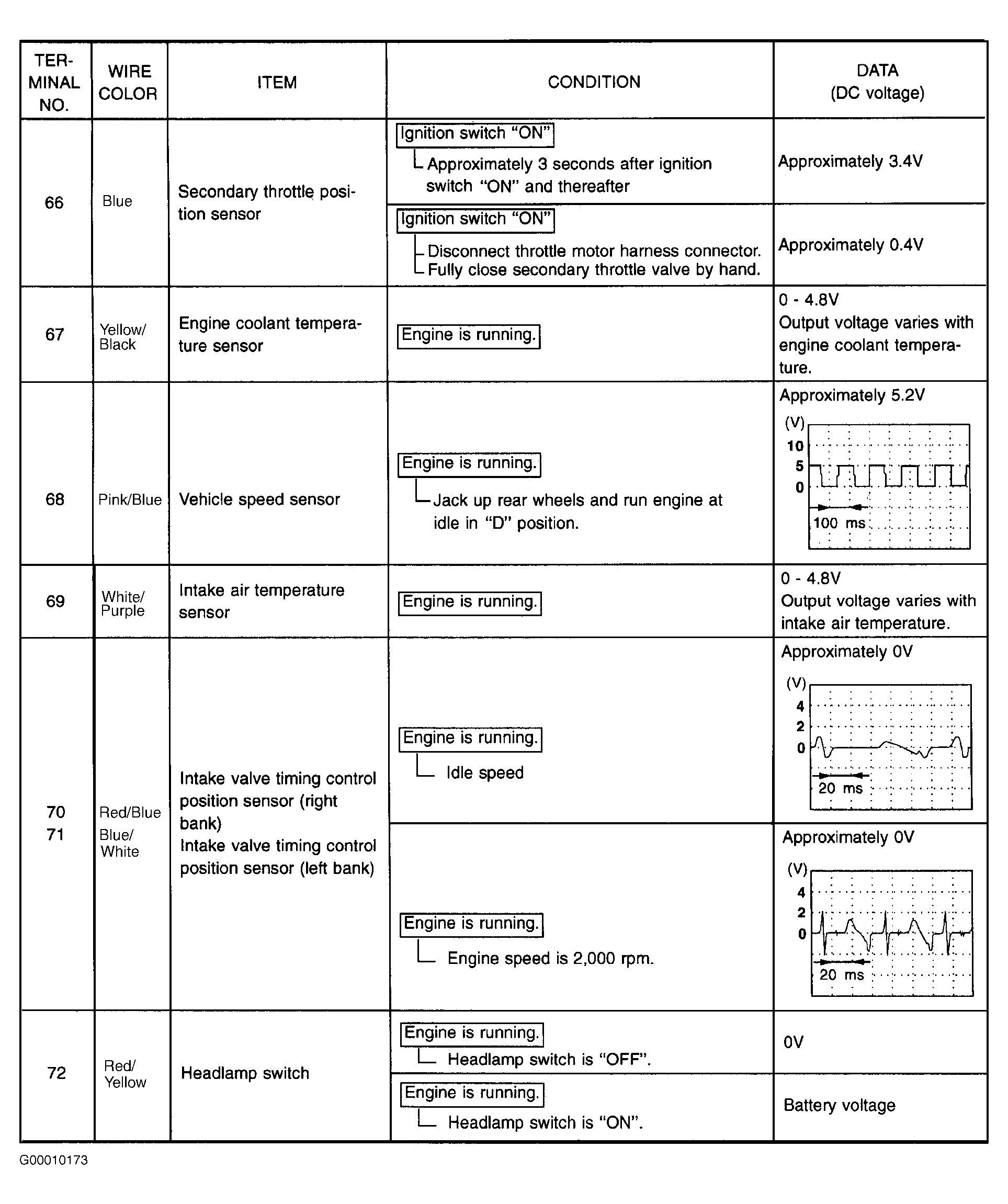

Fig 14: Pin Voltage Chart (Q45 - 6 Of 9)

G00010173

Courtesy of NISSAN MOTOR CO., U.S.A.

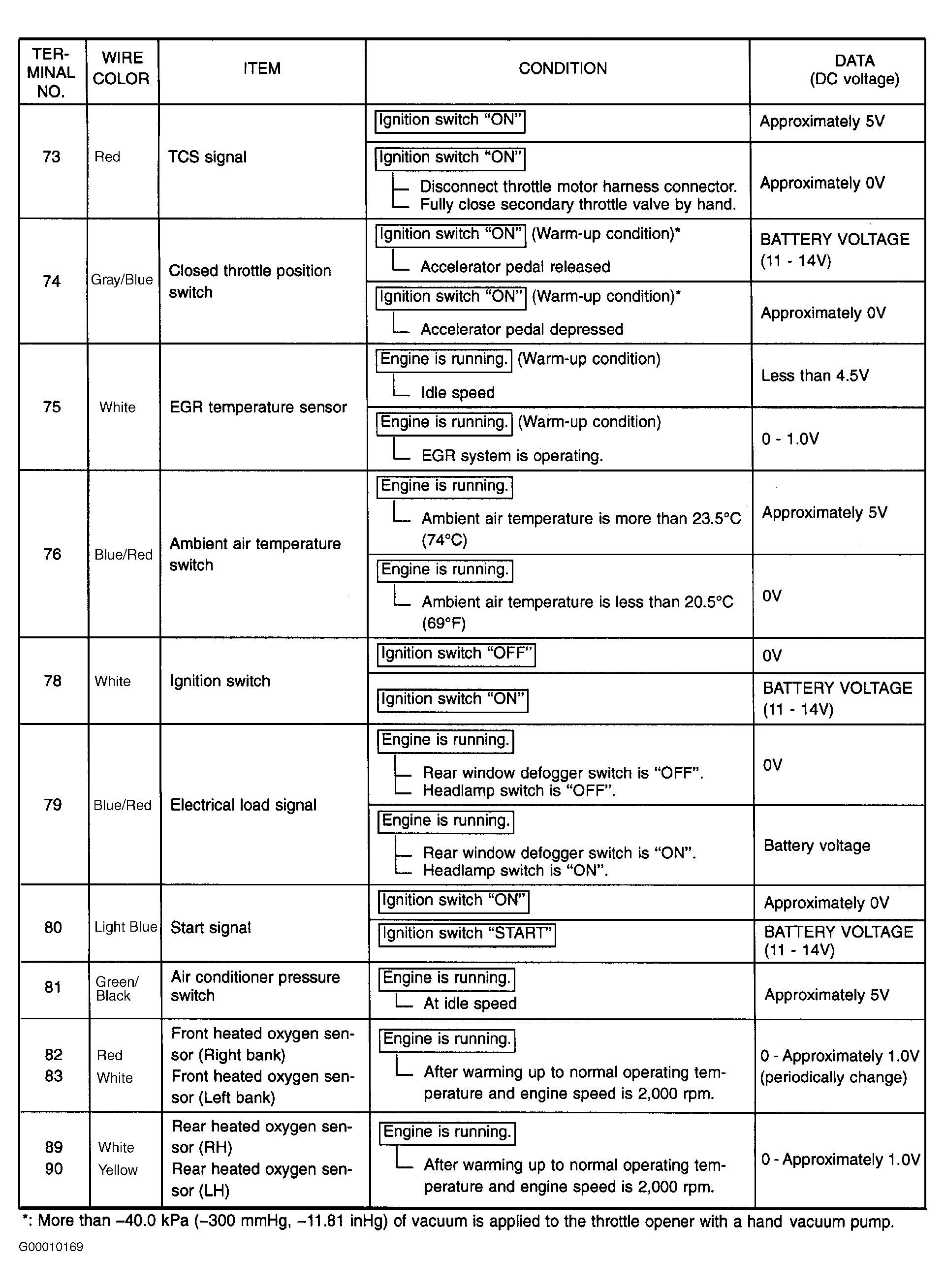

Fig 15: Pin Voltage Chart (Q45 - 7 Of 9)

G00010169

Courtesy of NISSAN MOTOR CO., U.S.A.

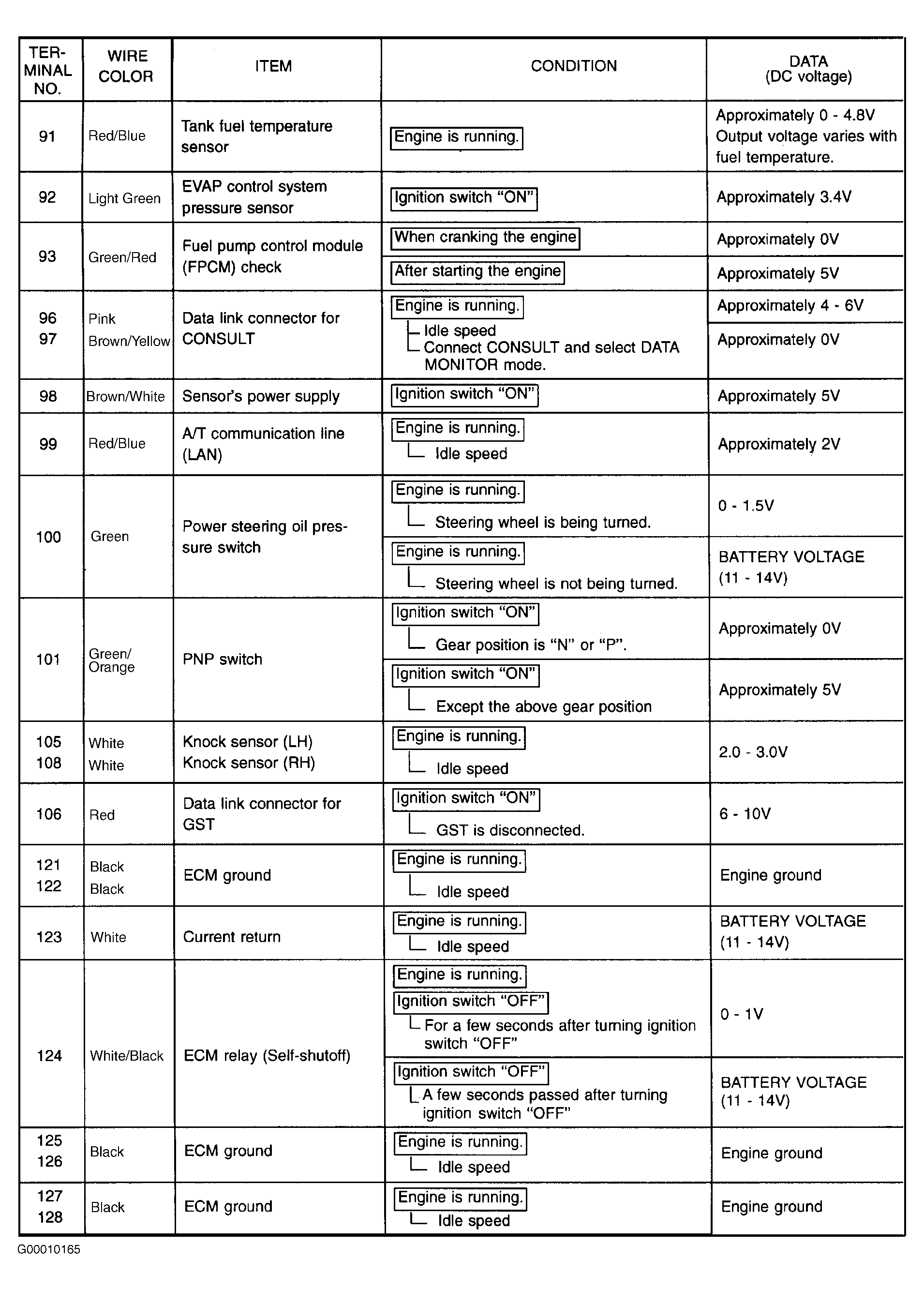

Fig 16: Pin Voltage Chart (Q45 - 8 Of 9)

G00010165

Courtesy of NISSAN MOTOR CO., U.S.A.

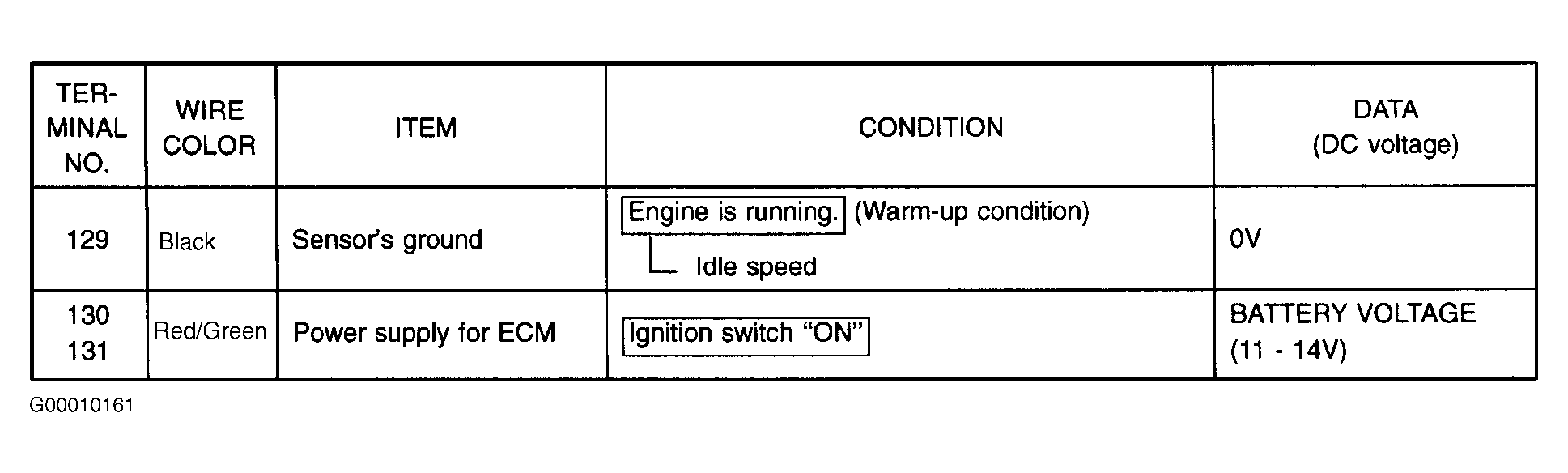

Fig 17: Pin Voltage Chart (Q45 - 9 Of 9)

G00010161

Courtesy of NISSAN MOTOR CO., U.S.A.
