Navigation System Software Kit Installation Procedures (ITB00-025A)

Publication date: 2000-11-16
Reference number: ITB00-025A
Supersedes refnos: ITB00-025

NAVIGATION SYSTEM SOFTWARE KIT INSTALLATION PROCEDURES

TECHNICAL SERVICE BULLETIN

Reference Number(s): ITB00-025a, Date of Issue: November 16, 2000

INFINITI:	2000 Q45; 2000 I30; 2001 QX4
CLASSIFICATION:	EL00-004a
GROUP:	Electrical System
APPLIED VEHICLES:	2000 Q45 (FY33); 2000 I30 (CA33); 2001 QX4 (JR50)

Superceded Bulletin(s): ITB00-025

DESCRIPTION

NOTE: This bulletin has been amended. Information in the "Service Department Procedure" was revised. Please use this bulletin (ITB00-025a) ONLY and discard paper copies of ITB00-025.

Navigation System Software Kit Installation Procedures

BULLETIN CONTENTS

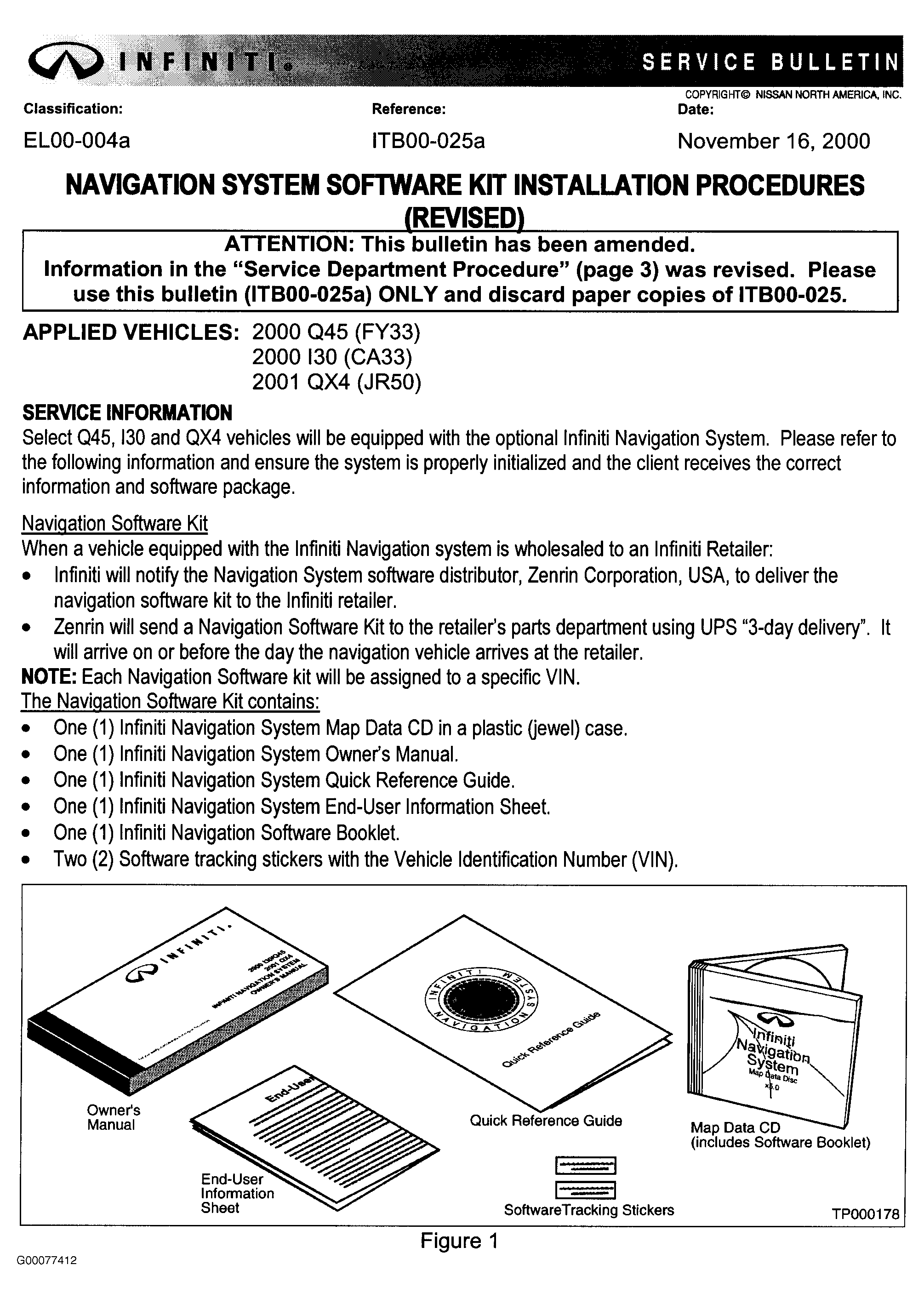

Fig 1: Page 1 of Bulletin

Fig 2: Page 2 of Bulletin

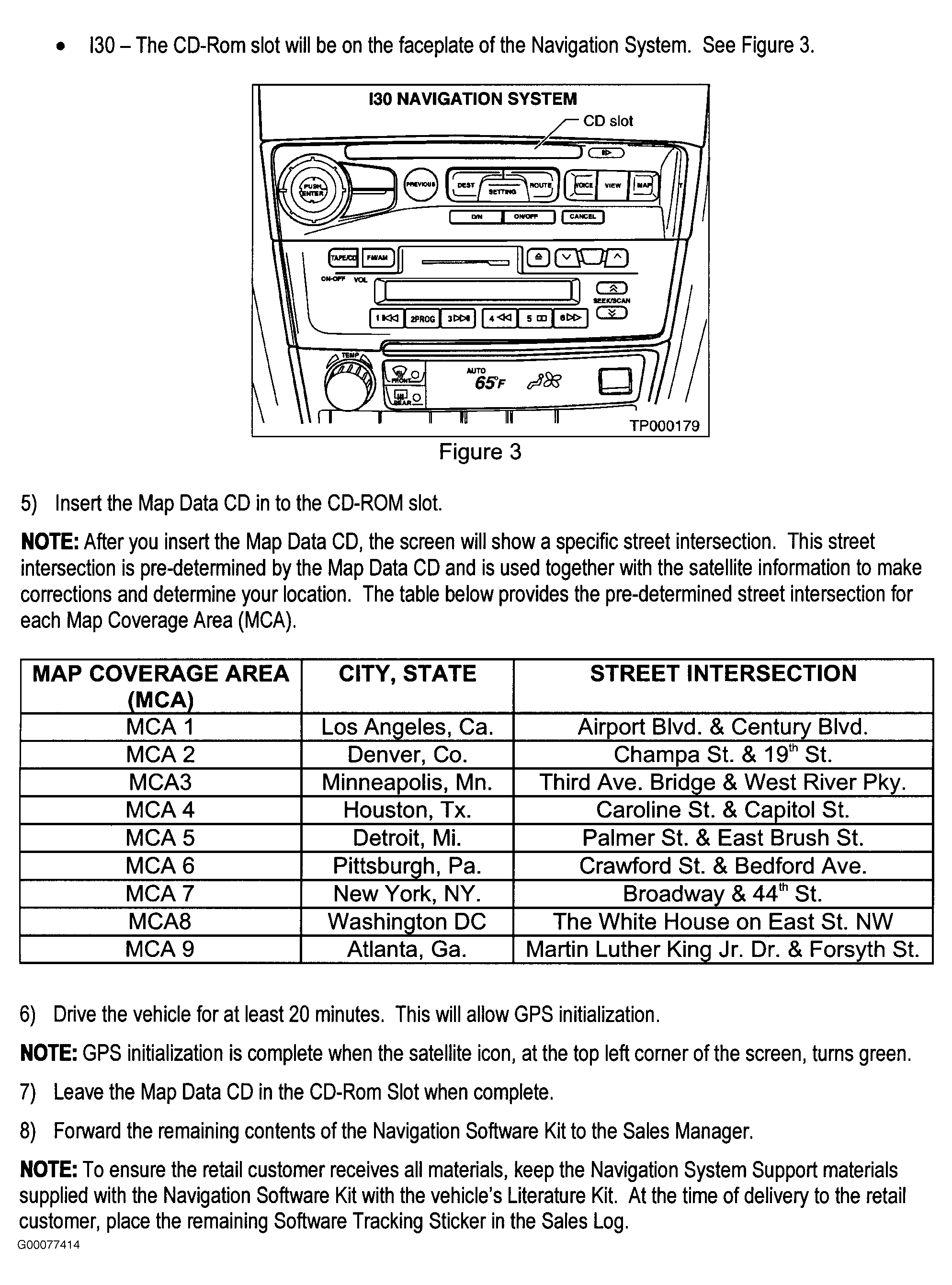

Fig 3: Page 3 of Bulletin

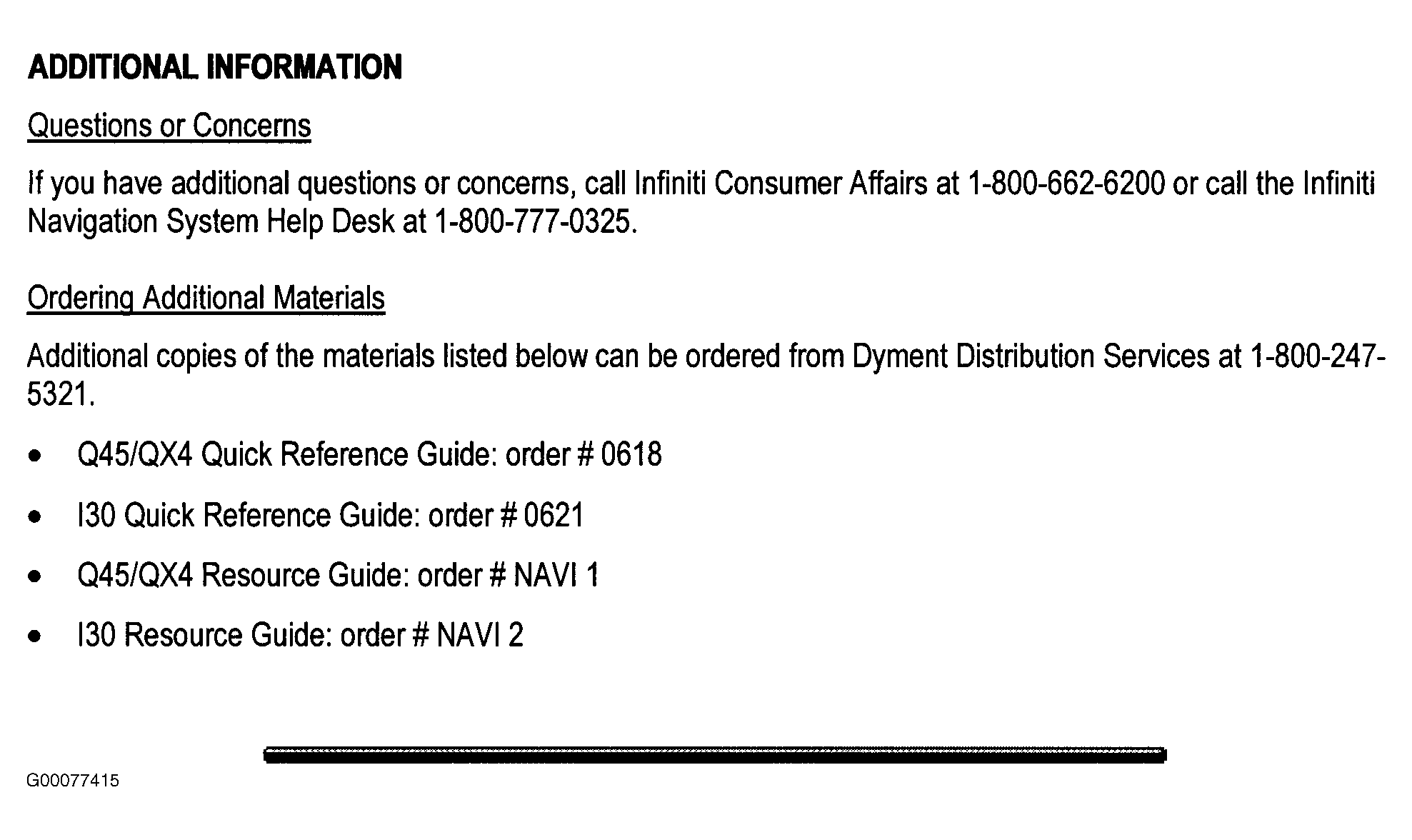

Fig 4: Page 4 of Bulletin
