Removal & Installation

NOTE: Removal and installation procedures not available at time of publication. Use exploded view as a guide. See Fig 1 .

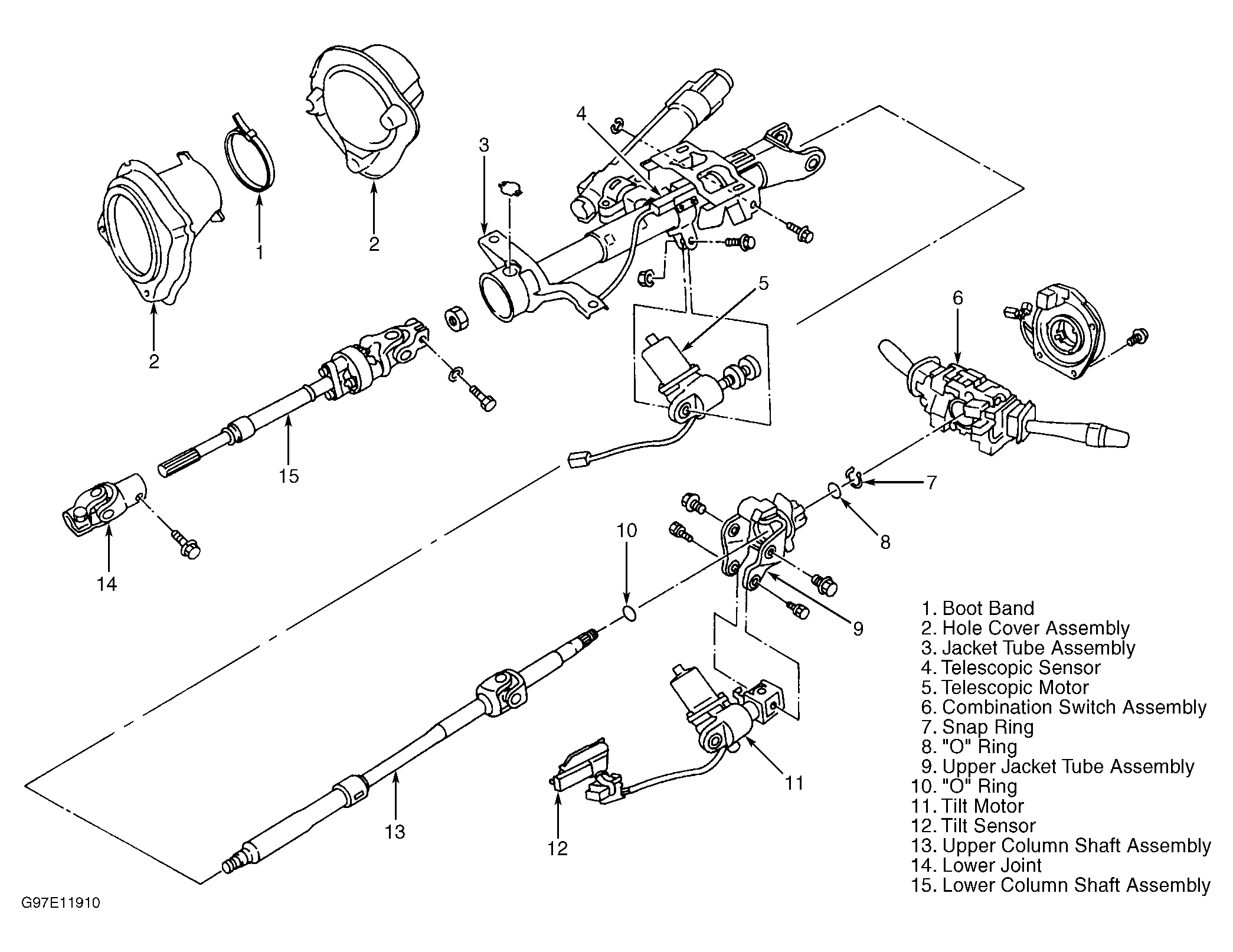

Fig 1: Exploded View Of Steering Column

Courtesy of NISSAN MOTOR CO., U.S.A.
