Component Locations

COMPONENT LOCATIONS

Component

Location

Multi-Remote Control Relay

⁽¹⁾ Right Side Of Engine Compartment, In Relay Box No. 2

Smart Entrance Control Unit (SECU)

⁽²⁾ To Right Of Instrument Panel Fuse Box

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

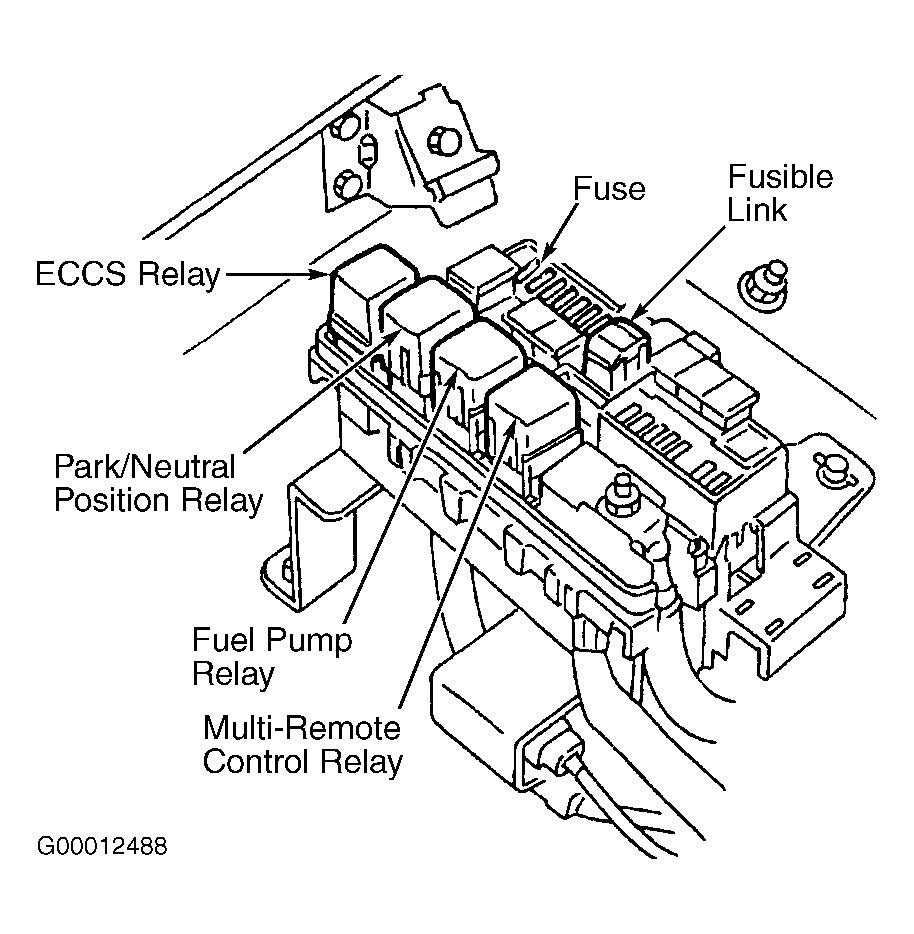

Fig 1: Locating Multi-Remote Control Relay

Courtesy of NISSAN MOTOR CO., U.S.A.

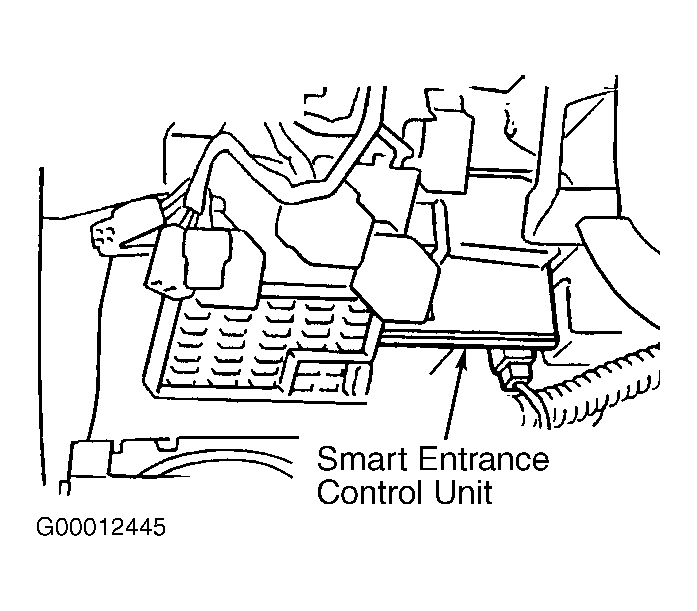

Fig 2: Locating Smart Entrance Control Unit (SECU)

Courtesy of NISSAN MOTOR CO., U.S.A.
