Component Locations

COMPONENT LOCATIONS

Component

Location

Data Link Connector (DLC)

Left Side Of Instrument Panel, Next To Parking Brake Release Handle

Engine Control Module (ECM) ⁽¹⁾

Under Left Side Of Instrument Panel, To Right Of Steering Column

Immobilizer Unit (IMMU) ⁽²⁾

Mounted To Ignition Switch

Junction Block Fuse Block

Under Left Side Of Instrument Panel, Above Left Kick Panel

Smart Entrance Control Unit (SECU)

Under Left Side Of Instrument Panel, Left Side of Steering Column

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

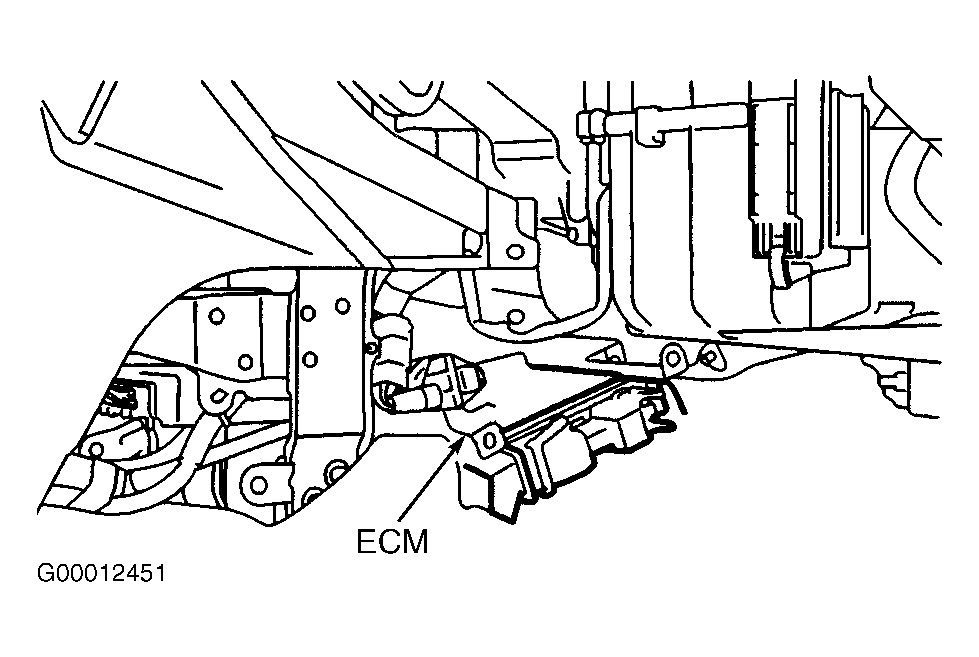

Fig 1: Identifying ECM Location

Courtesy of NISSAN MOTOR CO., U.S.A.

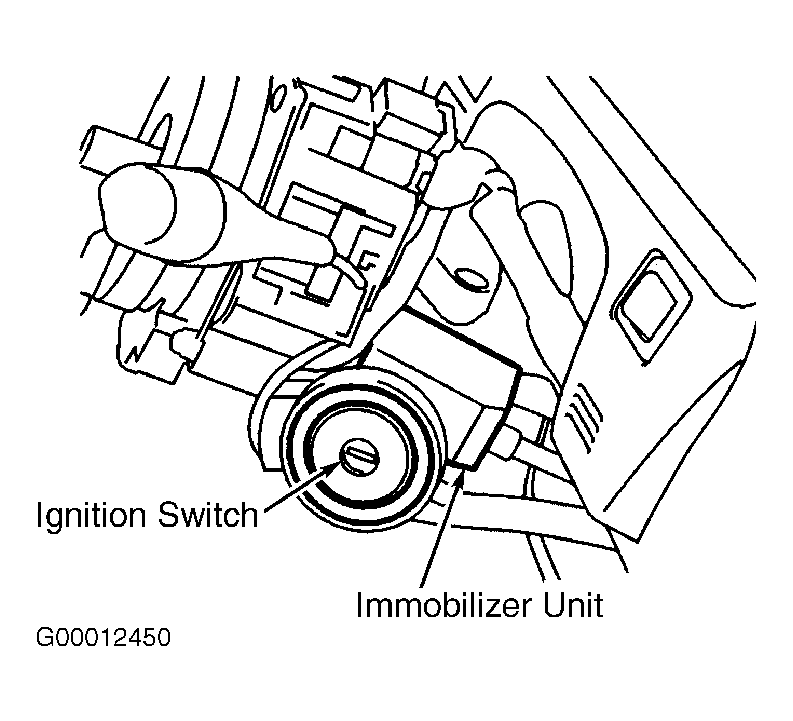

Fig 2: Identifying Immobilizer Unit (IMMU) Location

Courtesy of NISSAN MOTOR CO., U.S.A.
