Encoder & Limit Switch Check

For encoder and limit switch check, see Fig 1 -Fig 2 .

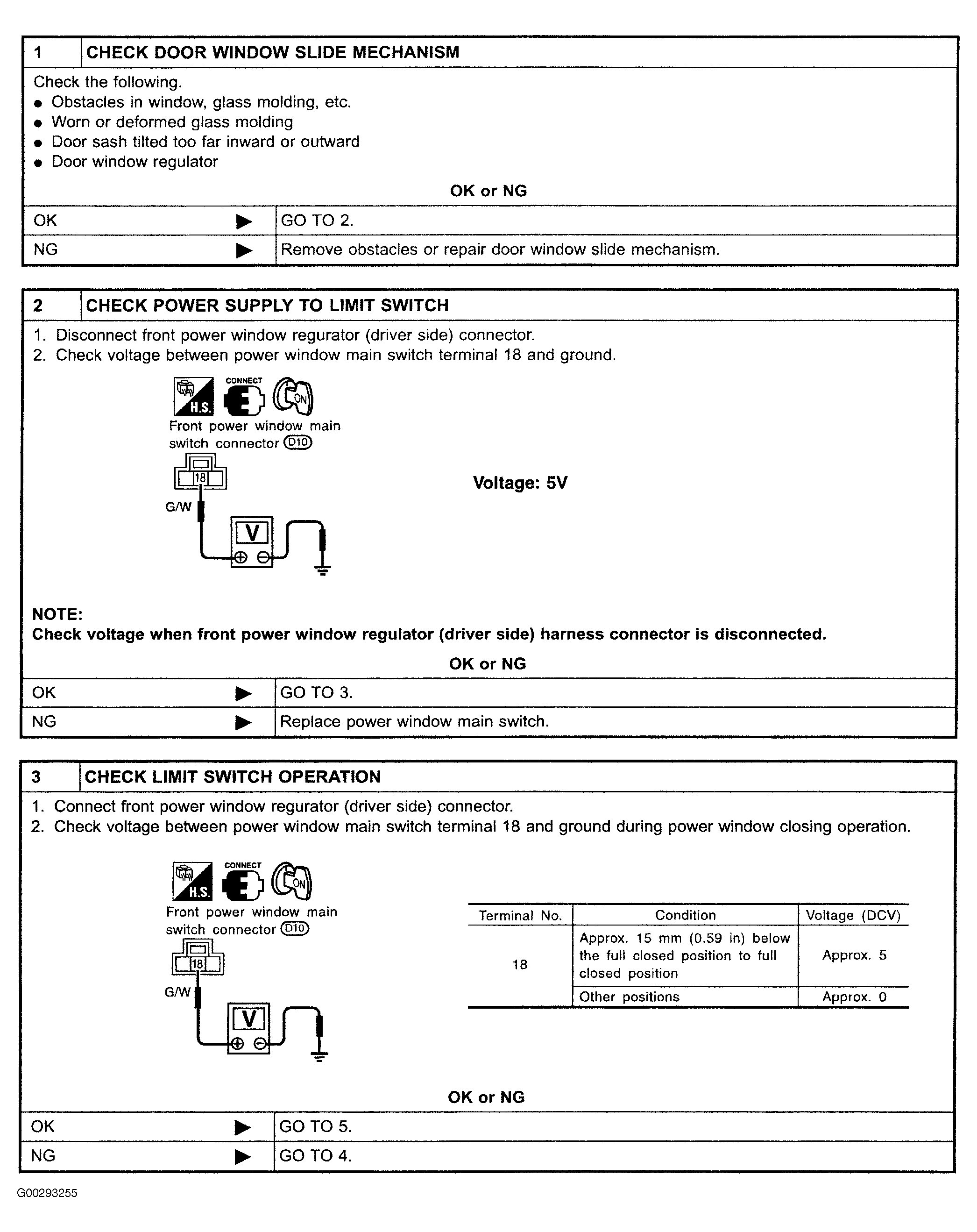

Fig 1: Encoder & Limit Switch Check (Steps 1-3)

Courtesy of NISSAN MOTOR CO., U.S.A.

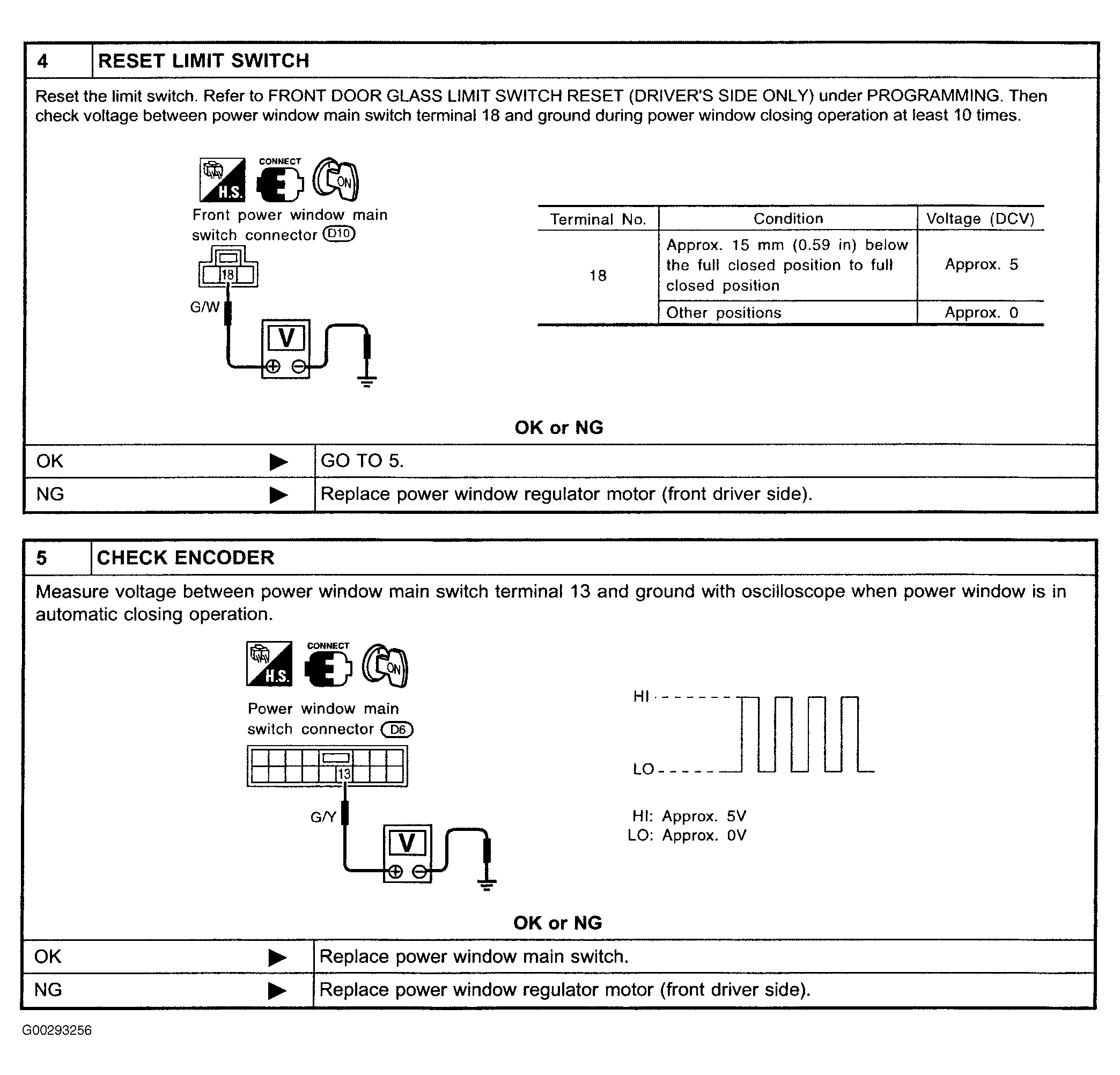

Fig 2: Encoder & Limit Switch Check (Steps 4 & 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
