Symptom Chart

NOTE:
  • Always check remote controller battery before replacing remote controller.
  • Trunk lid opener operation and panic alarm operation of multi-remote control system does not activate with the ignition key inserted in the ignition key cylinder.

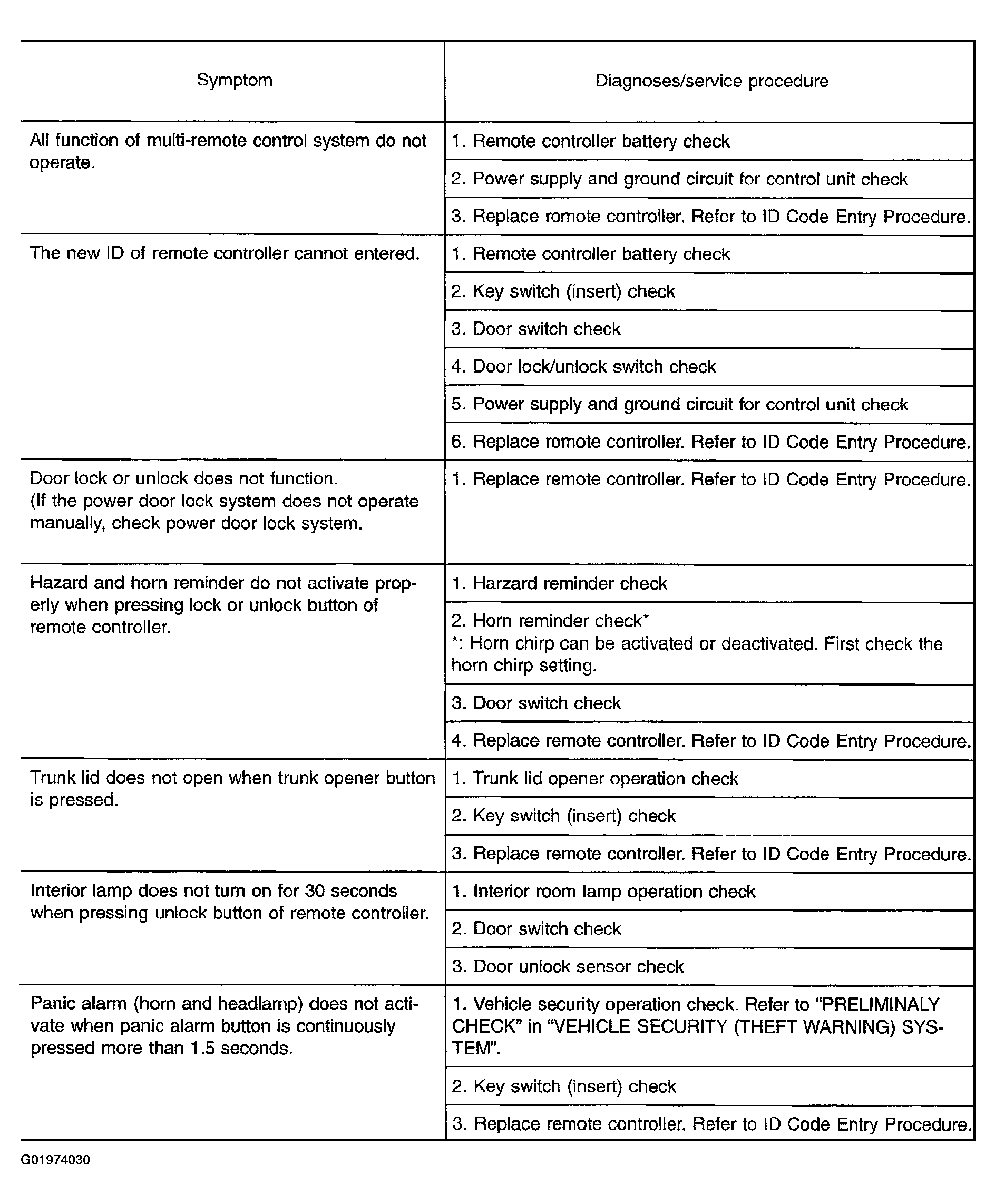

Fig 1: Symptom Chart
G01974030Courtesy of NISSAN MOTOR CO., U.S.A.
