How to Perform

Switch the navigation system mode to self-diagnosis by pushing both "MAP" and "D/N" switches at the same time for more than 5 seconds.
Select "Confirmation/ adjustment".

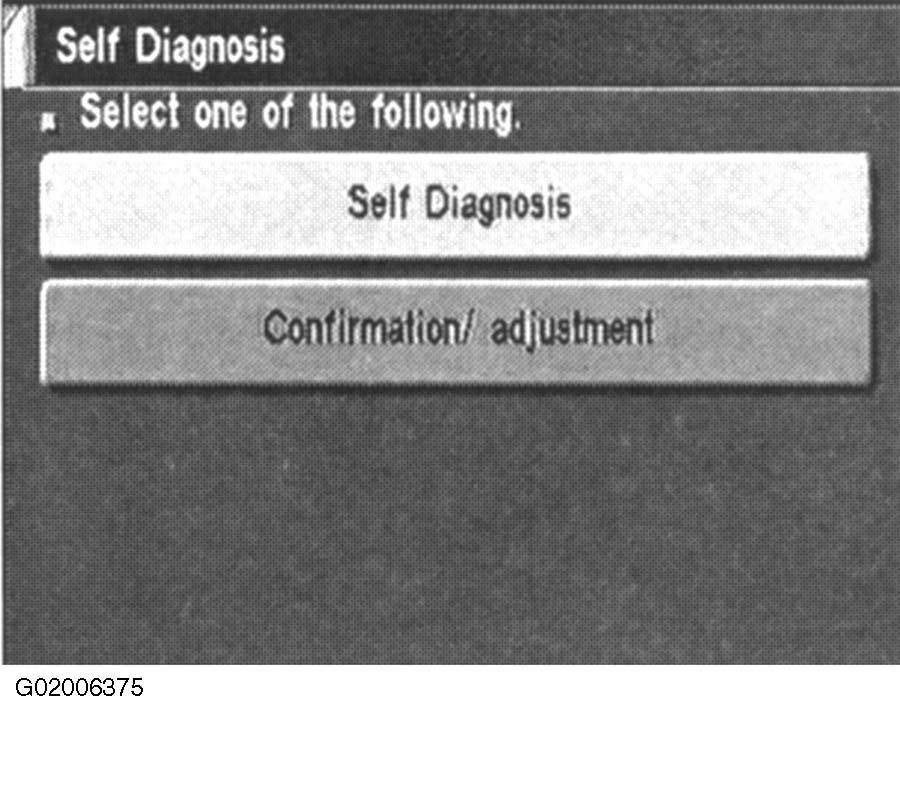

Fig 1: Self Diagnosis Display - Select "Confirmation/Adjustment"
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Initialize Location". Then the previous screen is displayed.

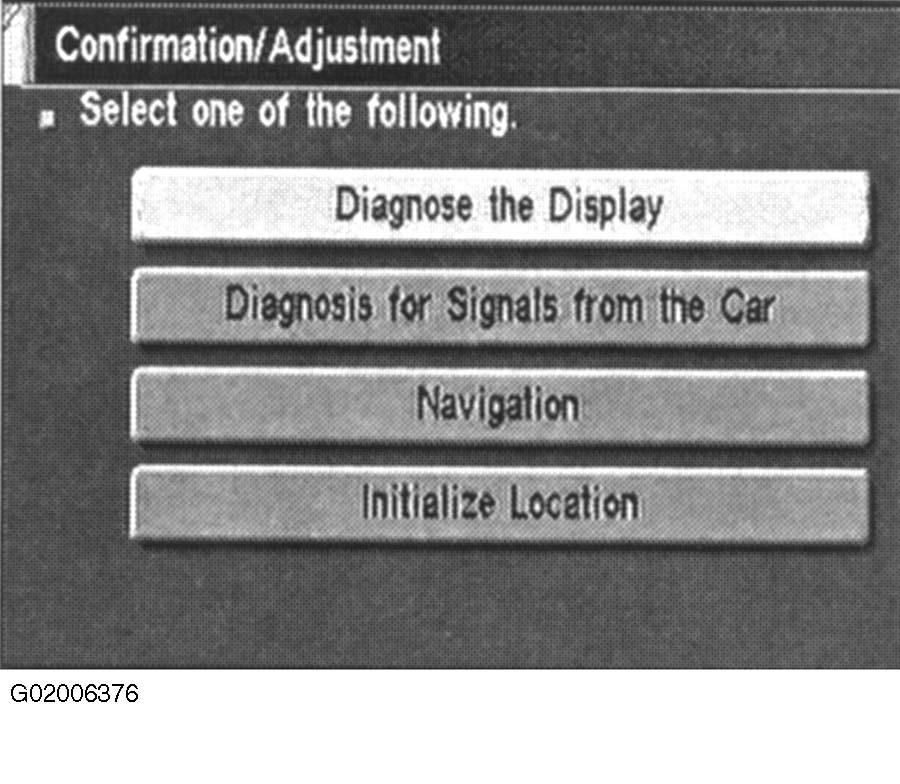

Fig 2: Confirmation/Adjustment Display - Select Initialize Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Push "MAP" switch, and then push "SETTING" switch.
Select "System Setting".

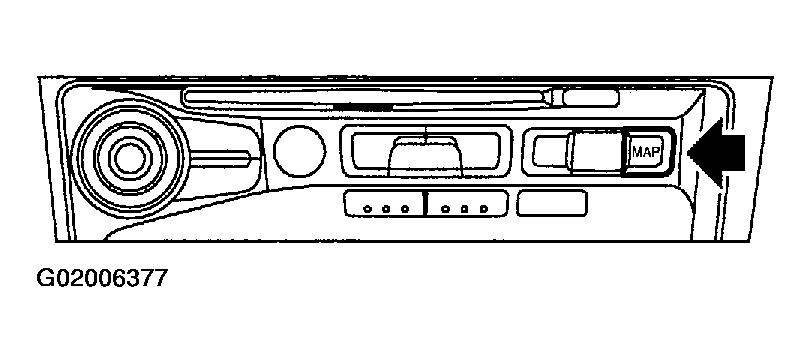

Fig 3: Locating MAP Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "GPS Information".

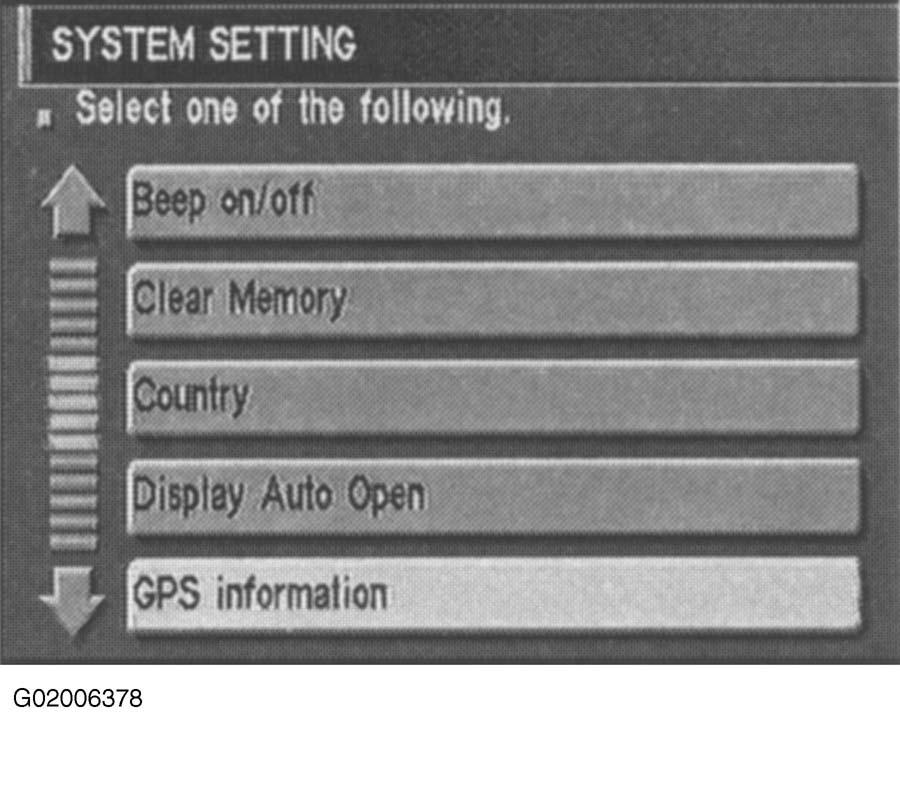

Fig 4: System Setting Display - Select GPS Information
Courtesy of NISSAN MOTOR CO., U.S.A.
More than one GPS satellite icon turns green. (It may take 1 to 15 minutes.)
NOTE: Drive the vehicle for a while* in order to change the receiving condition of the radio wave from the GPS satellite if the GPS icon does not turn green.
*The driving distance which is necessary depends on the receiving condition of the radio wave from the GPS satellite.

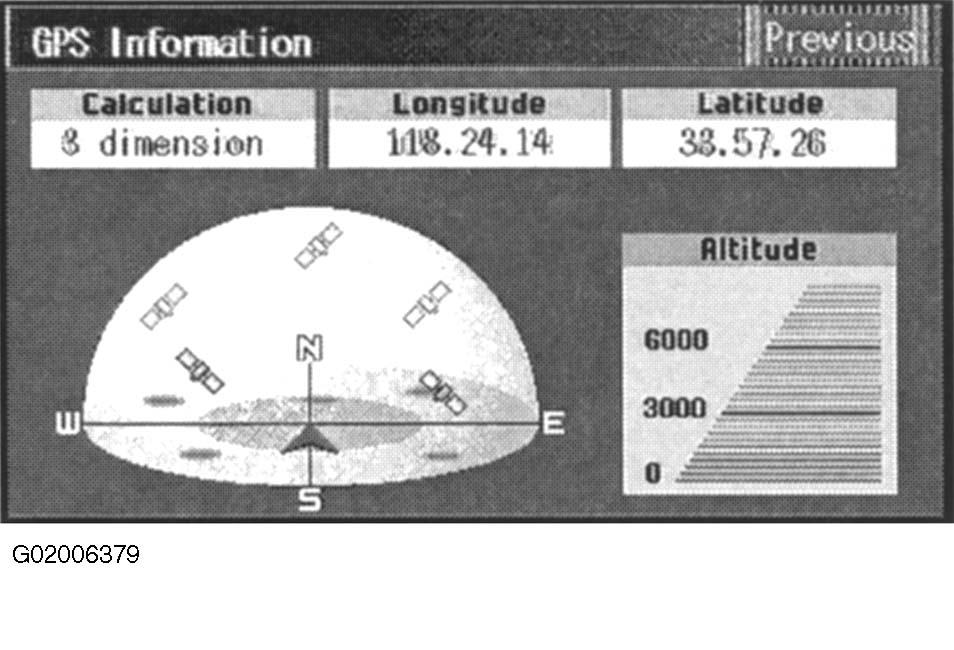

Fig 5: GPS Information Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Push "MAP" switch and check the following.
- Confirm that the GPS icon on the map turns green.
- Then the position marker should show the current location.
- Position marker rotates corresponding to the movement of the vehicle.
Initialization is completed.
