Active Test Mode

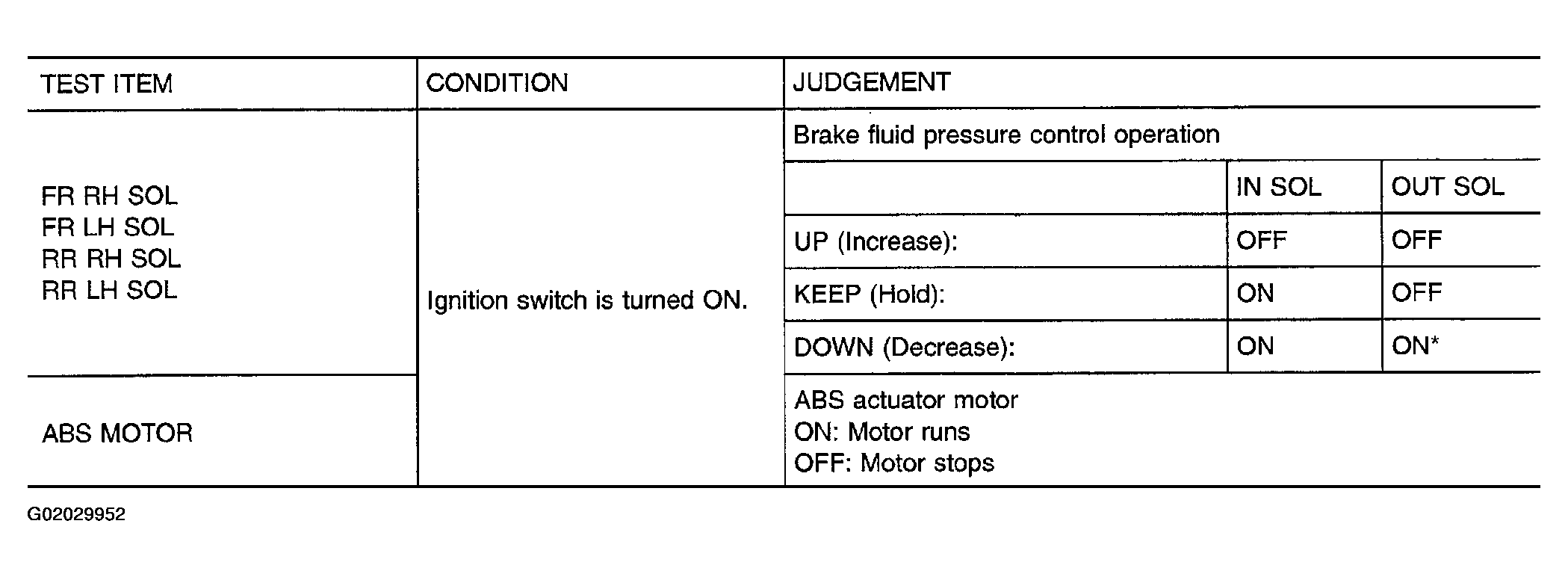

Fig 1: Active Test Mode Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Active test will automatically stop ten seconds after the test starts. (TEST IS STOPPED monitor shows ON.)
*: "ON" lasts for 1 to 2 seconds after touching screen, then it goes to "OFF".
