Data Monitor Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to data link connector.
  3. Turn ignition switch ON.
  4. Touch "START" on CONSULT-II screen.

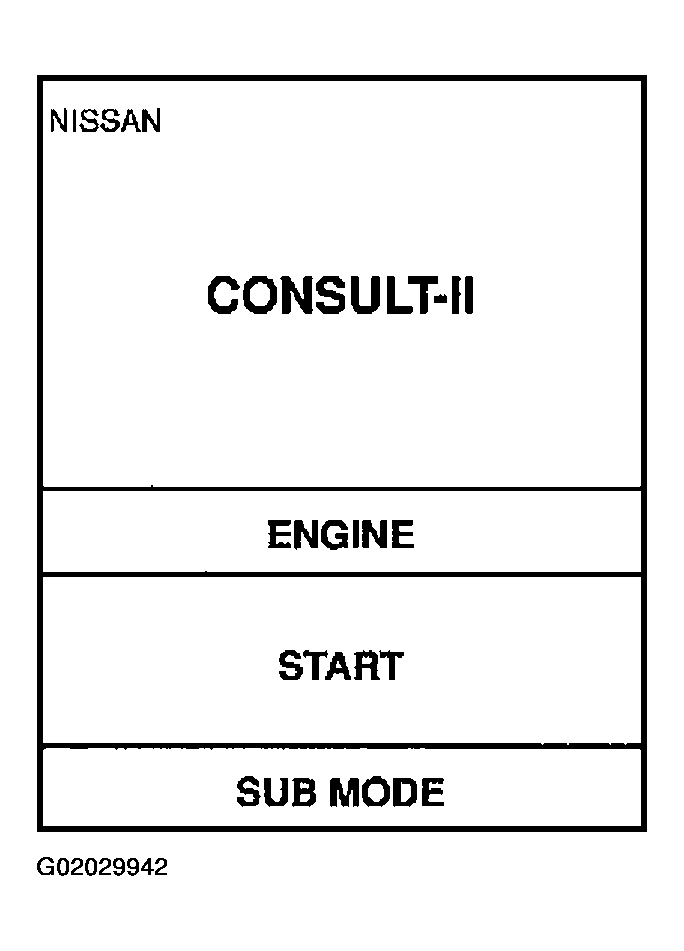

    Fig 1: CONSULT-II Display - Touch "START"
    G02029942Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS".

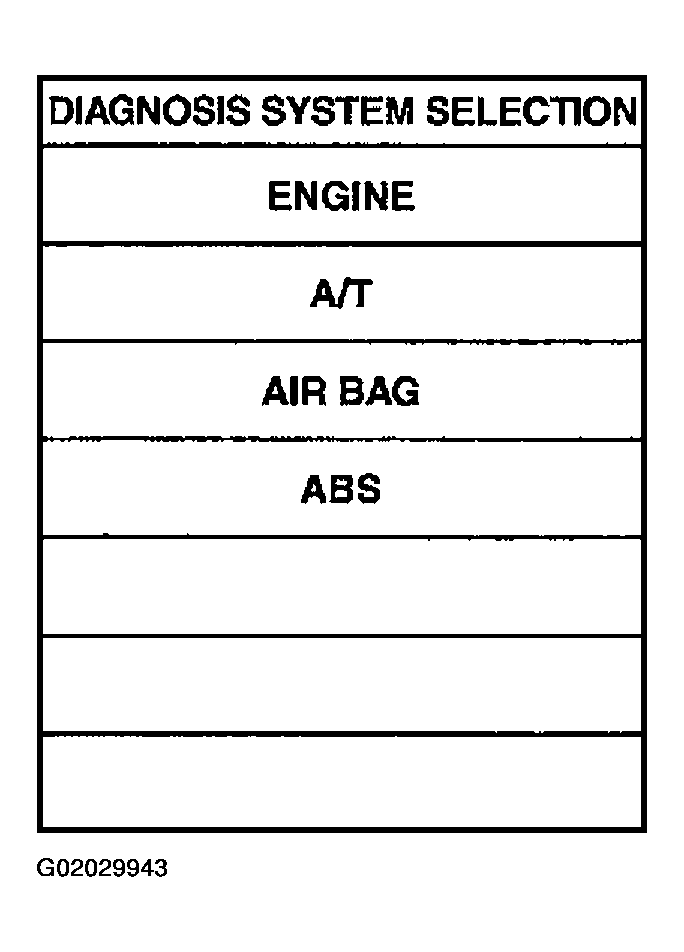

    Fig 2: CONSULT-II Display - Touch "ABS"
    G02029943Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".
  7. Touch "SETTING" on "SELECT MONITOR ITEM" screen.
  8. Touch "START" on "SELECT MONITOR ITEM".

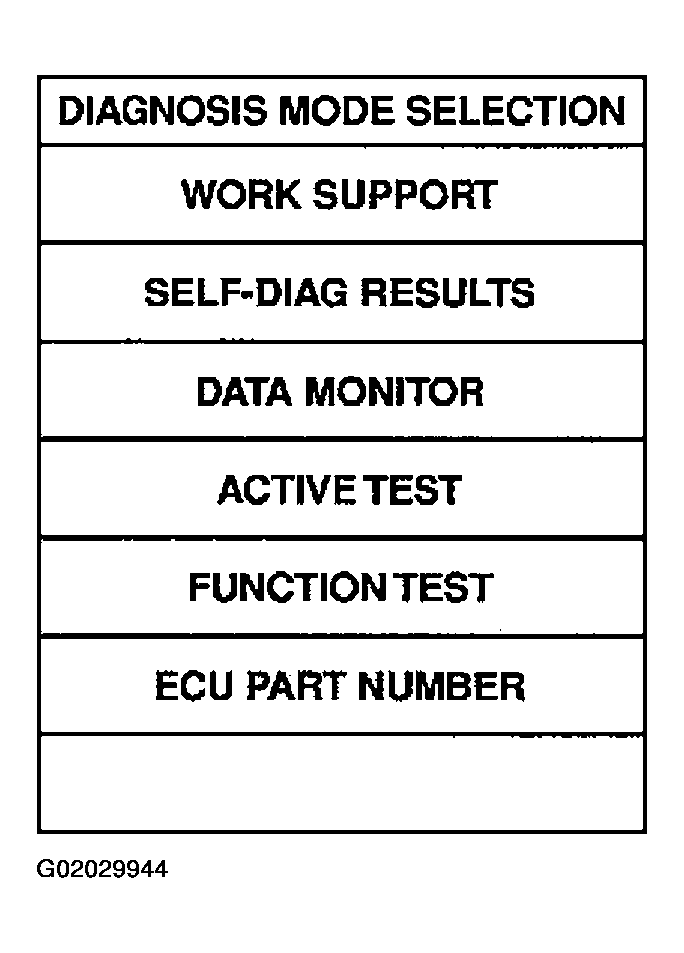

    Fig 3: CONSULT-II Display - Touch "DATA MONITOR"
    G02029944Courtesy of NISSAN MOTOR CO., U.S.A.
