Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

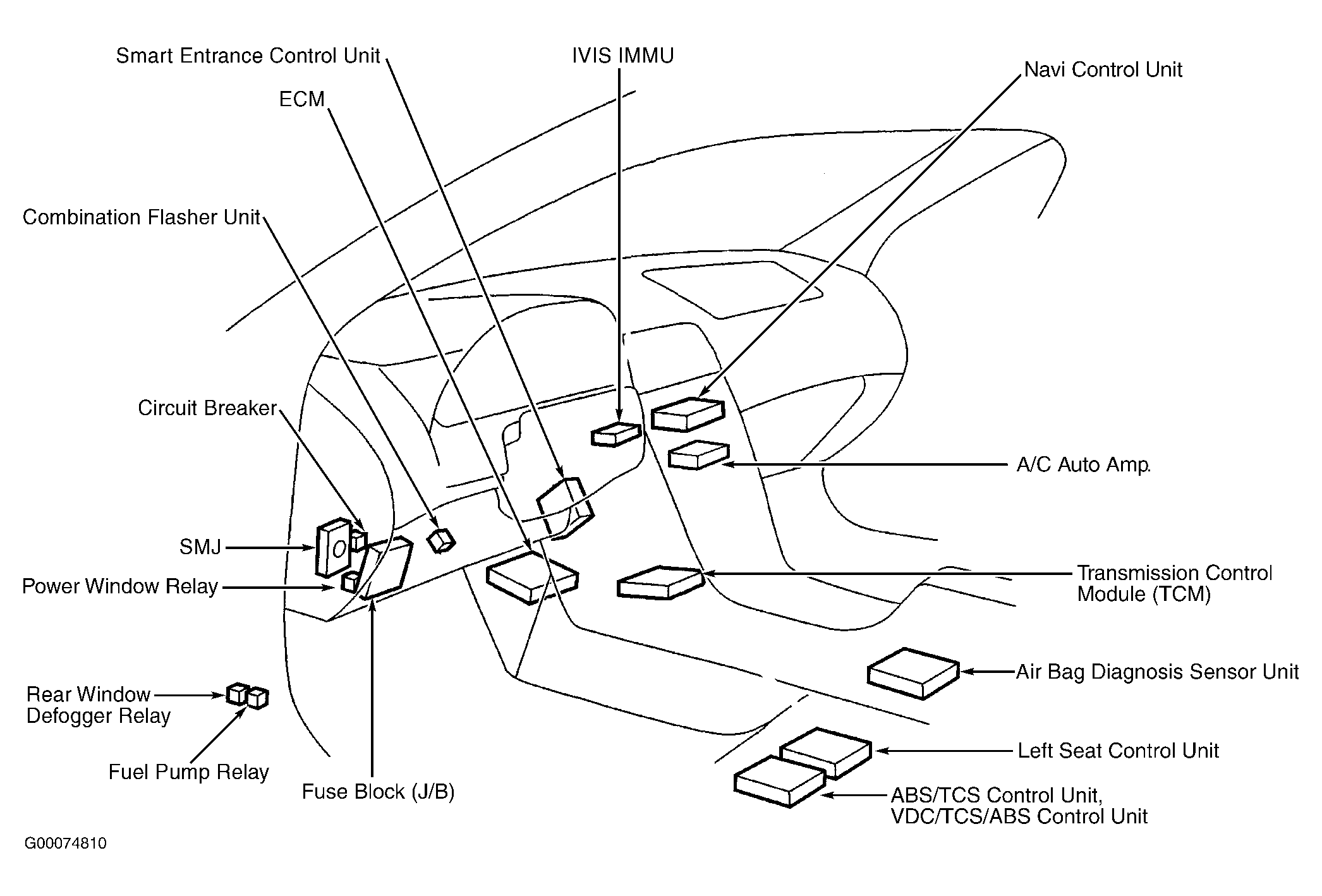

Circuit Breaker Behind left side of dash, near fuse block (J/B). See Figure .
Fuse Block (J/B) Behind left side of dash. See Figure .

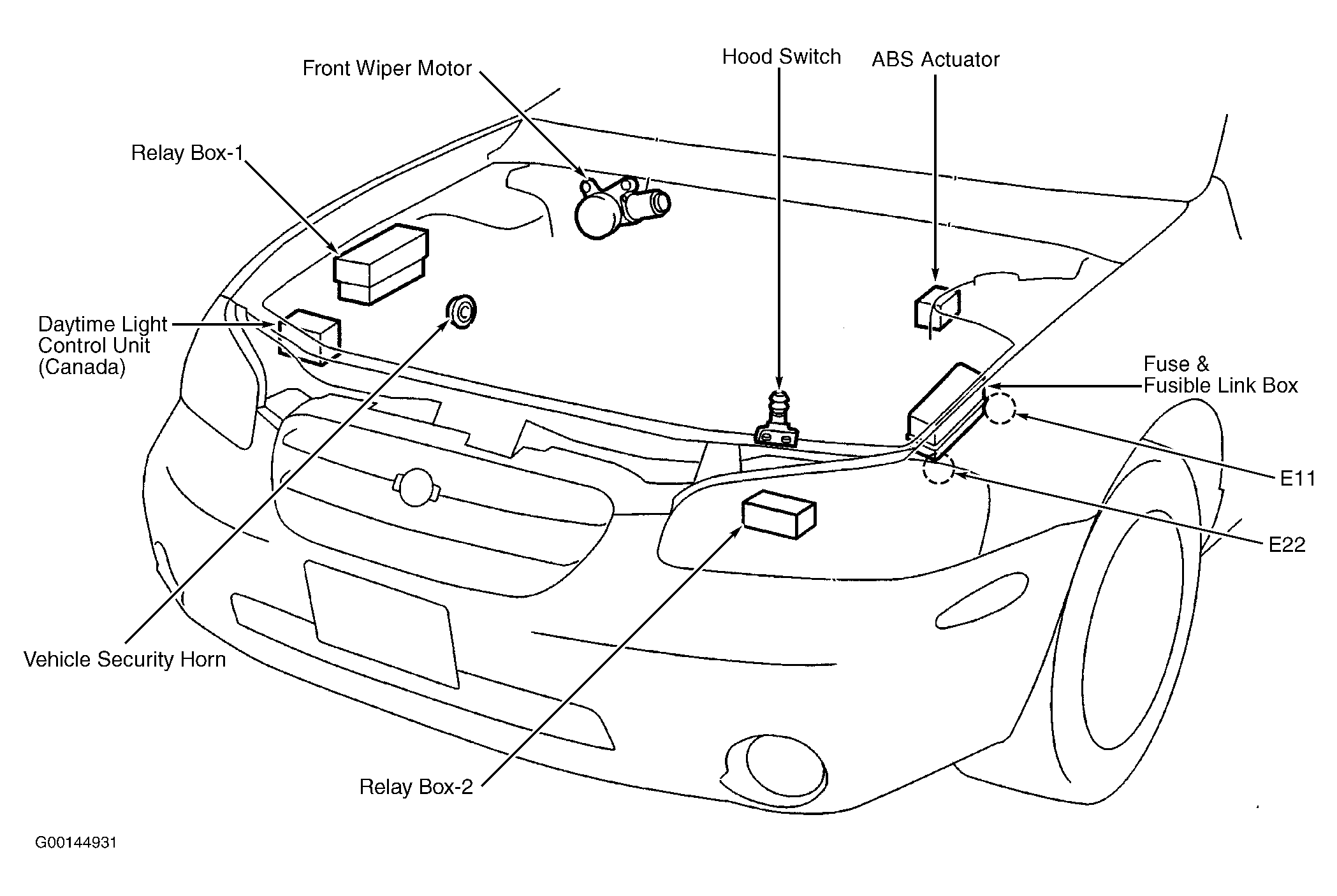

Fuse & Fusible Link Box At left side of engine compartment. See Figure .
Relay Box-1 At right side of engine compartment. See Figure .
Relay Box-2 At left front corner of engine compartment. See Figure .
VDC Relay Box At left rear of engine compartment, near ABS actuator & electrical unit.
