Removal And Installation Of Av And NAVI Control Unit And Av Control Unit (For CANADA With Rear Control Switch )

  1. Remove the trunk compartment trim.
  2. Remove the screws (4) and remove the AV and NAVI control unit or AV control unit (For CANADA with rear control unit).

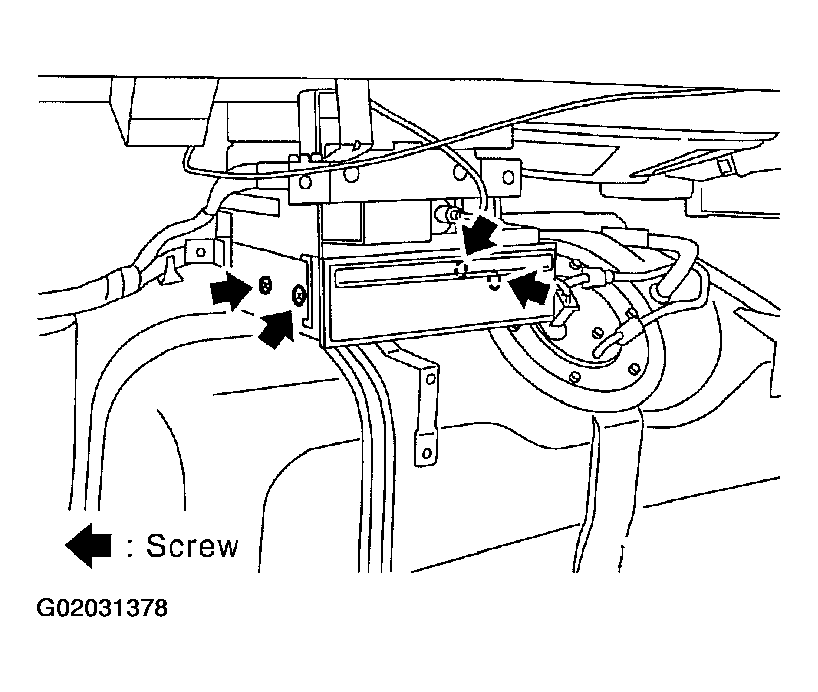

    Fig 1: Removing & Installing AV & NAVI Control Unit (For Canada With Rear Control Switch )
    G02031378Courtesy of NISSAN MOTOR CO., U.S.A.
