AV Communication Line Circuit Diagram (With Navigation System)

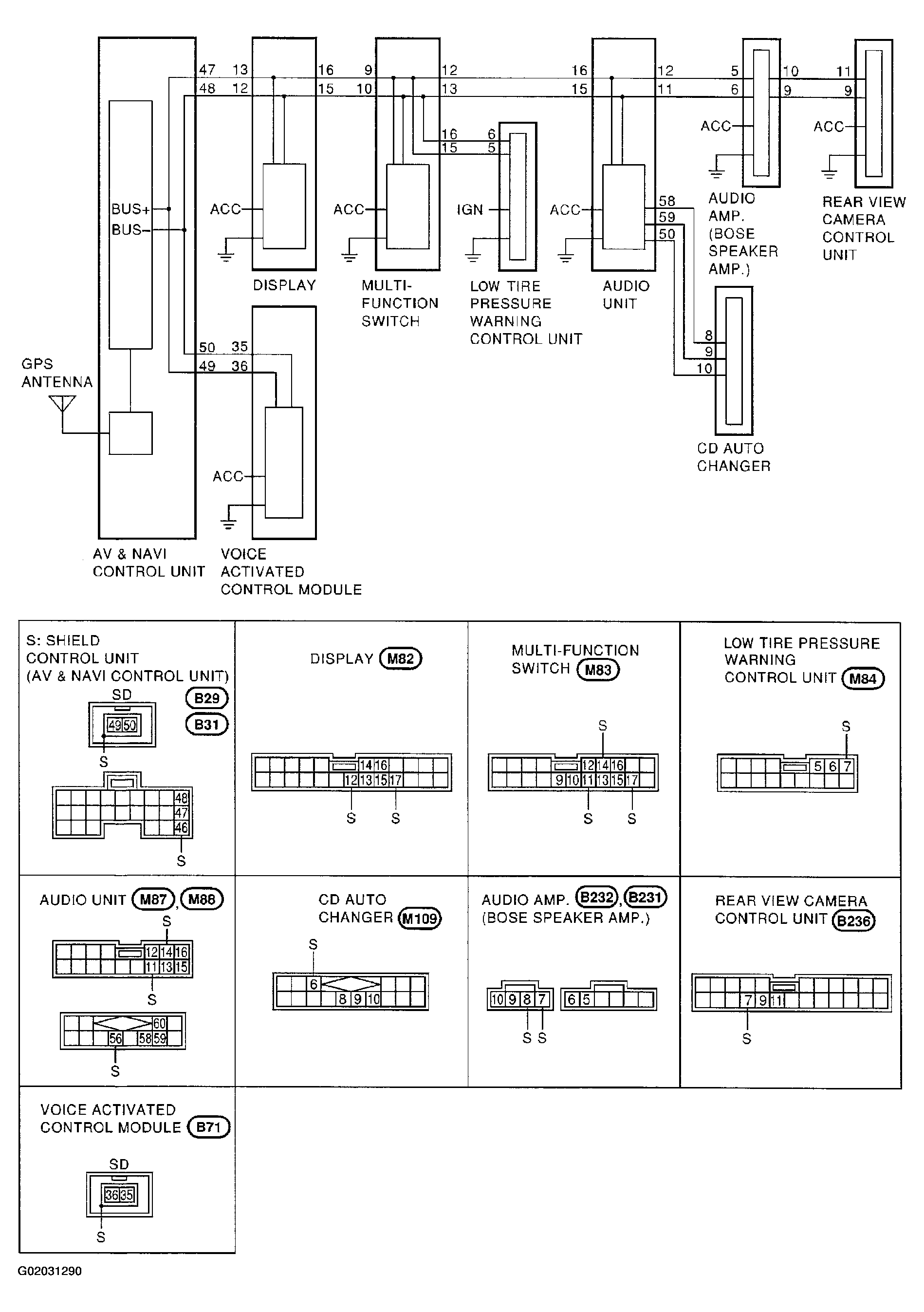

Fig 1: AV Communication Line Circuit Diagram (With Navigation System)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
