Terminals And Reference Value For Av And NAVI Control Unit And Av Control Unit

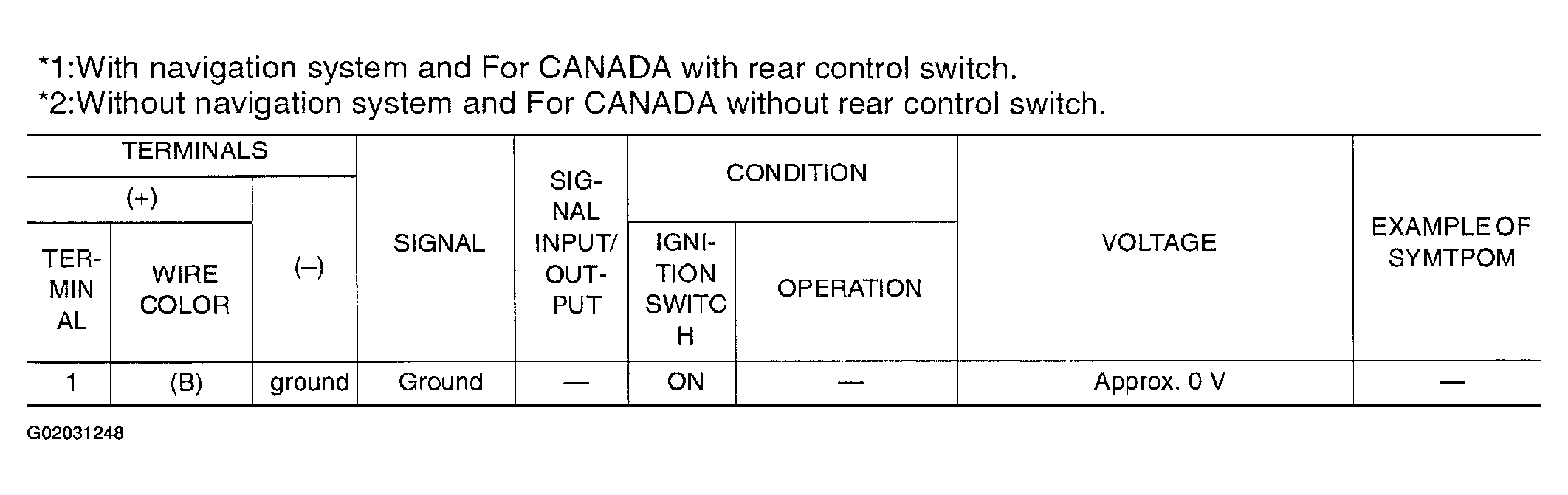

Fig 1: Terminals & Reference Value For AV & NAVI Control Unit & AV Control Unit (1 Of 5)
G02031248Courtesy of NISSAN MOTOR CO., U.S.A.

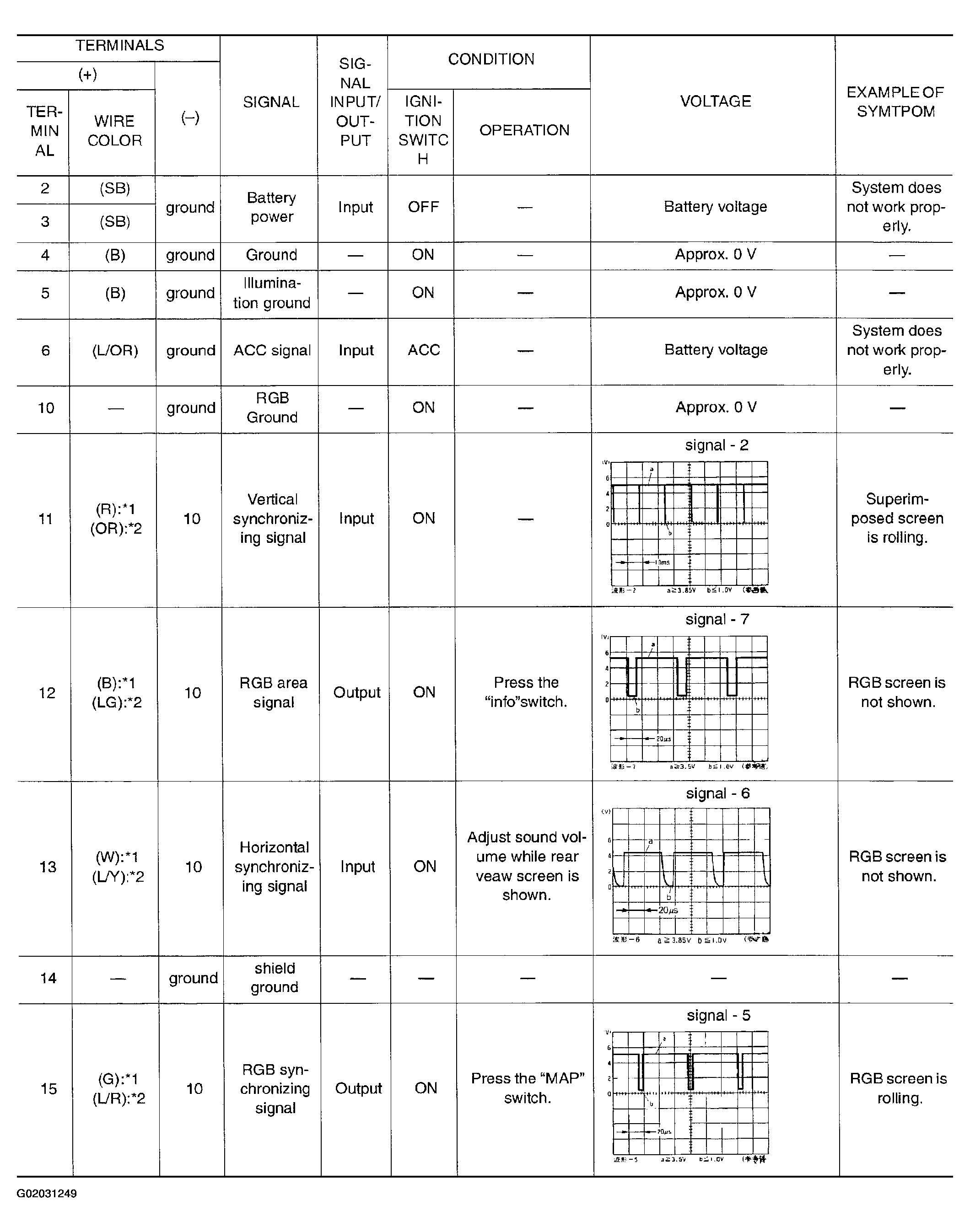

Fig 2: Terminals & Reference Value For AV & NAVI Control Unit & AV Control Unit (2 Of 5)
G02031249Courtesy of NISSAN MOTOR CO., U.S.A.

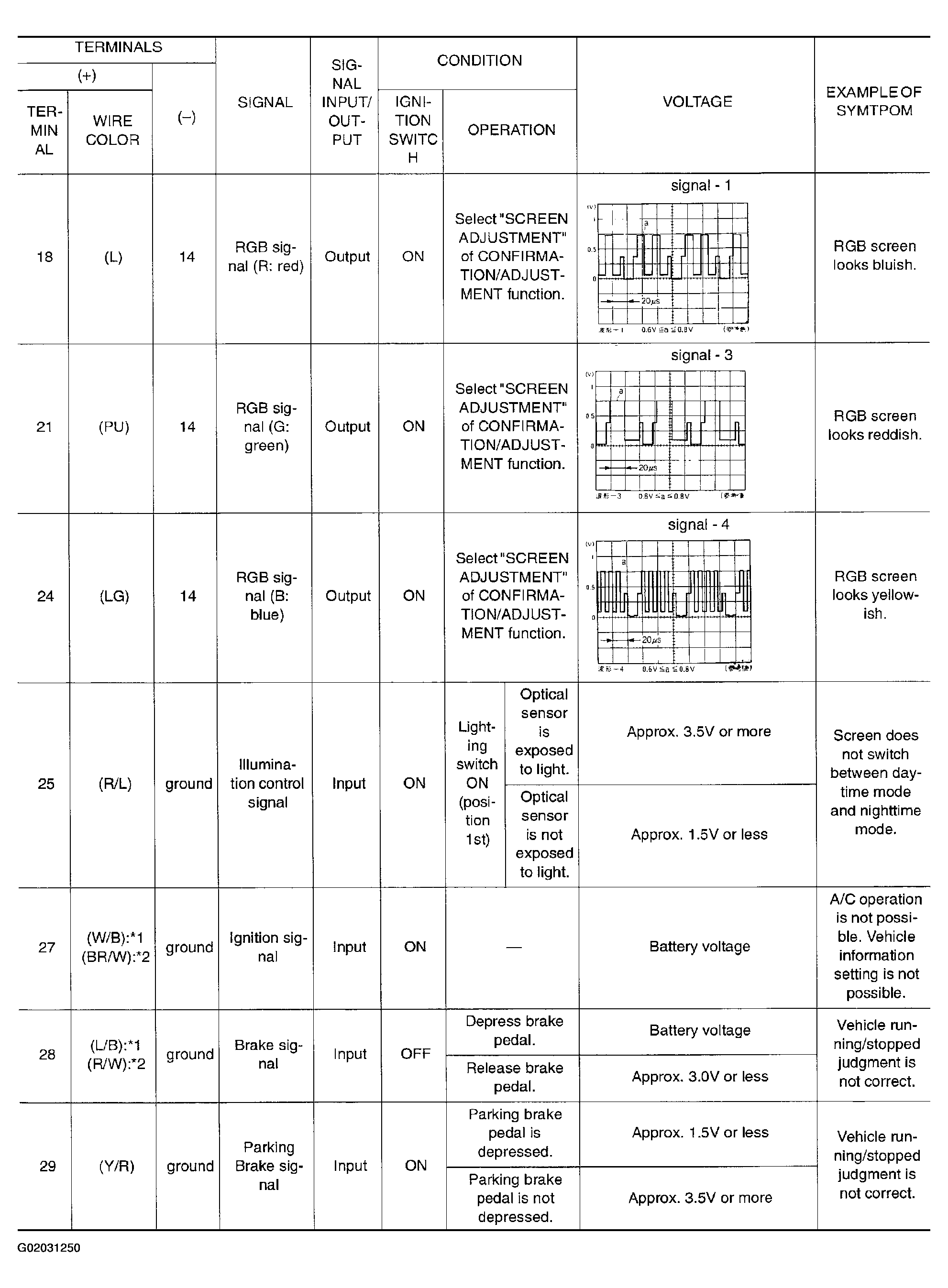

Fig 3: Terminals & Reference Value For AV & NAVI Control Unit & AV Control Unit (3 Of 5)
G02031250Courtesy of NISSAN MOTOR CO., U.S.A.

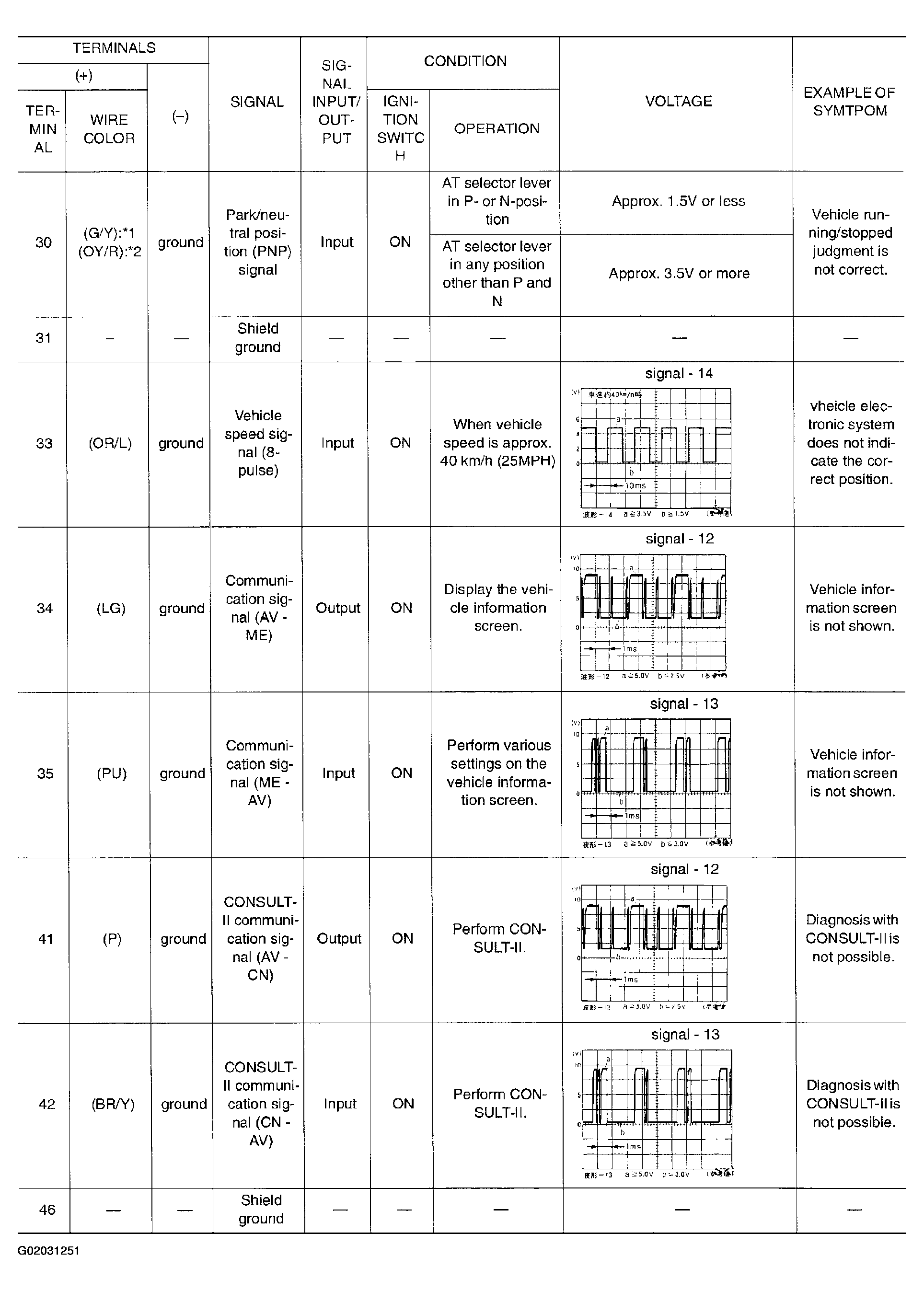

Fig 4: Terminals & Reference Value For AV & NAVI Control Unit & AV Control Unit (4 Of 5)
G02031251Courtesy of NISSAN MOTOR CO., U.S.A.

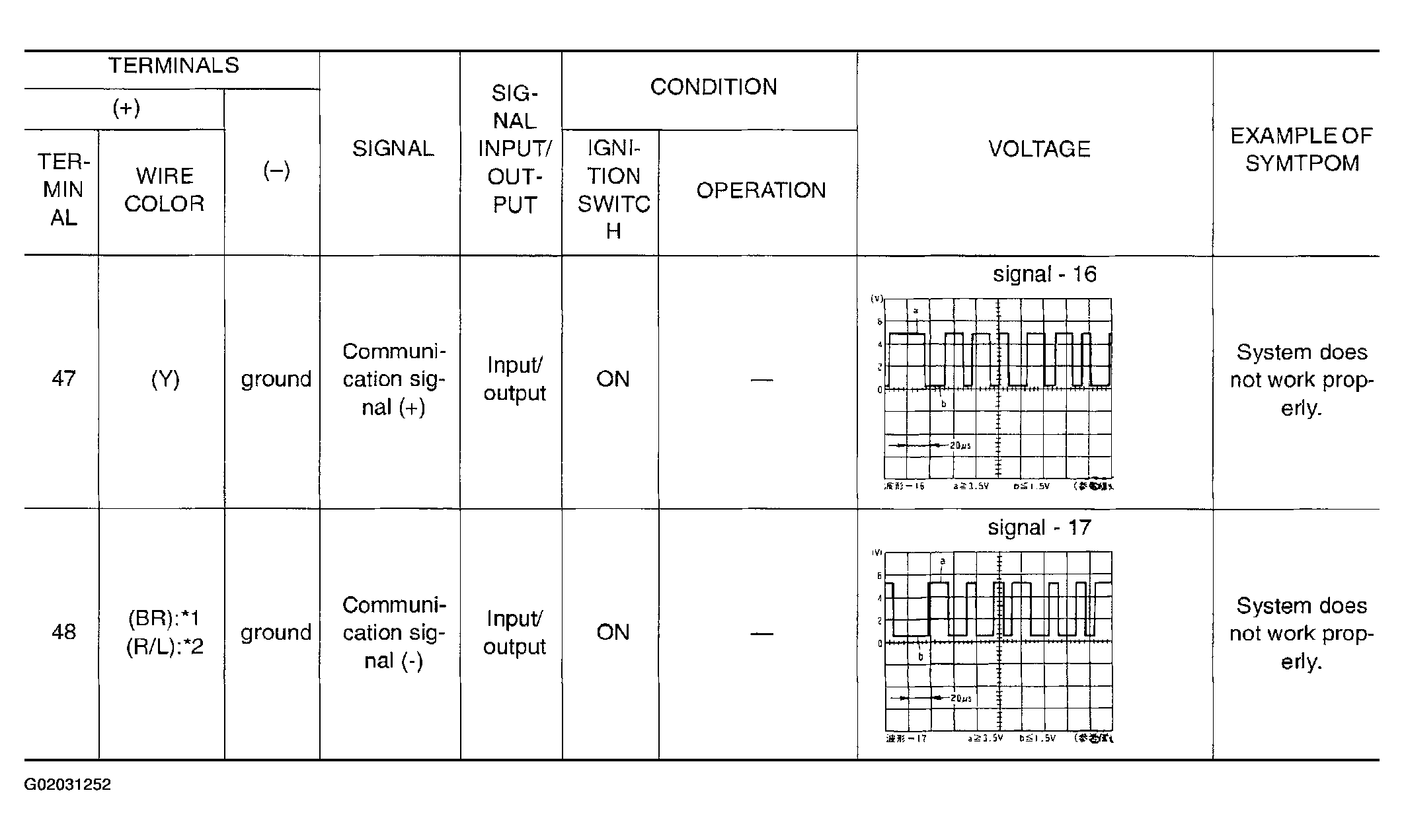

Fig 5: Terminals & Reference Value For AV & NAVI Control Unit & AV Control Unit (5 Of 5)
G02031252Courtesy of NISSAN MOTOR CO., U.S.A.
