During Shift Change

The necessary and adequate line pressure for speed change is set. Therefore, the line pressure characteristic is set according to the input torque and speed change type.

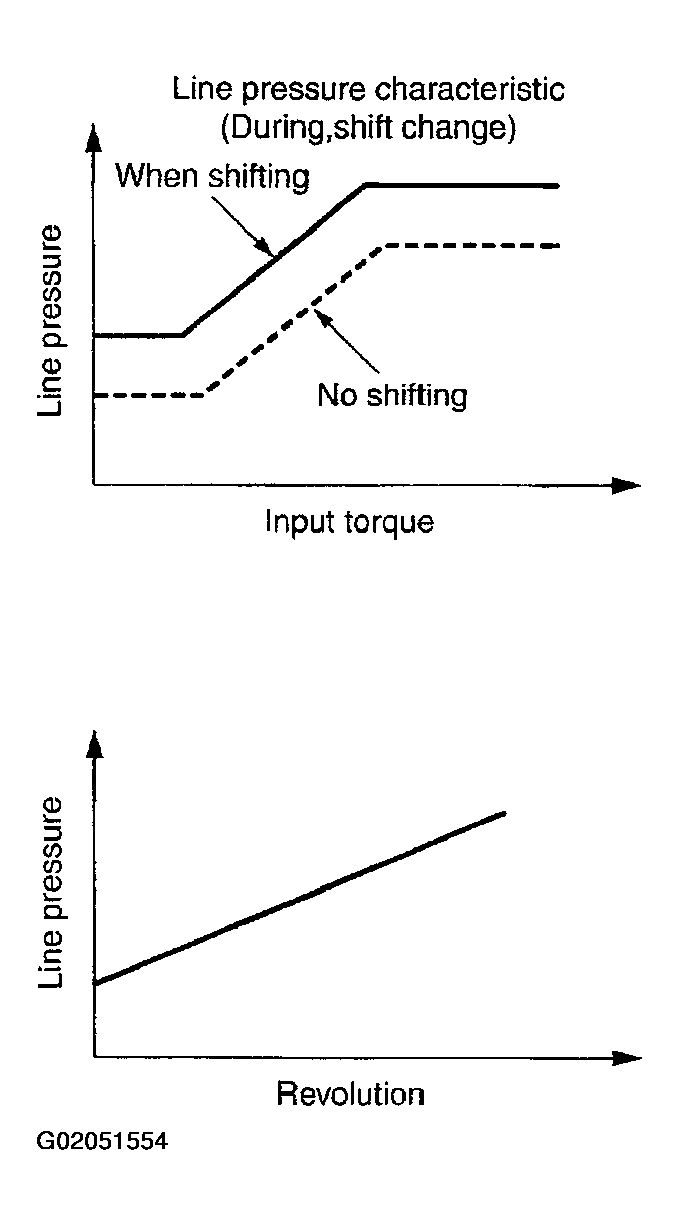

Fig 1: During Shift Change Graph
G02051554Courtesy of NISSAN MOTOR CO., U.S.A.
