Control Cable: Notes

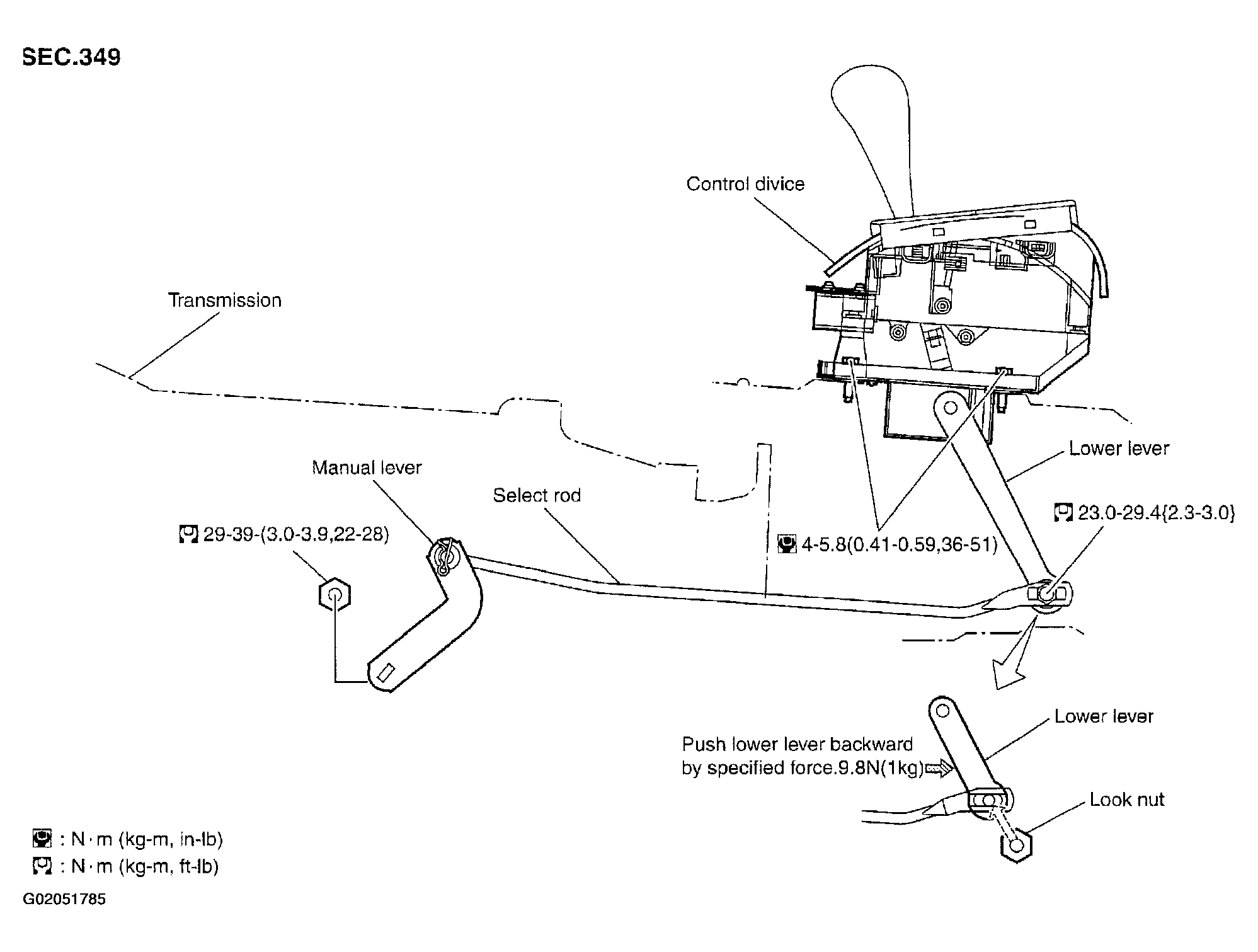

Fig 1: Identifying Shift Control System Control Cable
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
