Control Device

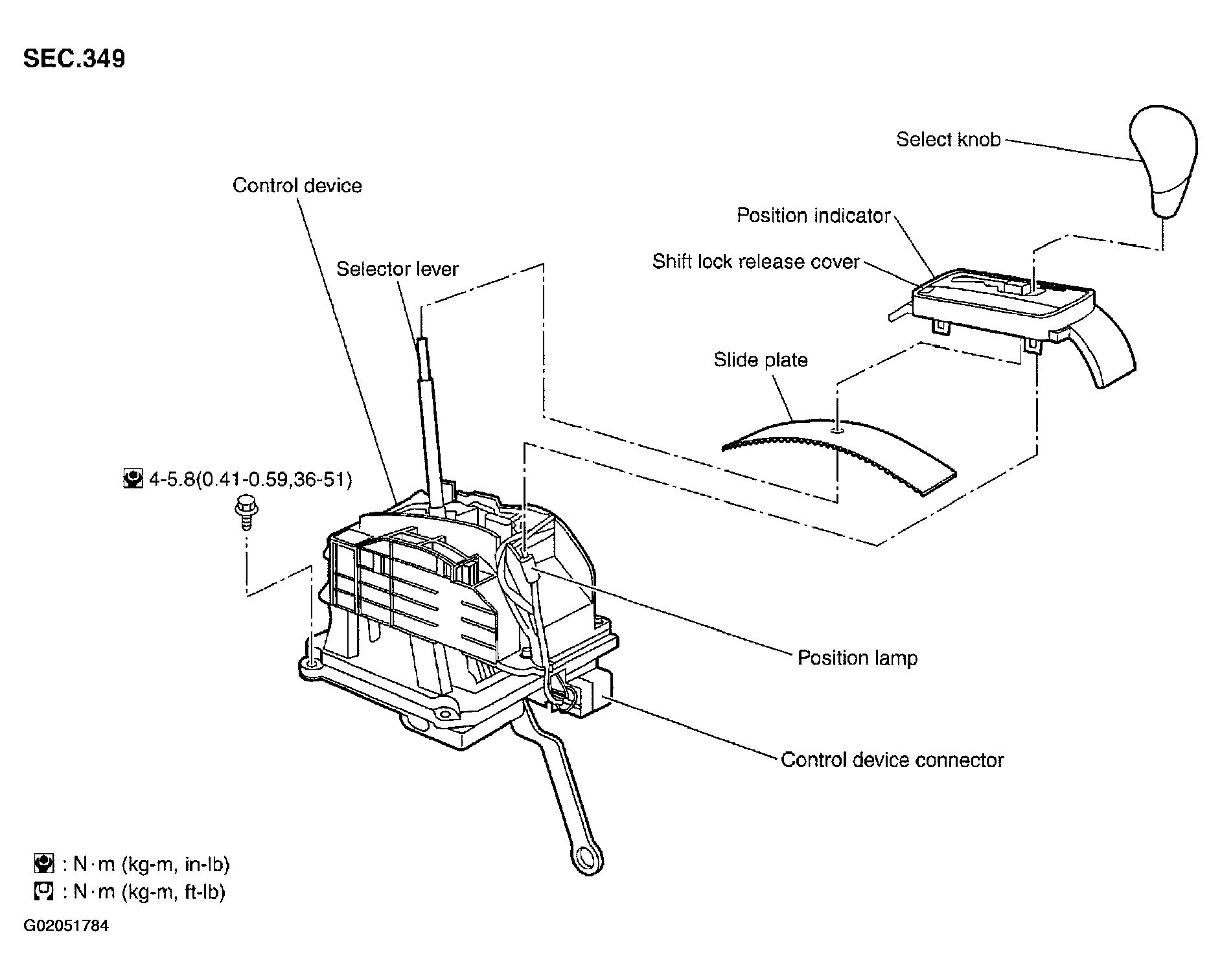

Fig 1: Identifying Shift Control System Control Device
G02051784Courtesy of NISSAN MOTOR CO., U.S.A.
