ASCD Wire Adjustment

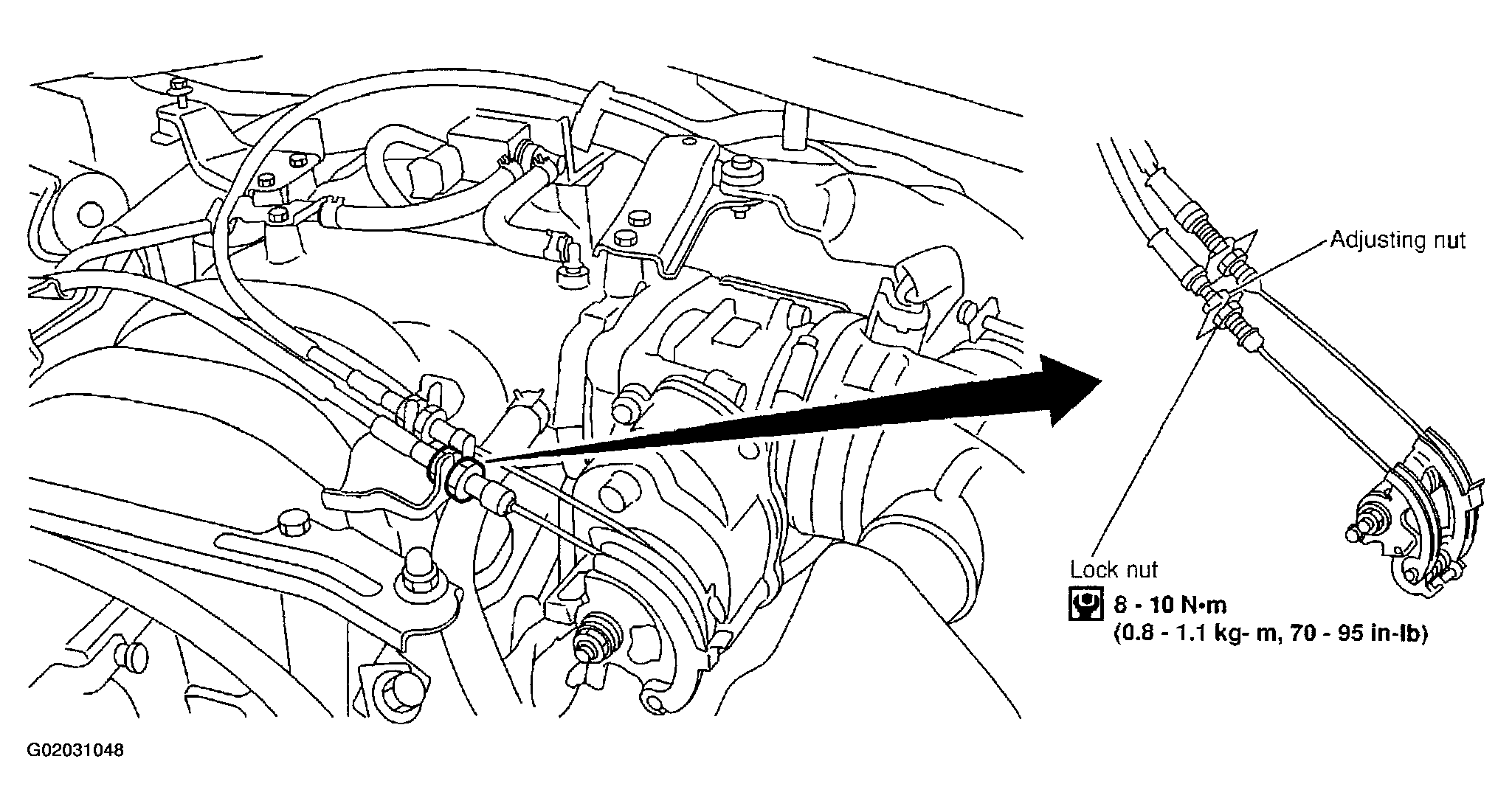

Fig 1: Adjusting ASCD Wire

G02031048

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Be careful not to twist ASCD wire when removing it.
Do not tense ASCD wire excessively during adjustment.

Adjust the tension of ASCD wire in the following manner.

Loosen lock nut and adjusting nut.
Make sure that accelerator wire is properly adjusted.
Tighten adjusting nut just until throttle drum starts to move.
Loosen adjusting nut again 1/2 to 1 turn.
Tighten lock nut to specified torque holding the adjusting nut.
