CONSULT-II Data Monitor

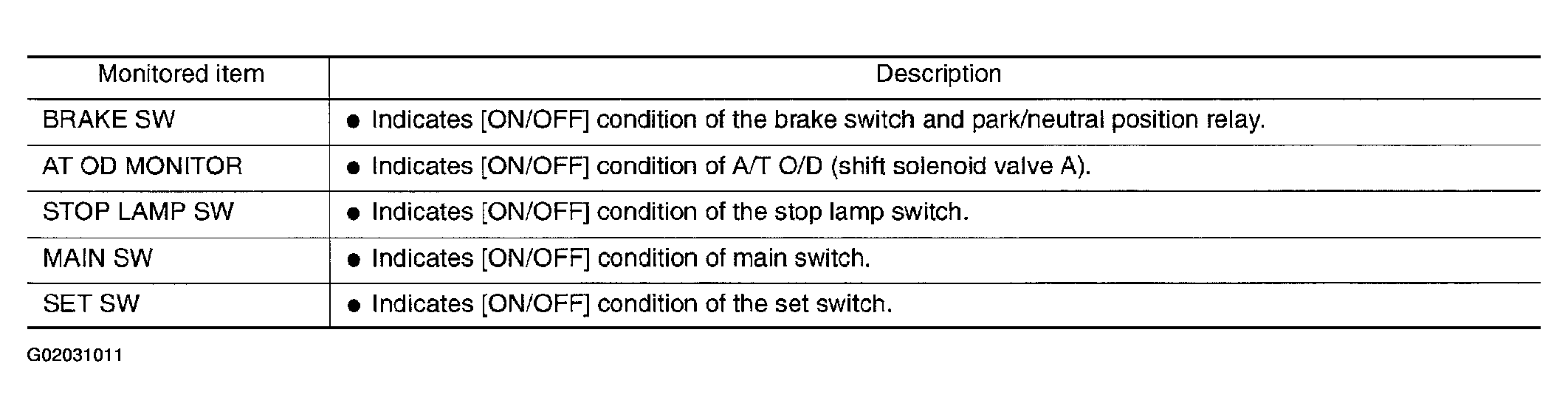

Fig 1: Monitor Item Description (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

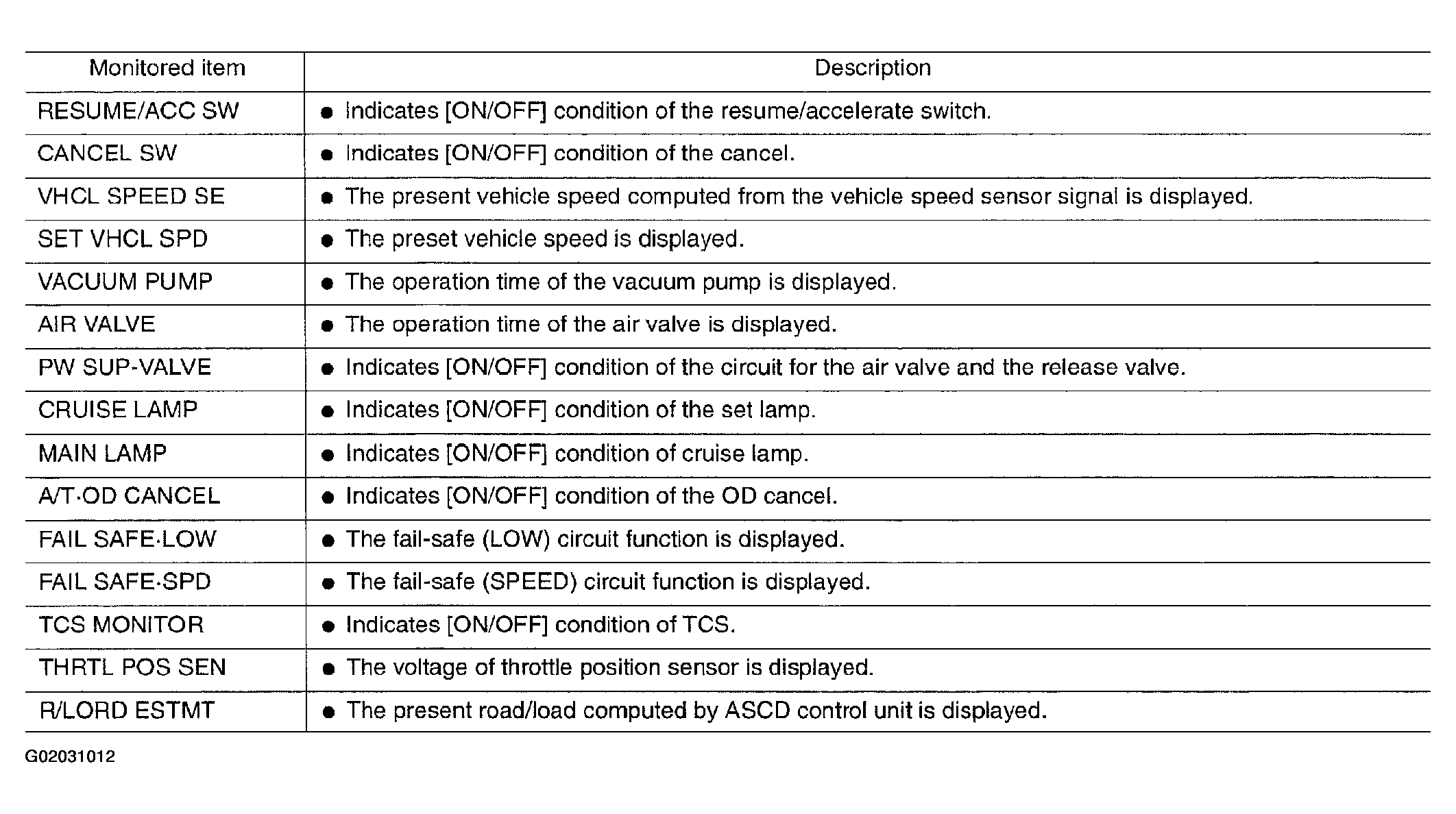

Fig 2: Monitor Item Description (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
