Electronic Key System: Schematic

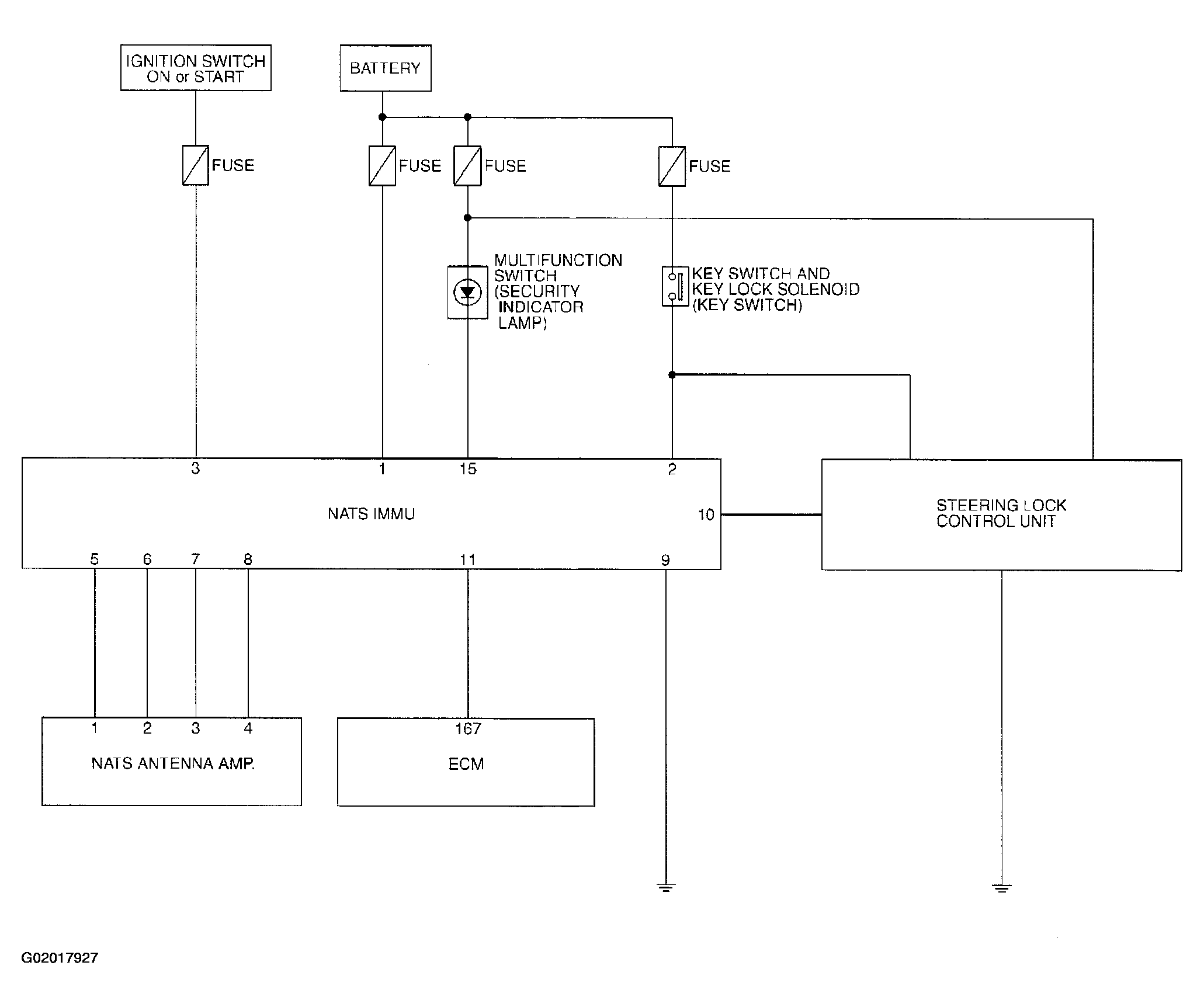

Fig 1: Electronic Key System Schematic Diagram

G02017927

Courtesy of NISSAN MOTOR CO., U.S.A.
