Removal and Installation: Notes

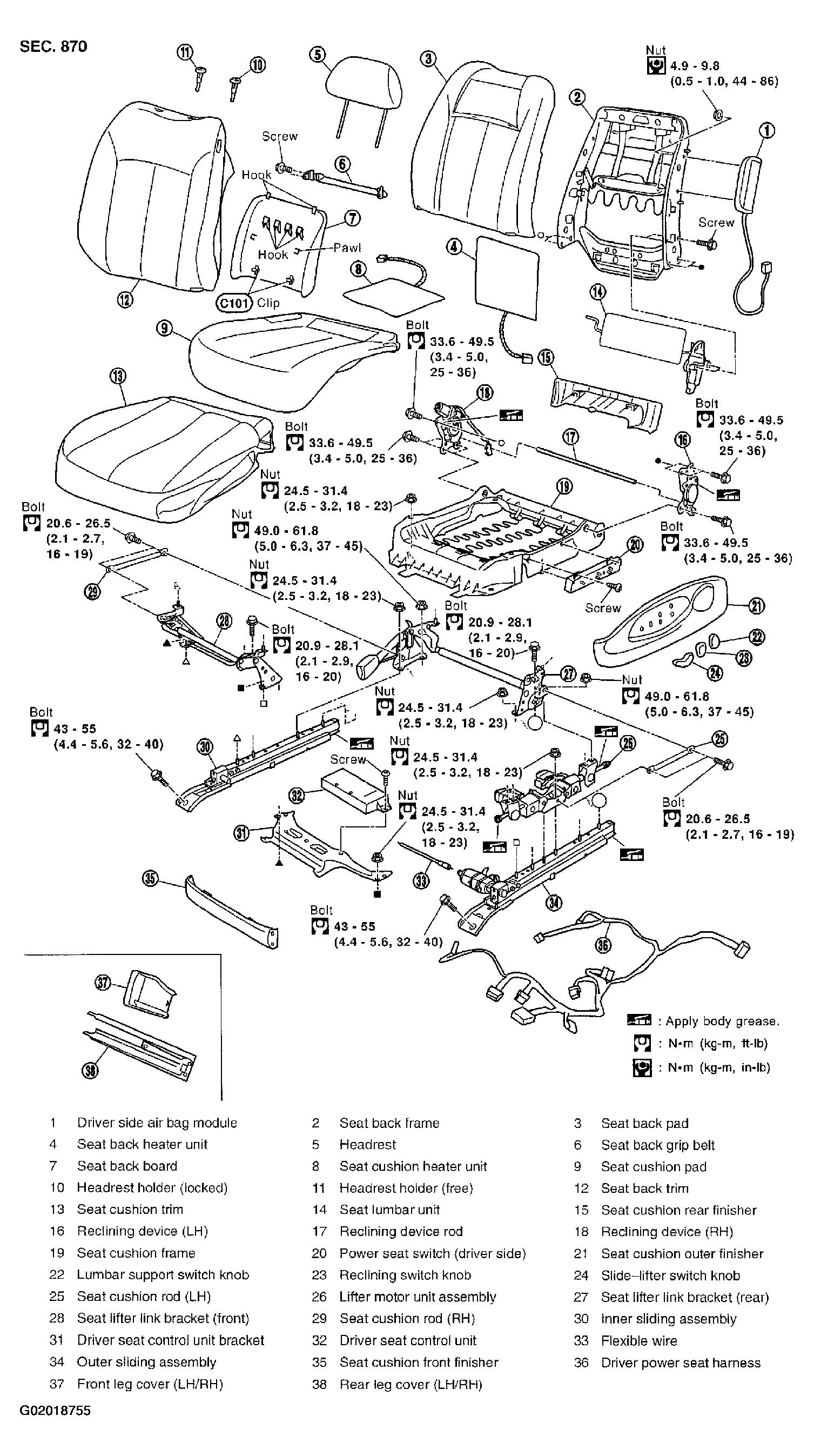

Fig 1: Exploded View Of Driver Side Power Seat
G02018755Courtesy of NISSAN MOTOR CO., U.S.A.

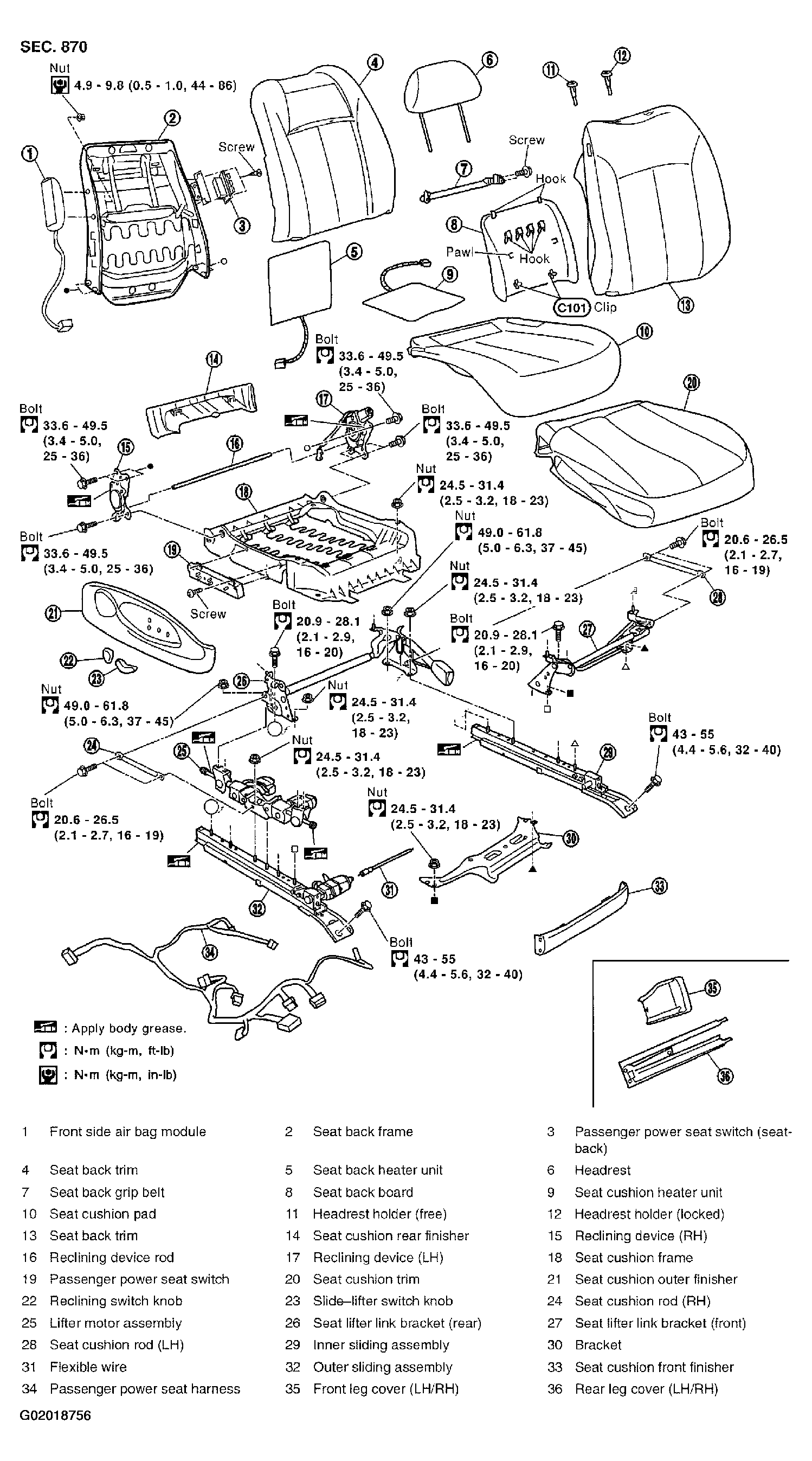

Fig 2: Exploded View Of Passenger Side Power Seat
G02018756Courtesy of NISSAN MOTOR CO., U.S.A.
