Rear Window Defogger: Schematic

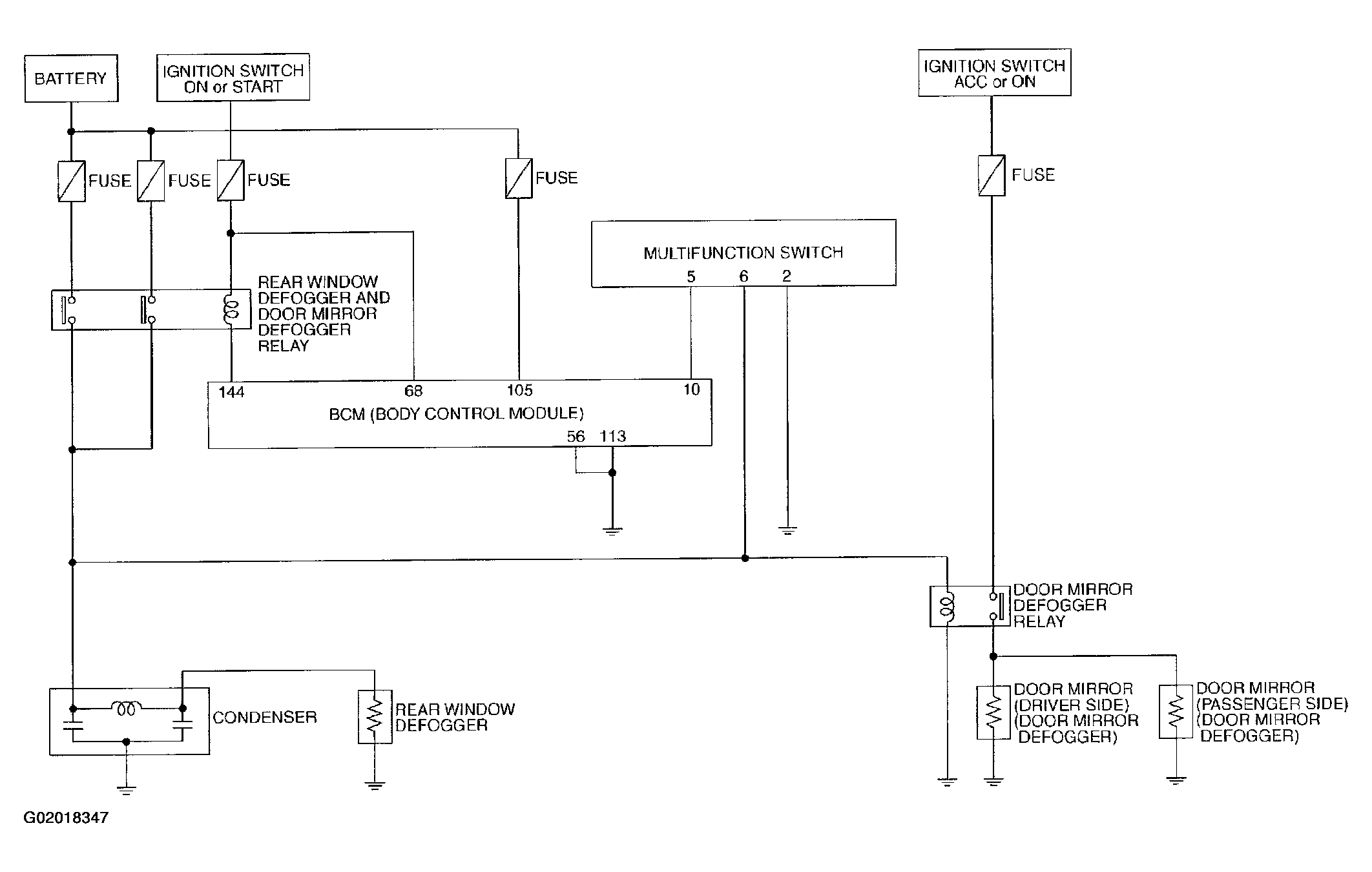

Fig 1: Rear Window Defogger Schematic Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
