Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

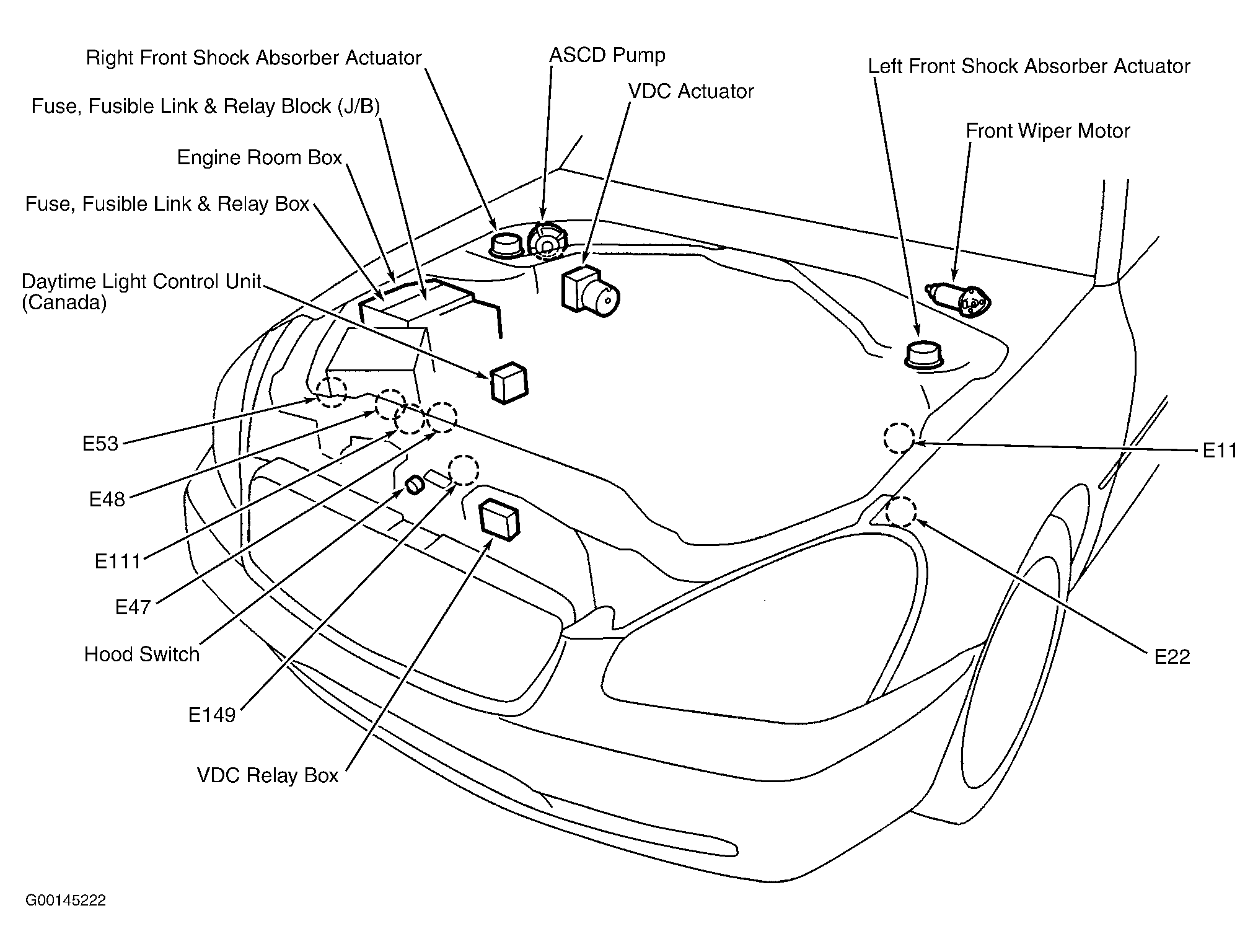

Engine Room Box In right front side of engine compartment. See Figure .

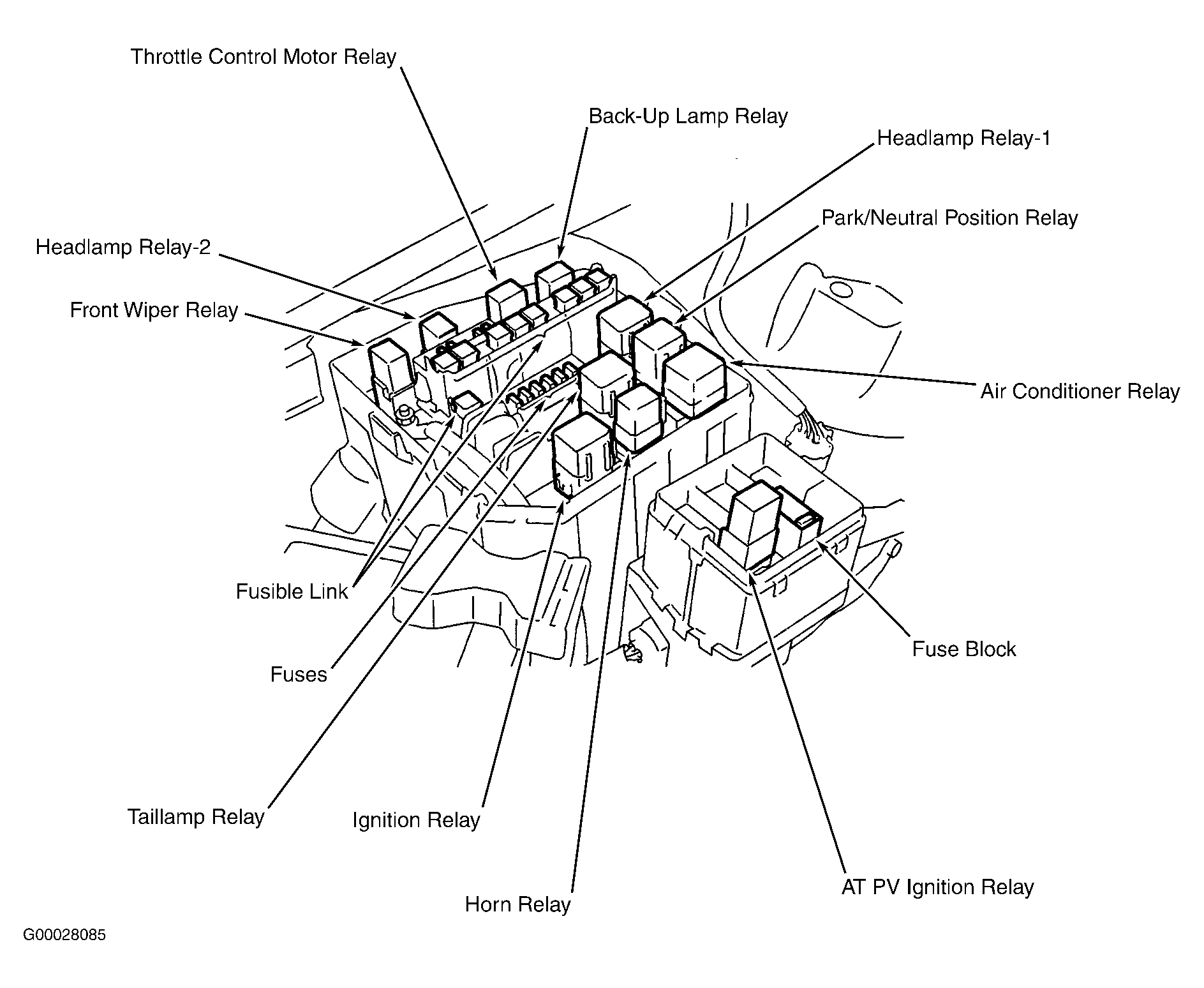

Fuse Block Right side of engine compartment. See Figure .

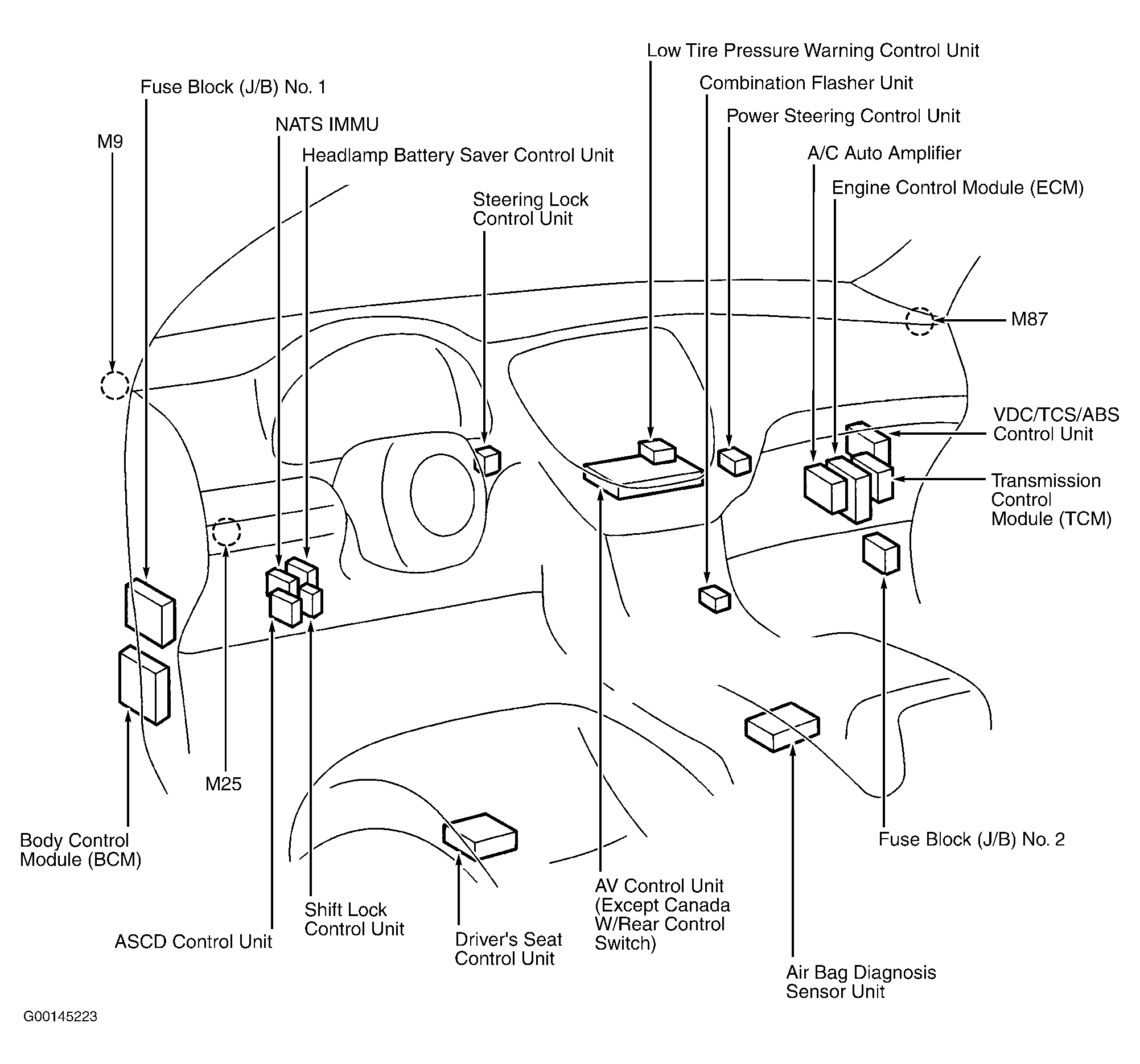

Fuse Block (J/B) No. 1 Behind left end of dash. See Figure .
Fuse Block (J/B) No. 2 Behind right kick panel. See Figure .
Fuse, Fusible Link & Relay Box In engine room box. See Figure .
Fuse, Fusible Link & Relay Block (J/B) In engine room box. See Figure .

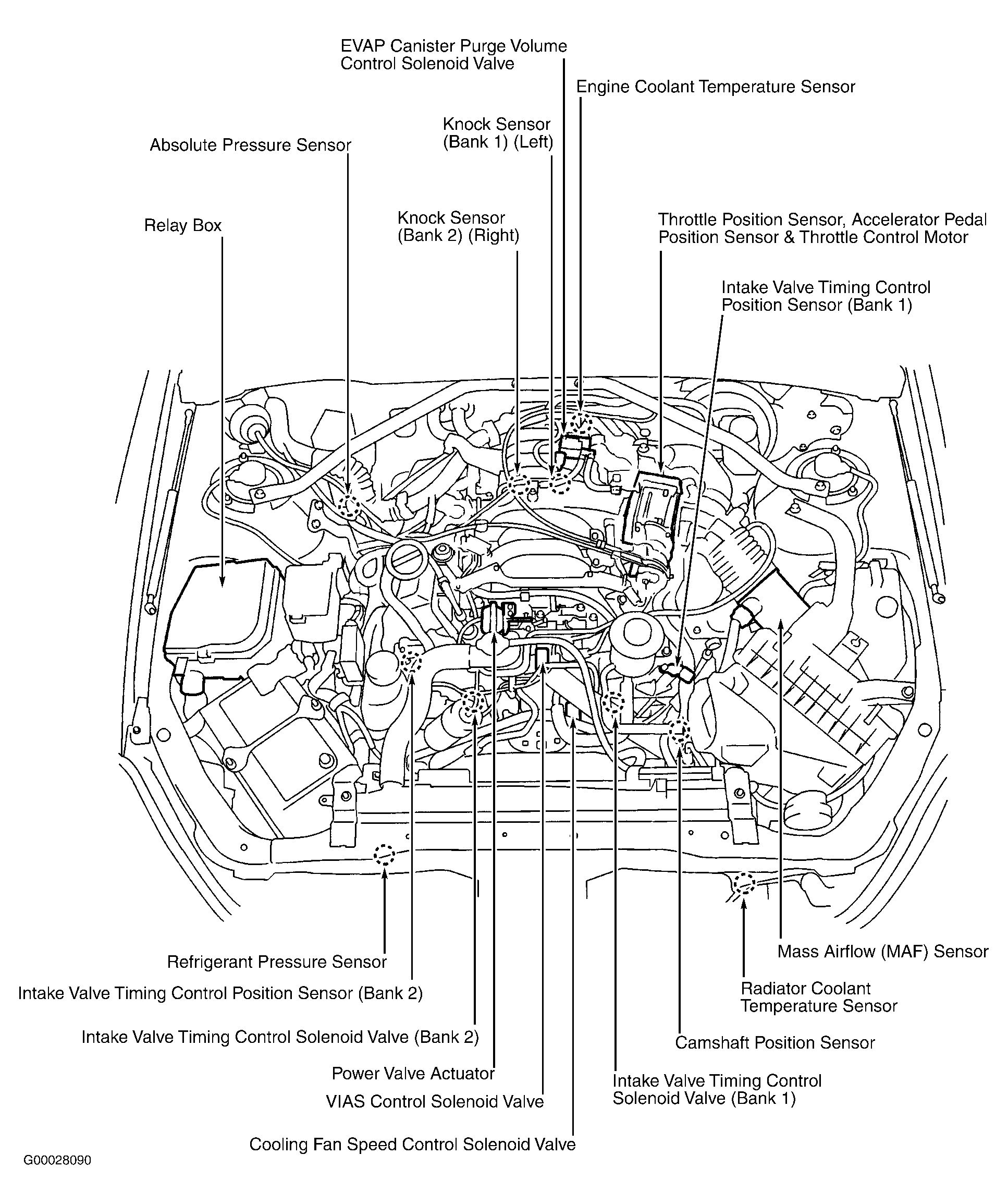

Relay Box At right side of engine compartment. See Figure .
