Console Box Assembly

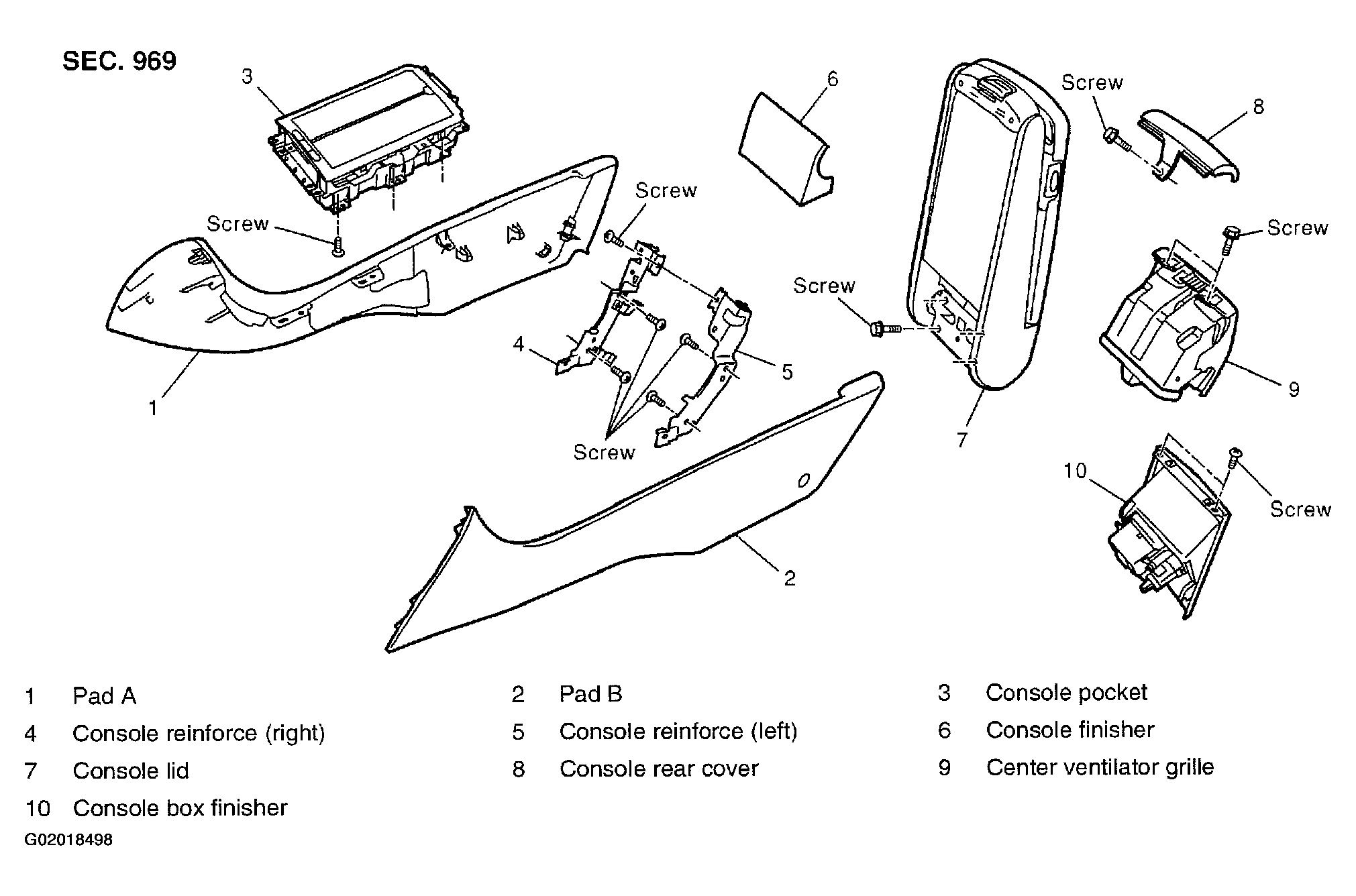

Fig 1: Exploded View Of Console Box Assembly Components
G02018498Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove console finisher.
  2. Remove console rear cover.
  3. Remove console lid.
  4. Remove center ventilator grille.
  5. Remove console box finisher.
  6. Remove console box.
  7. Remove Bracket.
