Front Disc Brake: Installation

CAUTION:
  • Refill with new brake fluid "DOT 3".
  • Never reuse drained brake fluid.
  1. Install caliper assembly.
  2. Install brake hose to caliper securely.
  3. Install all parts and secure all bolts.
  4. Bleed air. Refer to "BLEEDING BRAKE SYSTEM " .

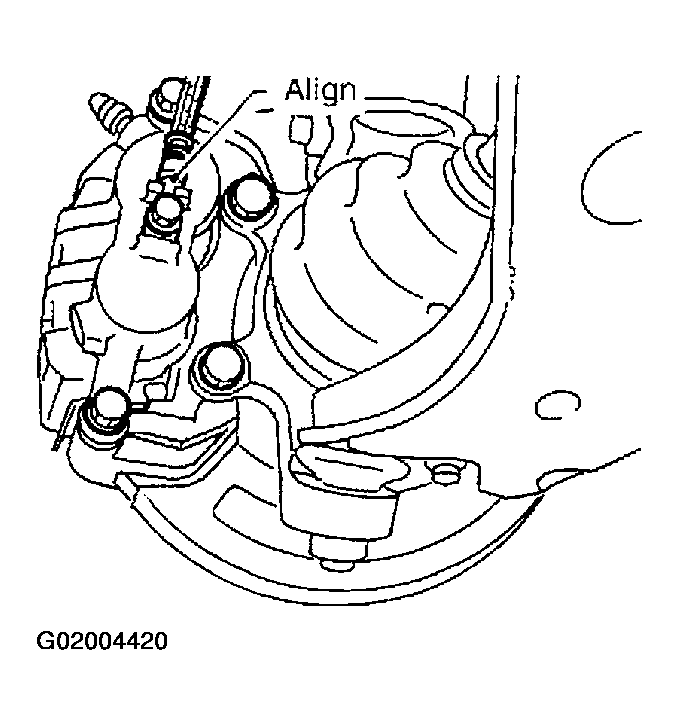

    Fig 1: Installing Brake Hose To Caliper
    G02004420Courtesy of NISSAN MOTOR CO., U.S.A.
