Pad Replacement

WARNING: Clean brakes with a vacuum dust collector to minimize the hazard of airborne particles or other materials.

CAUTION:

When cylinder body is open, do not depress brake pedal, or piston will pop out.
Be careful not to damage piston boot or get oil on rotor. Always replace shims when replacing pads.
If shims are rusted or show peeling of the rubber coat, replace them with new shims.
It is not necessary to remove connecting bolt except for disassembly or replacement of caliper assembly. In this case, suspend cylinder body with wire so as not to stretch brake hose.
Carefully monitor brake fluid level because brake fluid will return to reservoir when pushing back piston.

Remove master cylinder reservoir cap.
Remove lower pin bolt.

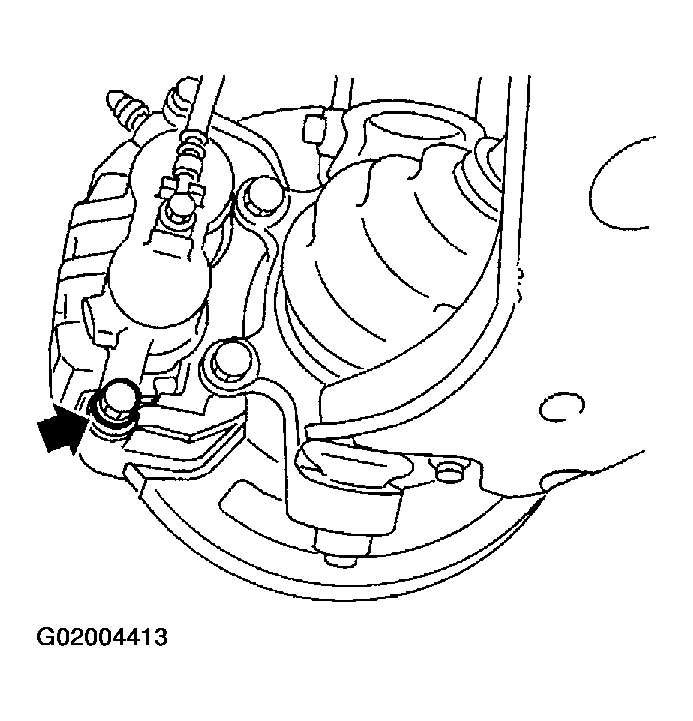

Fig 1: Removing Lower Pin Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
Open cylinder body upward. Then remove pad retainers, and inner and outer shims.
1. Standard pad thickness:
  1. 11.0 mm (0.433 in)
2. Pad wear limit:
  1. 2.0 mm (0.079 in)
Carefully monitor brake fluid level because brake fluid will return to reservoir when pushing back piston.

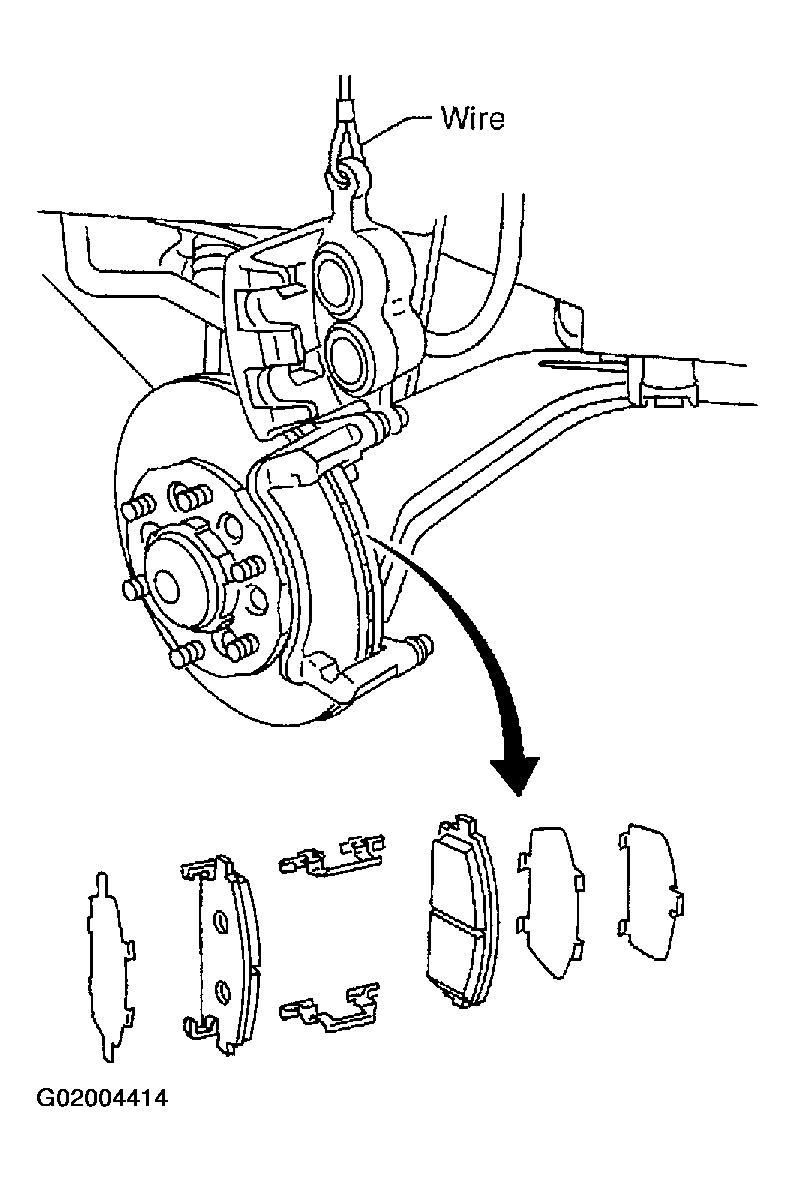

Fig 2: Removing Pad Retainers And Inner And Outer Shims
