Front Sensor Rotor: Installation
Install the sensor rotor using suitable drift and press.
Always replace sensor rotor with new one.
Pay attention to the direction of front sensor rotor as shown in figure.

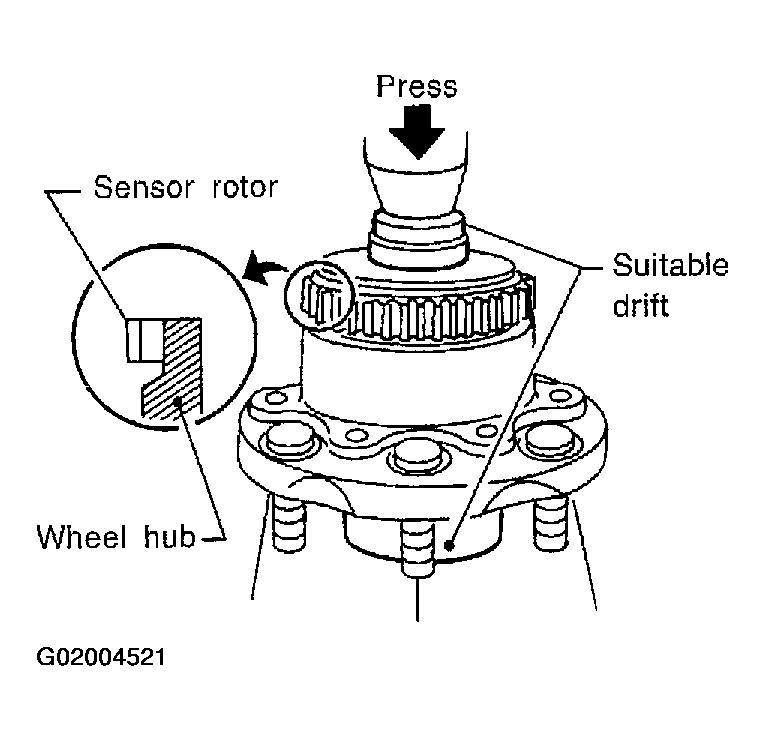

Fig 1: Installing Sensor Rotor Using Drift
Courtesy of NISSAN MOTOR CO., U.S.A.
