Power Steering Oil Pump: Components

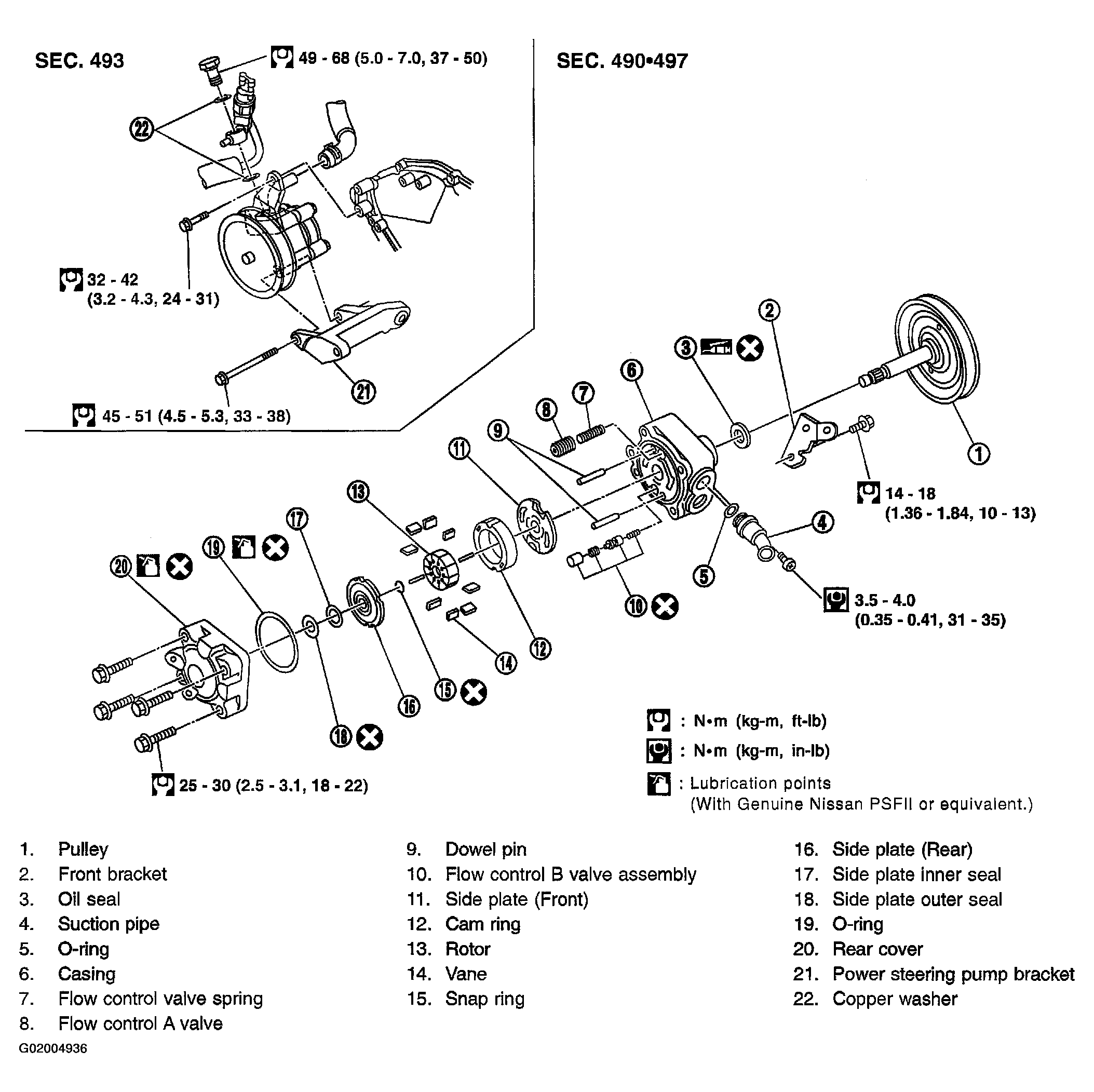

Fig 1: Exploded View Of Power Steering Oil Pump Component
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
