Front Disc Brake: Assembly

  1. Insert piston seal into groove on cylinder body.
  2. With piston boot fitted to piston, insert piston boot into groove on cylinder body and install piston.
  3. Properly secure piston boot

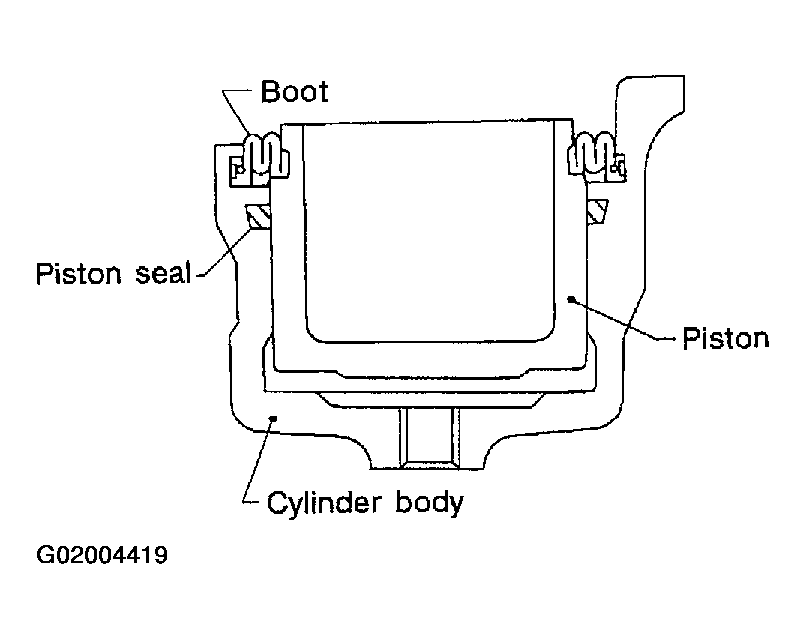

    Fig 1: Identifying Piston Seal Into Groove On Cylinder Body
    G02004419Courtesy of NISSAN MOTOR CO., U.S.A.
