Parking Brake Control: Components

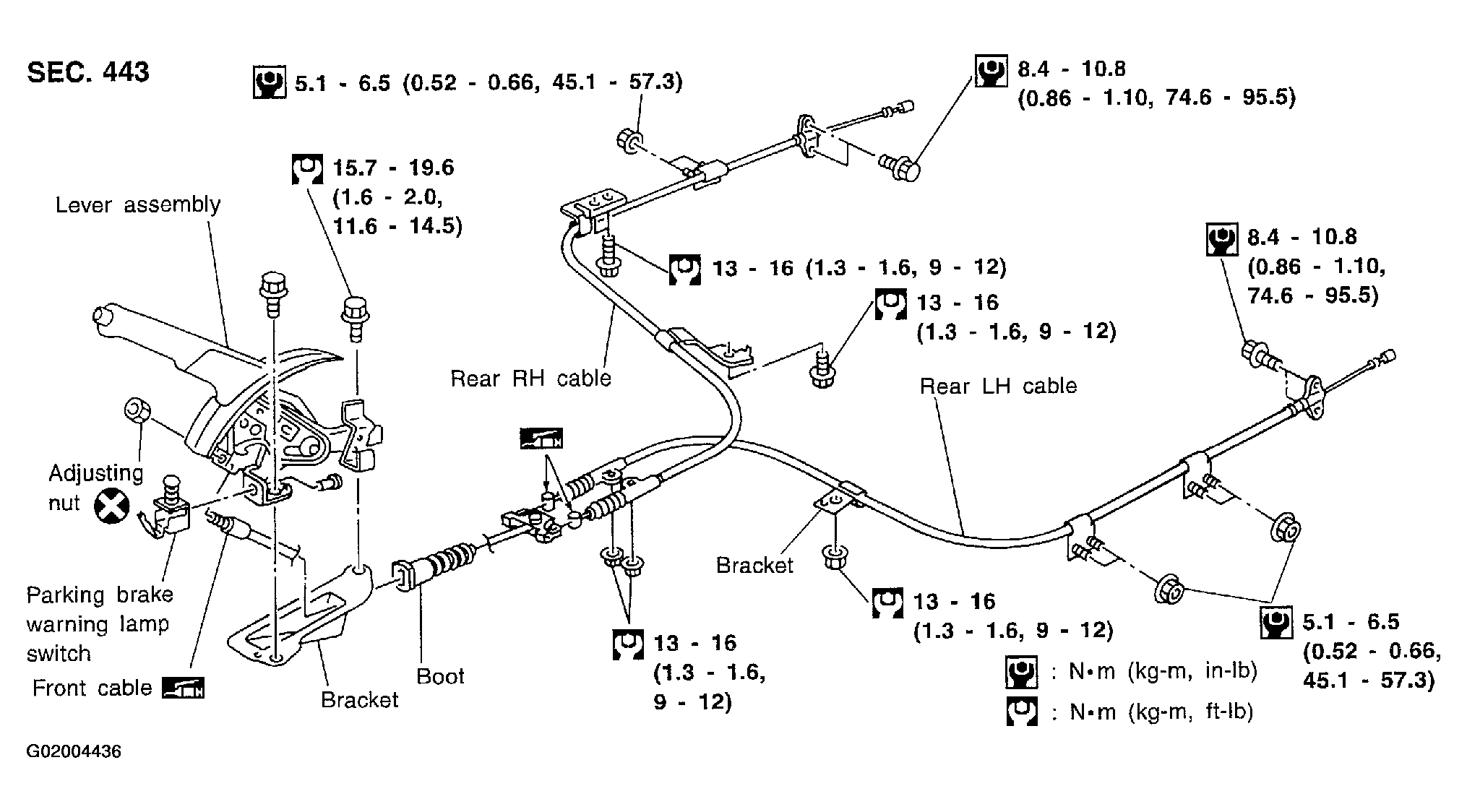

Fig 1: Exploded View Of Parking Brake Control And Torque Specifications
G02004436Courtesy of NISSAN MOTOR CO., U.S.A.
