Front Wheel Sensor

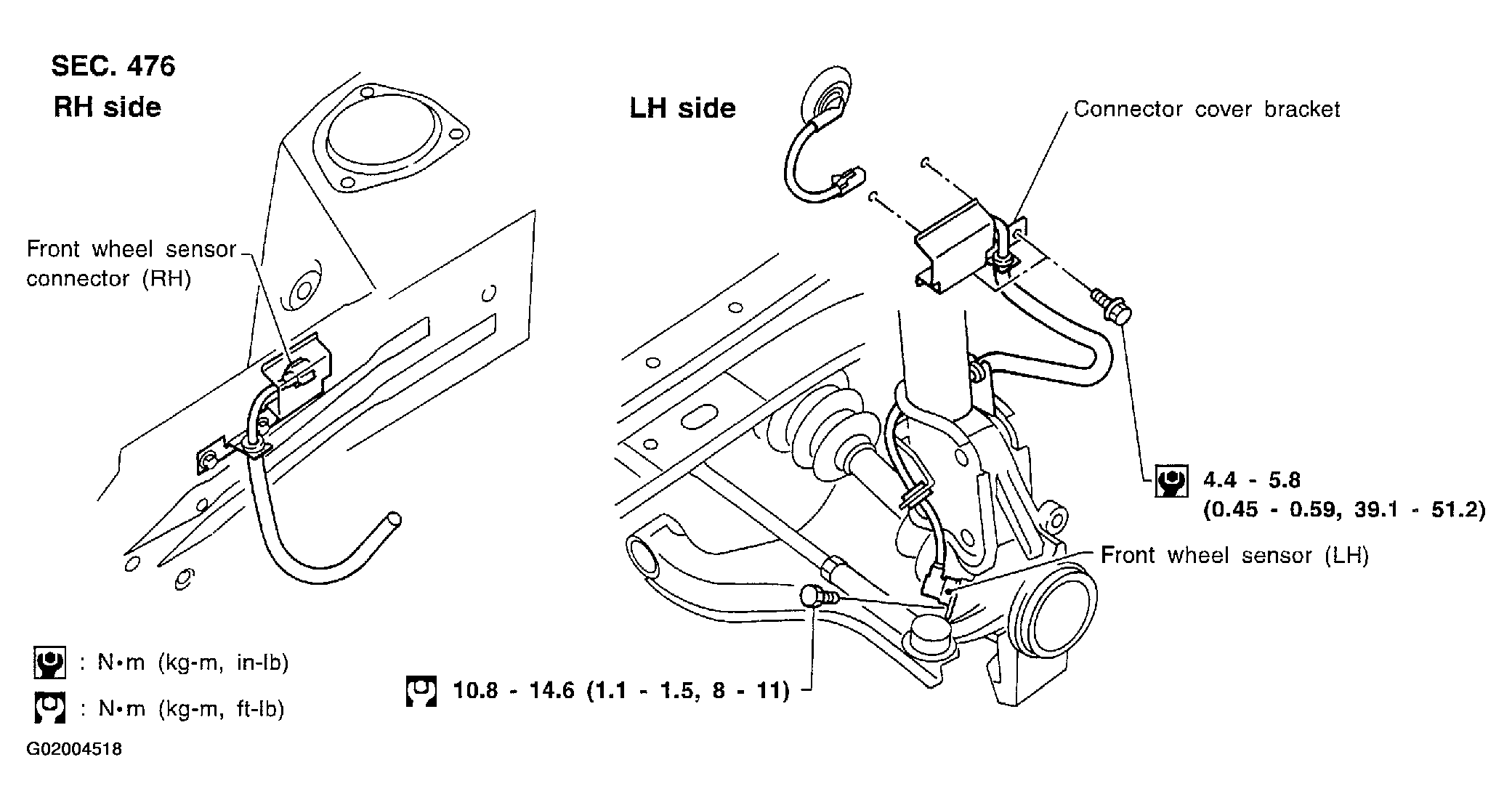

Fig 1: Front Wheel Sensor And Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
