Disassembly And Assembly

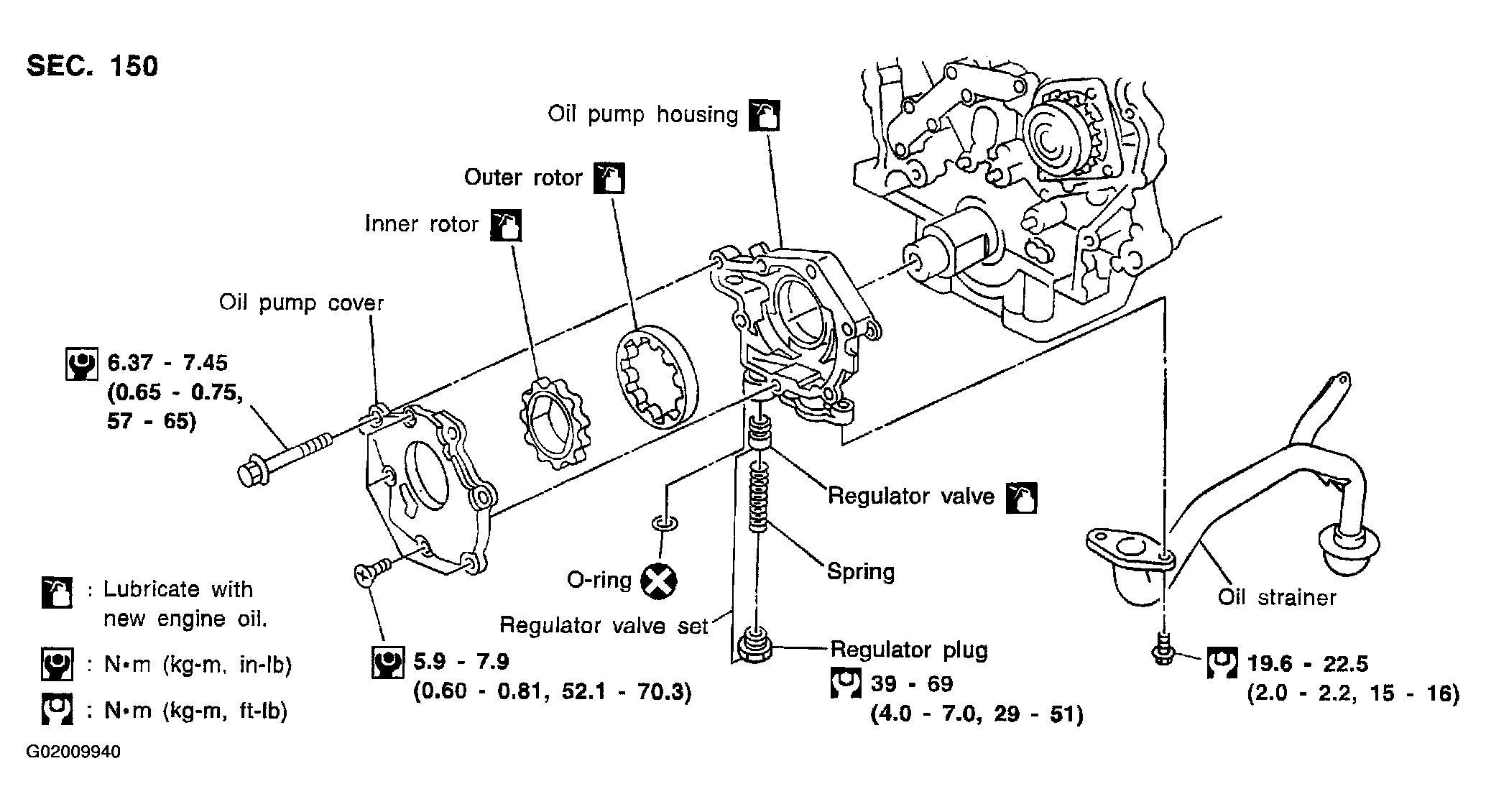

Fig 1: Exploded View Of Oil Pump
G02009940Courtesy of NISSAN MOTOR CO., U.S.A.
