Checking Fluid Level

Check fluid level.

Use the correct range of the dipstick depending on the fluid temperature. Use the "HOT" range at 50 to 80°C (122 to 176°F), or the "COLD" range at 0 to 30°C (32 to 86°F).

CAUTION:

Do not overfill.
Recommended fluid is Genuine Nissan PSF II or equivalent.

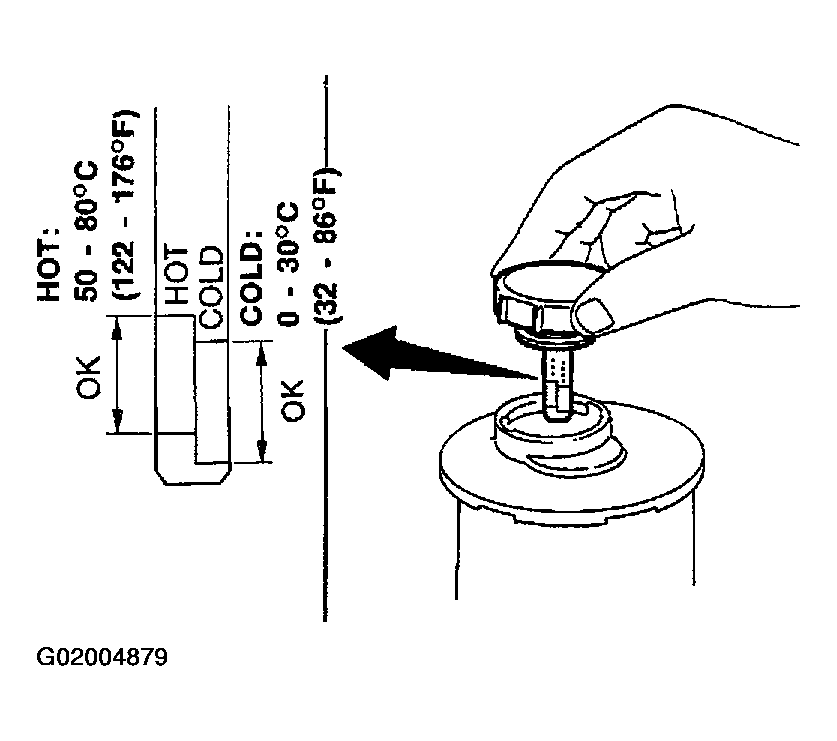

Fig 1: Checking Fluid Level

Courtesy of NISSAN MOTOR CO., U.S.A.
