Power Steering Gear And Linkage: Components

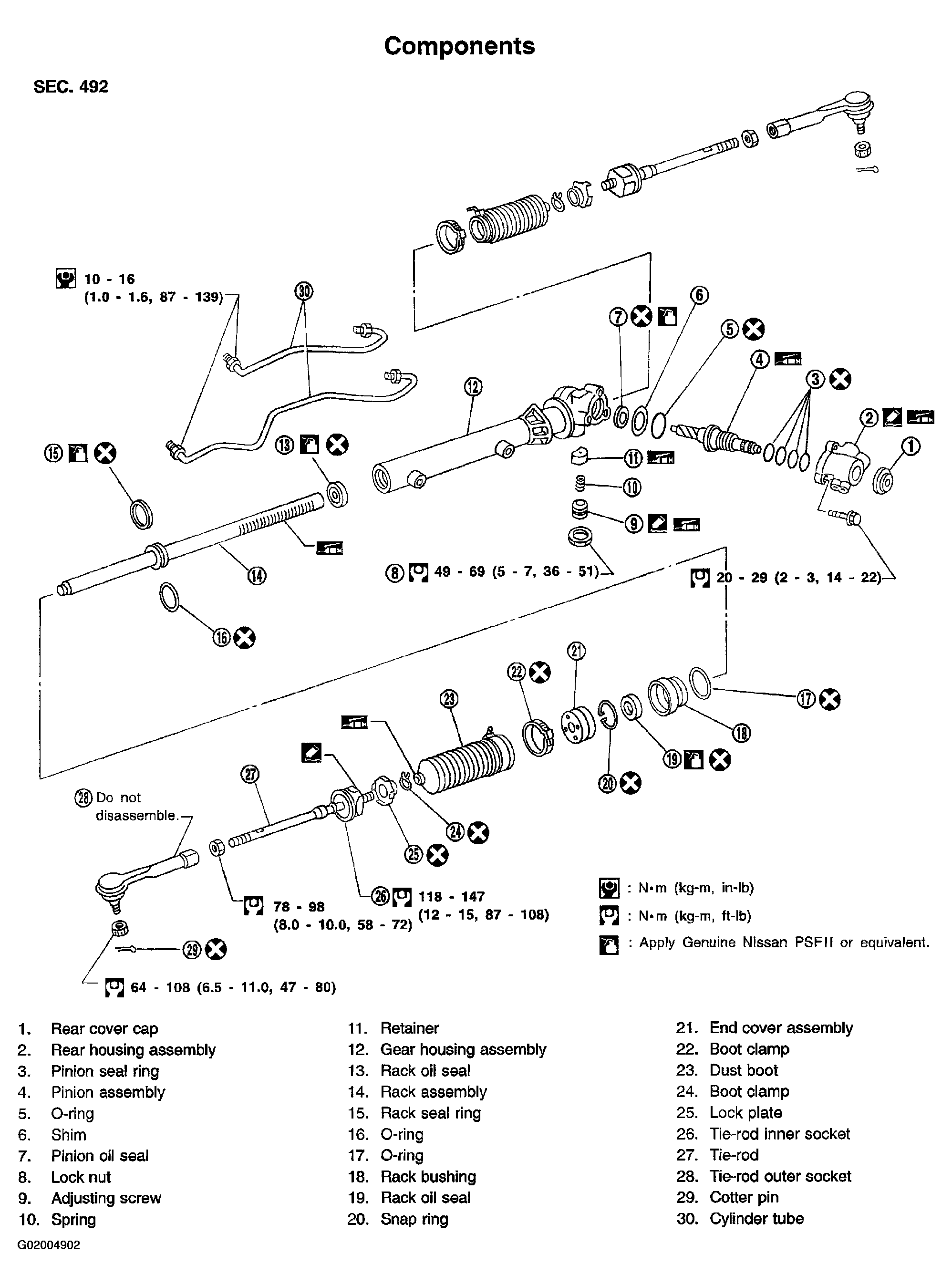

Fig 1: Exploded View Of Power Steering Gear And Linkage Components
G02004902Courtesy of NISSAN MOTOR CO., U.S.A.
