Check ACC Switch

CHECK ACC SWITCH

With CONSULT-II

Check ACC switch ("ACC ON SW") in "DATA MONITOR" mode with CONSULT-II.

MONITOR ITEM AND CONDITION SPECIFICATIONS

Monitor item	Condition
ACC SW	Ignition switch position is ACC or ON : ON
ACC SW	Ignition switch position is OFF : OFF

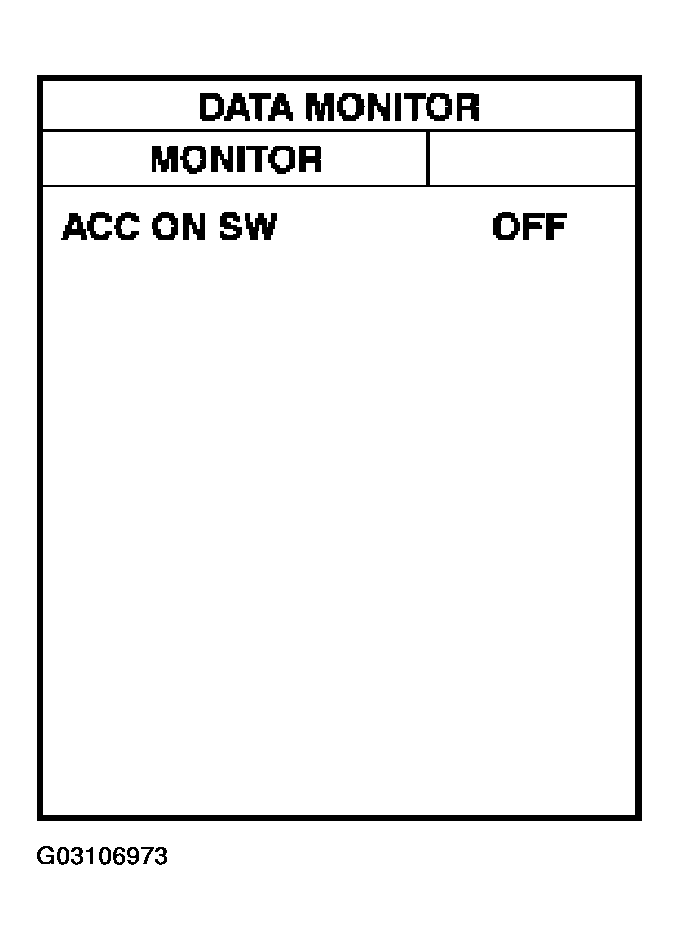

Fig 1: Checking ACC Switch With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector and ground.

BCM CONNECTOR VOLTAGE SPECIFICATIONS

Item	(+)		(-)	Condition	Voltage (V) Approx.
Item	Connector	Terminal (Wire color)	(-)	Condition	Voltage (V) Approx.
BCM	M3	11 (LG/R)	Ground	ACC or ON	Battery voltage
BCM	M3	11 (LG/R)	Ground	OFF	0

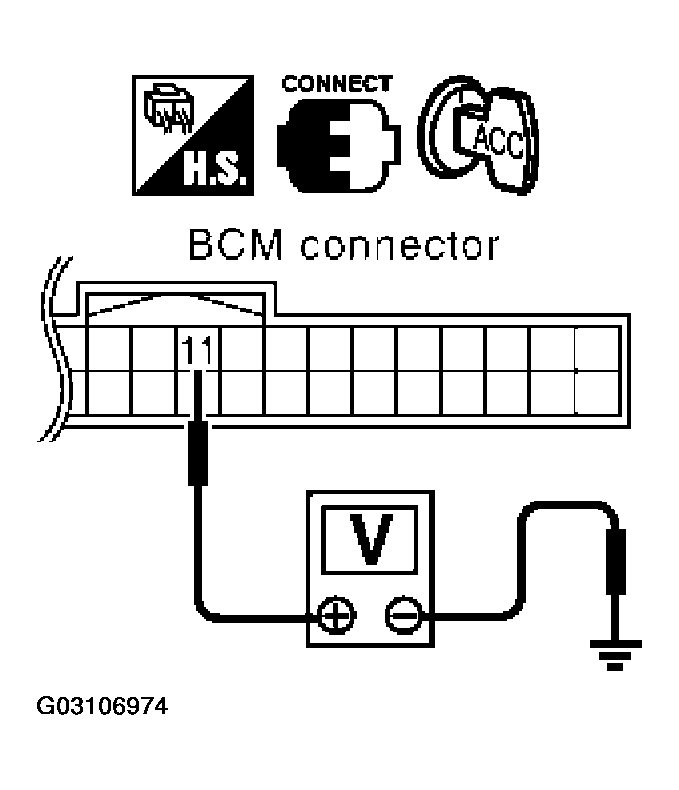

Fig 2: Checking ACC Switch Without CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
