Check Select Unlock Relay

1. Turn ignition switch OFF.
2. Disconnect passenger side select unlock relay connector.
3. Check voltage between passenger side select unlock relay connector M30 terminal 1 and ground.

   1 (L/R) - Ground: Approx. 12V

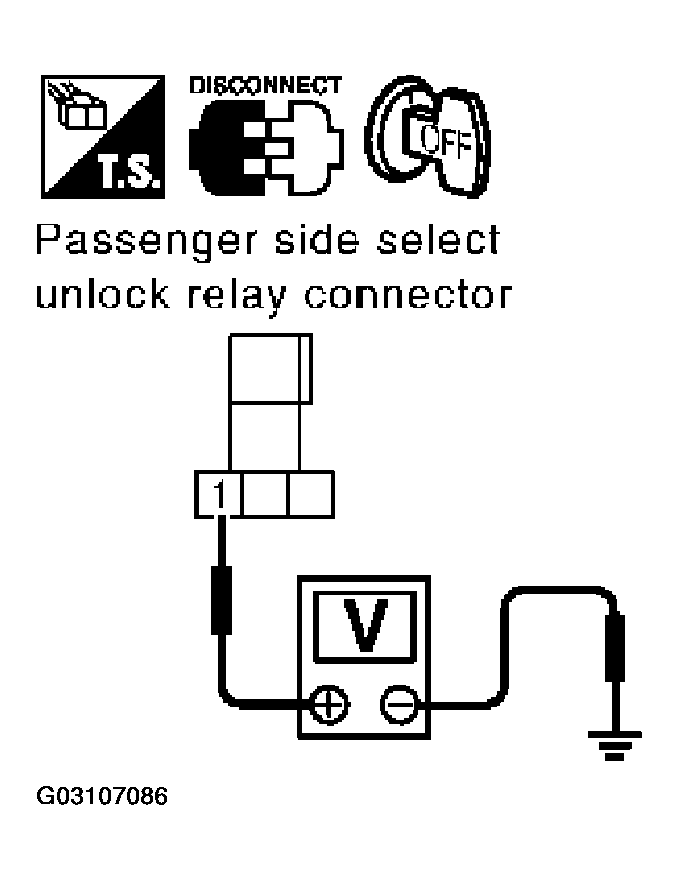

   Fig 1: Checking Select Unlock Relay Power Supply

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 2.
2. NG: Repair or replace passenger side select unlock relay power supply circuit.

1. Disconnect Intelligent Key unit connector.
2. Check continuity between passenger side select unlock relay connector M30 terminal 2 and Intelligent Key unit connector M34 terminal 40.

   2 (BR/W) - 40 (BR/W): Continuity should exist.

3. Check continuity between passenger side select unlock relay connector M30 terminal 2 and ground.

   2 (BR/W) - Ground: Continuity should not exist.

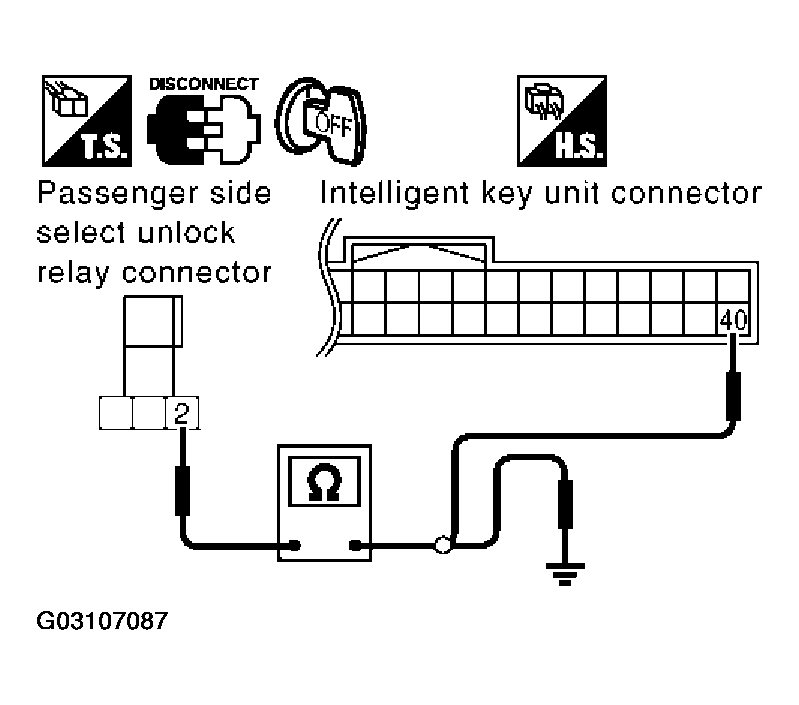

   Fig 2: Checking Harness

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Replace passenger side select unlock relay.
2. NG: Repair or replace harness between passenger side select unlock relay and Intelligent Key unit.
